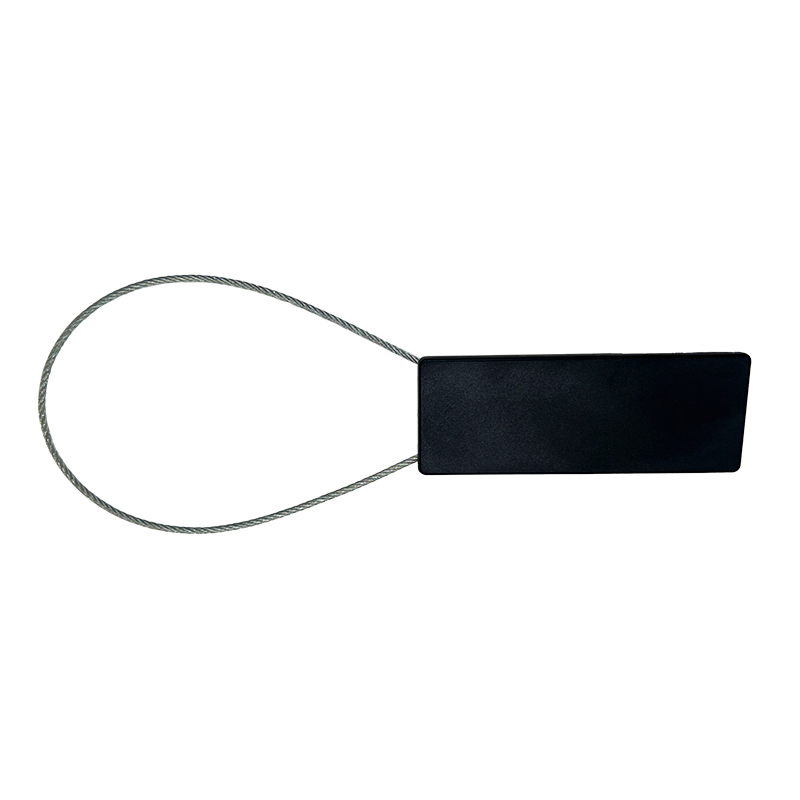

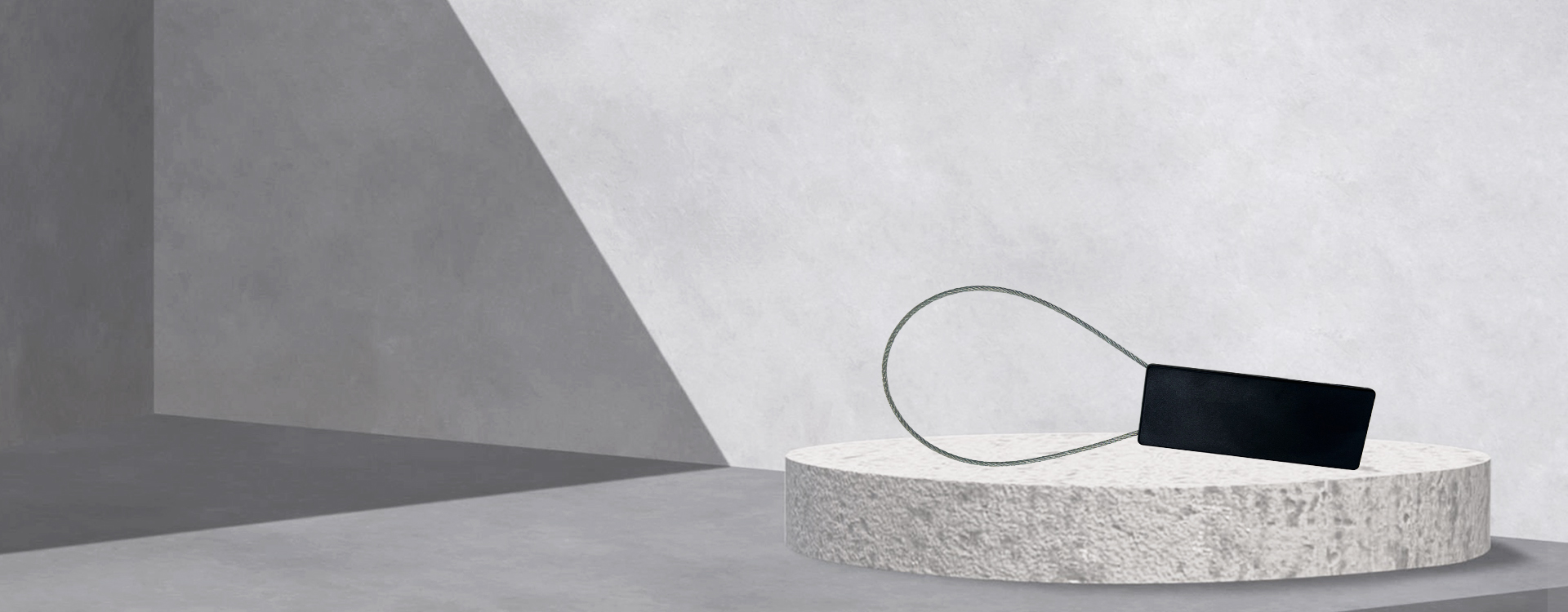

GZY-Z8030
UHF RFID Lock Seal Tags
Large-sized sealed label, with a casing size of 80×30×5mm and a weight of 20 grams. The steel wire can be customized. The farthest reading distance is 6.8 meters. It has excellent shock resistance and environmental adaptability, and is suitable for high-strength sealed applications in industries such as logistics and energy.
/
Micro anti - metal RFID tag
Features
-
Steel Cable Length: 300mm -
Maximum 6.8 Meters -
IP67 Protection Rating -
Steel Core Structure -
Tamper-Proof Design -
Suitable for Network Cabling
Specifications
-
Physical Features
Model GZY-Z8030
Size 80*30*5mm，Copper wire length 300mm (customizable)
Material Engineering plastic ABS + steel core
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Seal Package details 500Pcs/bags
Weight 20.0g
Colour White、Black、Blue、Red (Customized)
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9, Alien H3, H9
EPC Memory 96bit, 512bit, 688bit TID:64bit
Read distance 1-6.8m (depend on working environment)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● Container Management
● Gas Cylinder Tracking
● Warehouse Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
