GZY-P1806
FR4/PCB RFID tag for asset trcking

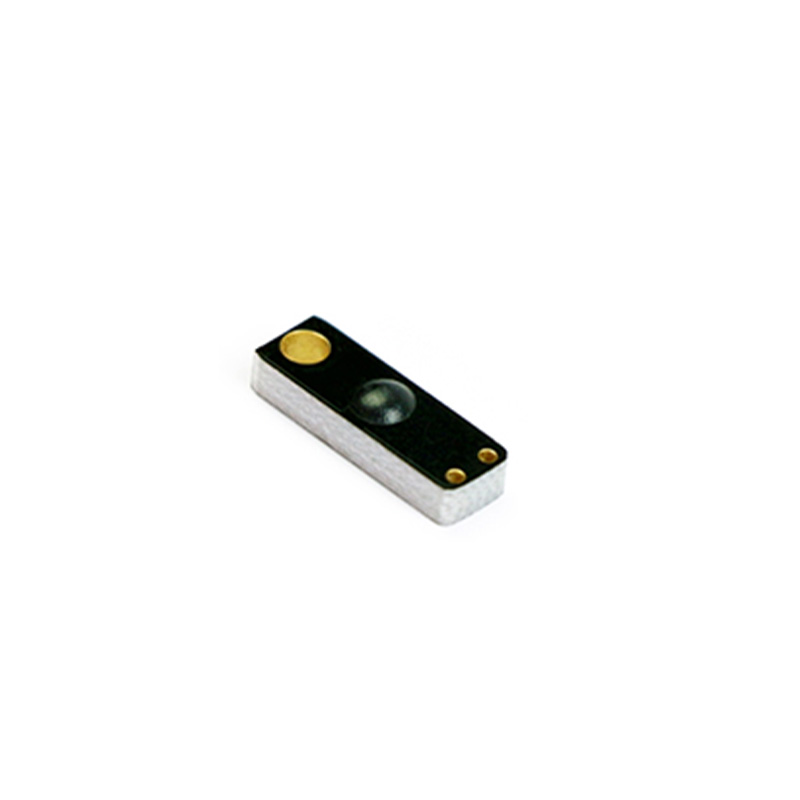

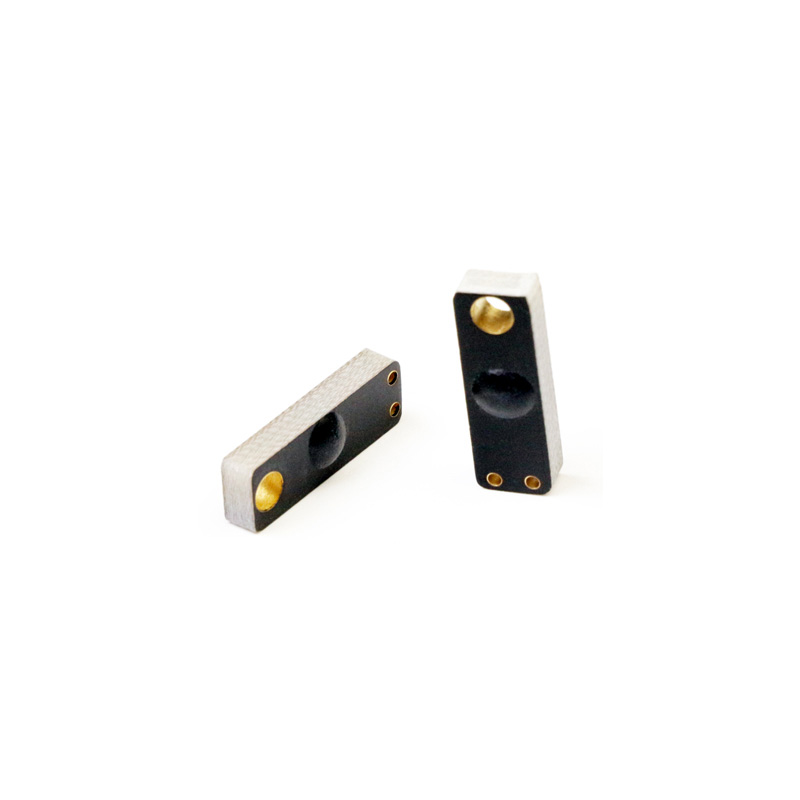

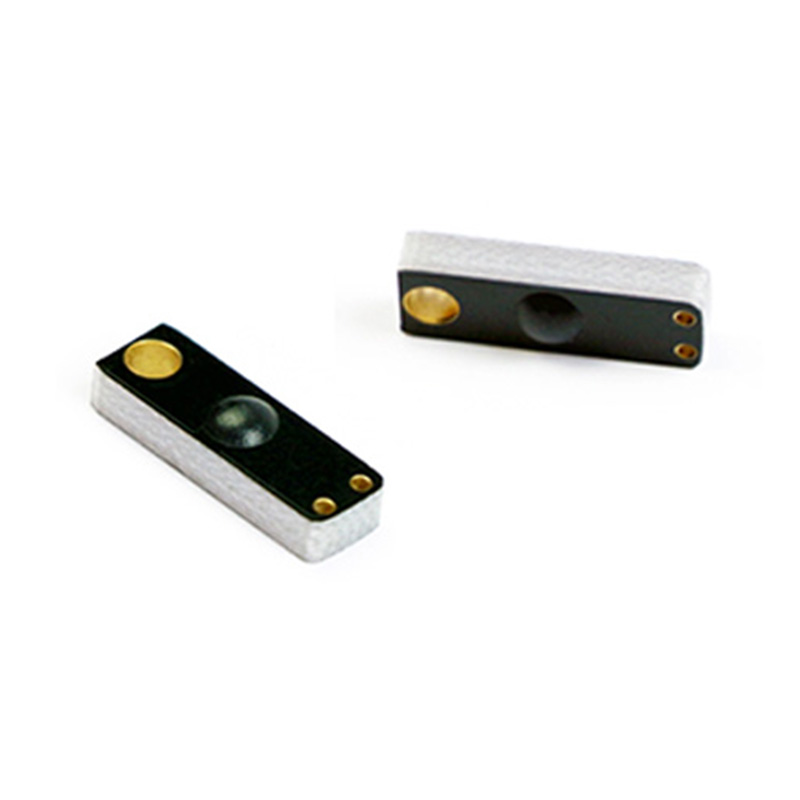

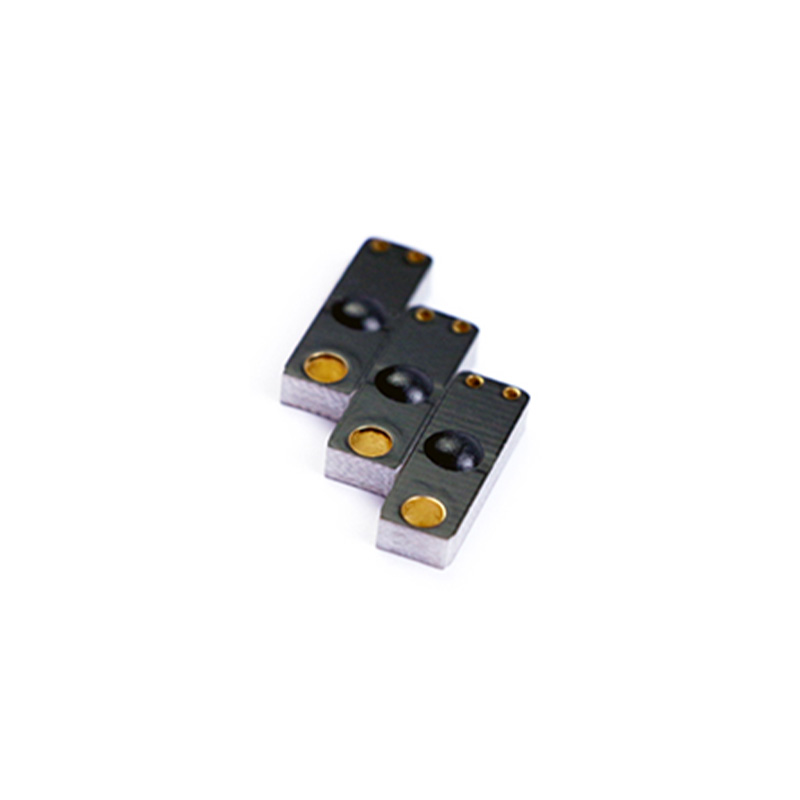

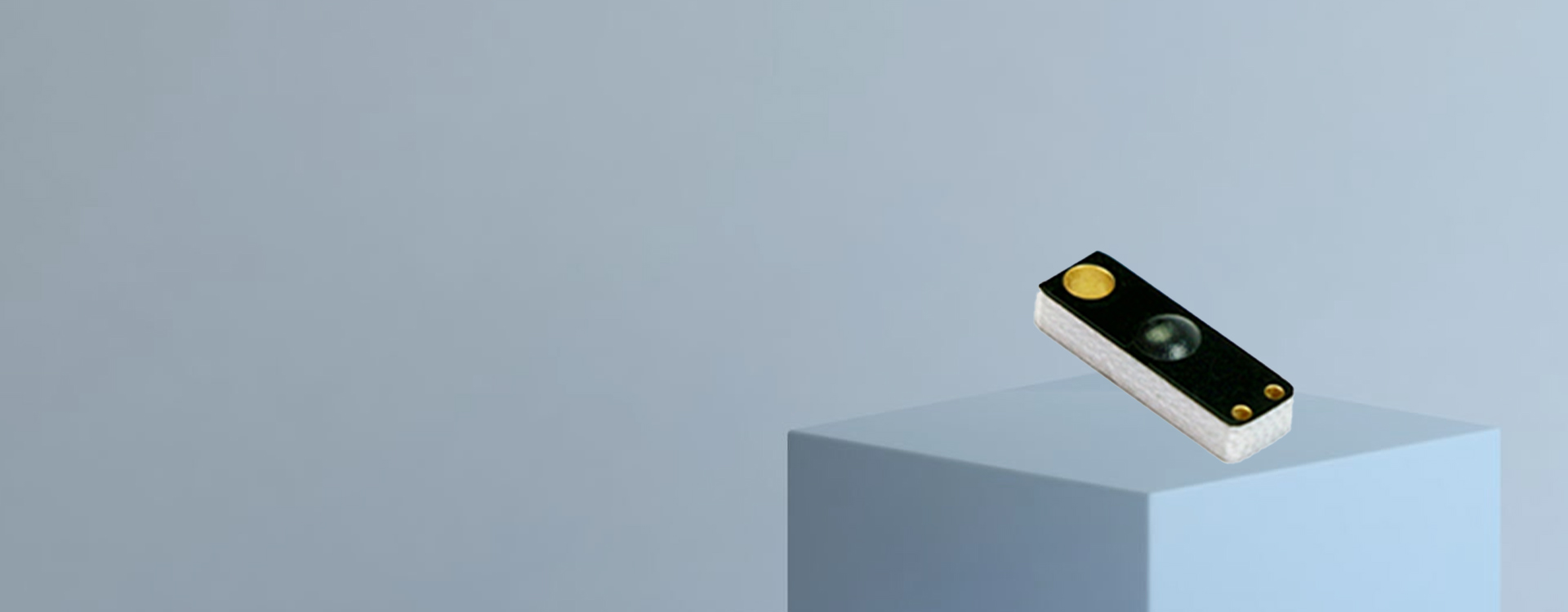

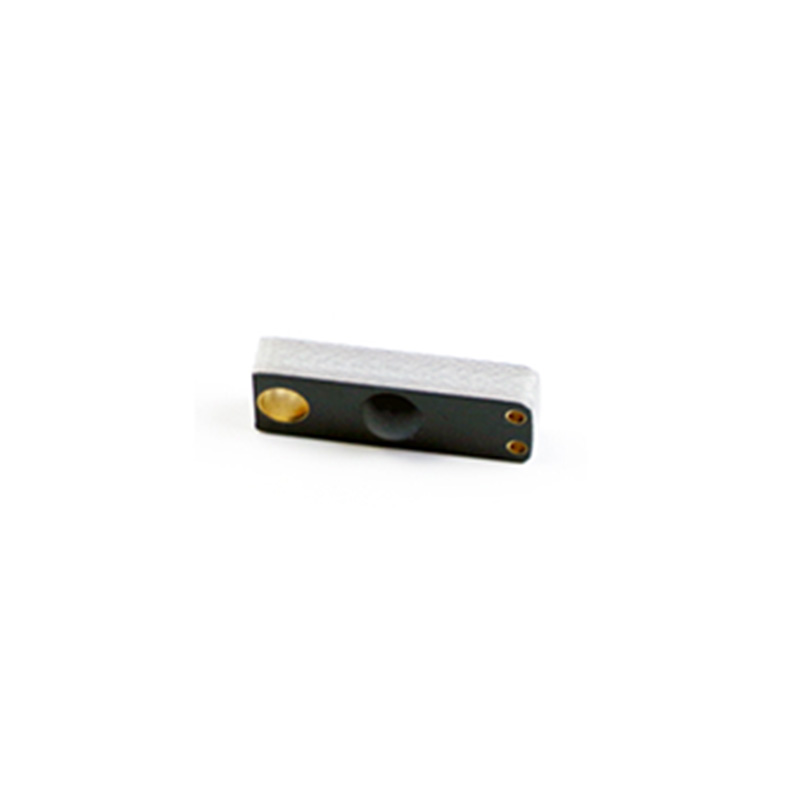

GZY-P1806 is a slender anti-metal tag with dimensions of 18×6×3mm and a weight of 1.2 grams. The metal surface recognition distance reaches 2.6 meters. It is made of FR4 material, has IP68-level protection, and can withstand temperatures ranging from -40℃ to 150℃. It is suitable for situations where there are strict restrictions on installation space such as small metal equipment, molds, firearms, etc.
/
Micro anti - metal RFID tag
Features
-
Dimensions 18x6mm -
up to 2.6 Meters -
Adhesive & Embedded -
Chip Rewrite Cycles ≥100,000 -
Drop Test Certified -
Suitable for Tool Management
Specifications
-
Physical Features
Model GZY-P1806
Size 18mmx6mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 1.2g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.6m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
