Industrial GZY-R6535 mount on metal asset tracking tags
GZY-R6535 RFID Tags

RFID Industrial Asset Tracking Tags

Engineered for IT and warehouse environments, the GZY-R6535 are IP68-rated asset tracking tags designed for metal surfaces. Measuring 65x35x1.25mm, they feature NXP or Impinj chips, delivering a 1-7.5m read range. Compatible with Zebra and SATO printers, these passive RFID chip labels streamline industrial inventory management.
Front view of GZY-R6535 printable asset tracking tags

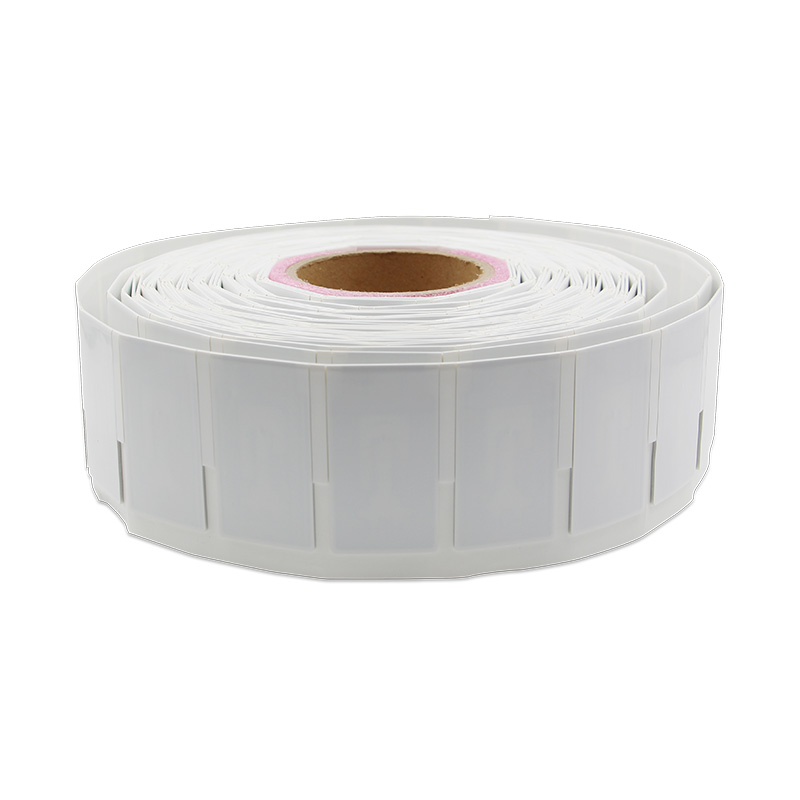

  • Front view of GZY-R6535 printable asset tracking tags
  • GZY-R6535 RFID chip labels mounted on metal IT equipment

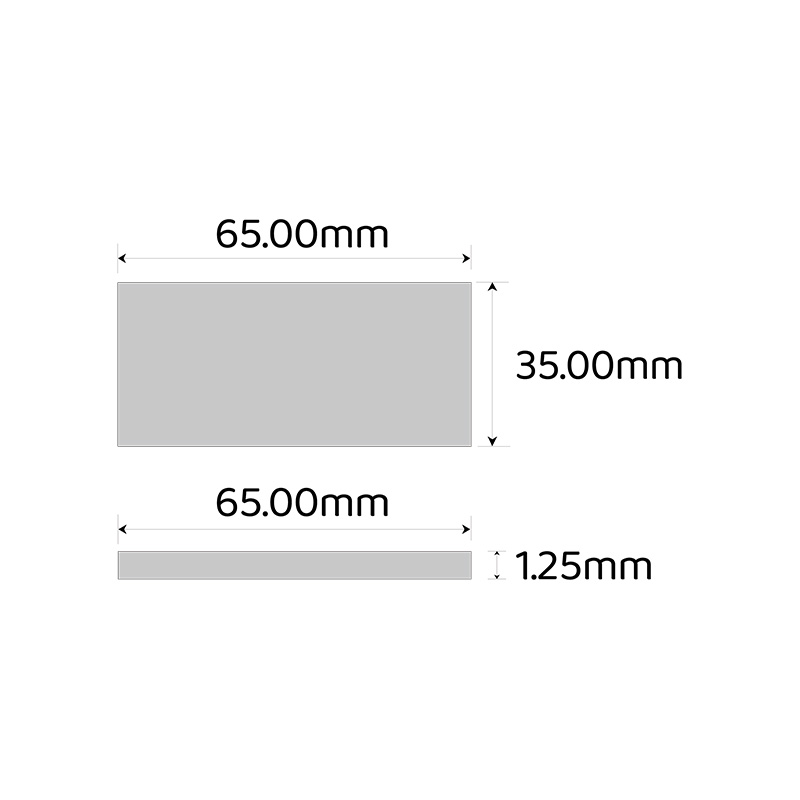

  • Dimensional layout 65x35mm of GZY-R6535 UHF RFID tags
  • Warehouse application of GZY-R6535 RFID tags for inventory management
GZY-R6535 Industrial Asset Tracking Tags
Features
  • Large Size 65x35mm
  • Metal Surface 7.5 Meters
  • Multiple Environmental Tests Passed
  • Memory Expandable
  • Compatible with Industrial Printers
  • Durable Adhesive
Get Quote
Specifications
  • Physical Features
    Model GZY-R6535
    Size 65(L) x 35(W)x 1.25(H)mm
    Material PET/Aluminum Foil/Foam
    Working Temp -40~+85℃
    Storage Temp -40~+120℃
    Installation Methods 3M Adhesive
    Package details 500pcs Per roll/Small box,2000pcs/Carton
    Weight 0.85kg/Reel
    Colour White
  • RFID Features
    Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
    Working Frequency 865-868Mhz, 902-928Mhz(Customized)
    Chip Type NXP Ucode 8, 9,Impinj M730
    EPC Memory 96-128bit, TID:64bit
    Read distance 1-7.5m, On Metal Surfaces (depend on reader performance)
    Re-Write >100,000times
    Data Storage >10 years
  • Others Features
    Application ● IT Asset Management
    ● Production line Management
    ● Medical Equipment Management
    ● Fixed Asset Management
    optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
    IP Rating IP68
    Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
Applications
Warehouse Asset Management
RFID Warehouse Entry and Exit Management
Modern warehouses face efficiency and accuracy challenges with manual and barcode-based methods. Ultra-high frequency RFID enables contactless, automatic identification of goods, streamlining inbound/outbound management, reducing errors, accelerating inventory checks, and supporting digital transformation.
View Details
Warehouse Asset Management
RFID Fixed Asset Management
In the current era where the digital wave is sweeping the globe, fixed asset management in offices has become a crucial aspect for the efficient operation of enterprises. Traditional manual recording and barcode management methods suffer from low efficiency, prone to human errors in data entry, and difficulty in real-time monitoring of asset status. As enterprises expand in scale and the number of assets increases, these problems become increasingly prominent, severely restricting the improvement of management efficiency and resulting in a decrease in asset utilization rate.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
View Details
Tool and Equipment Management
RFID tool identification
Traditional management of tools and equipment is plagued by low efficiency, high error rates, and poor real-time performance, which adversely affects production and costs in enterprises. Ultra-high frequency RFID technology, which identifies and reads/writes data through wireless signals without physical contact, can achieve real-time location tracking, rapid inventory checks, and automatic entry and exit from storage for tools and equipment, thereby enhancing the level of intelligent management.
View Details
Tool and Equipment Management
RFID Inspection Management for Industrial Equipment
Traditional paper-based inspection and barcode scanning are slow, error-prone, and lack real-time visibility. Implementing UHF RFID technology enables automated data collection and transmission, supporting equipment management and improving operational efficiency.
View Details
