FR4 PCB RFID tracker mounted on industrial metal assets
UHF RFID Asset Tracker for Metal Equipment

Embedded RFID Tracking for Industrial Assets

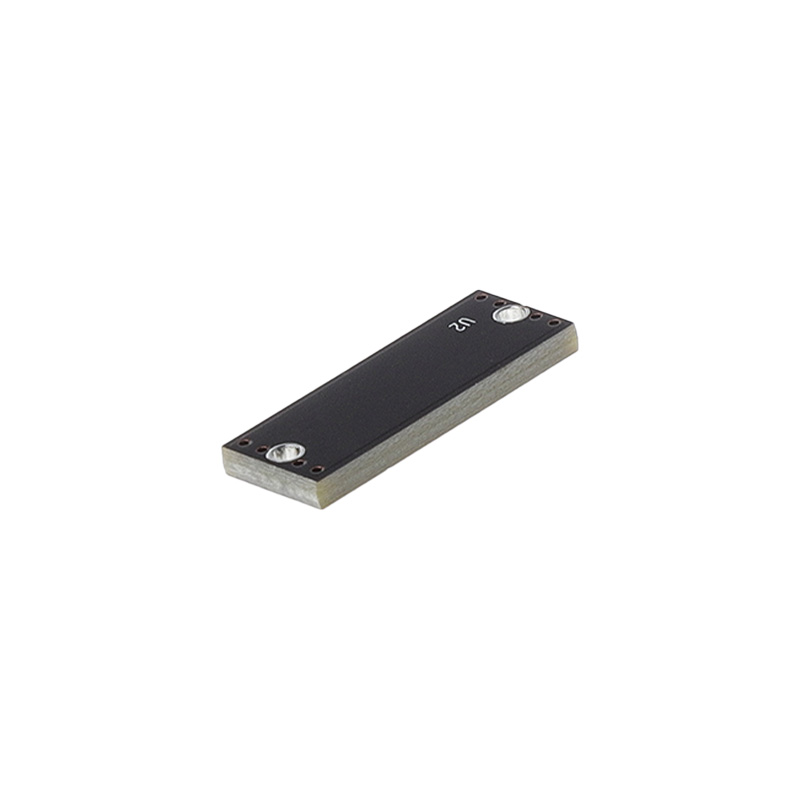

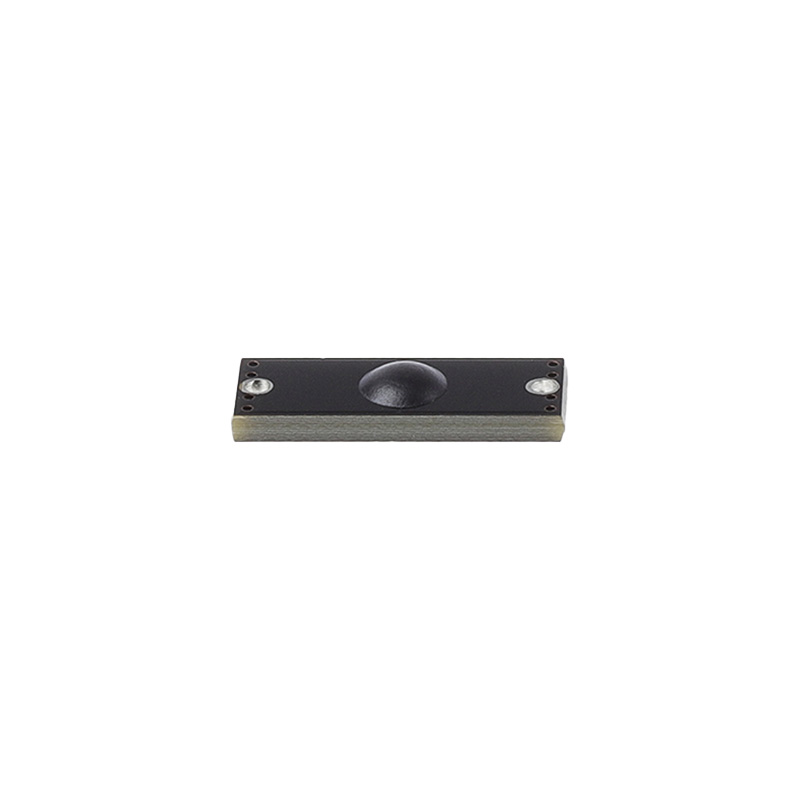

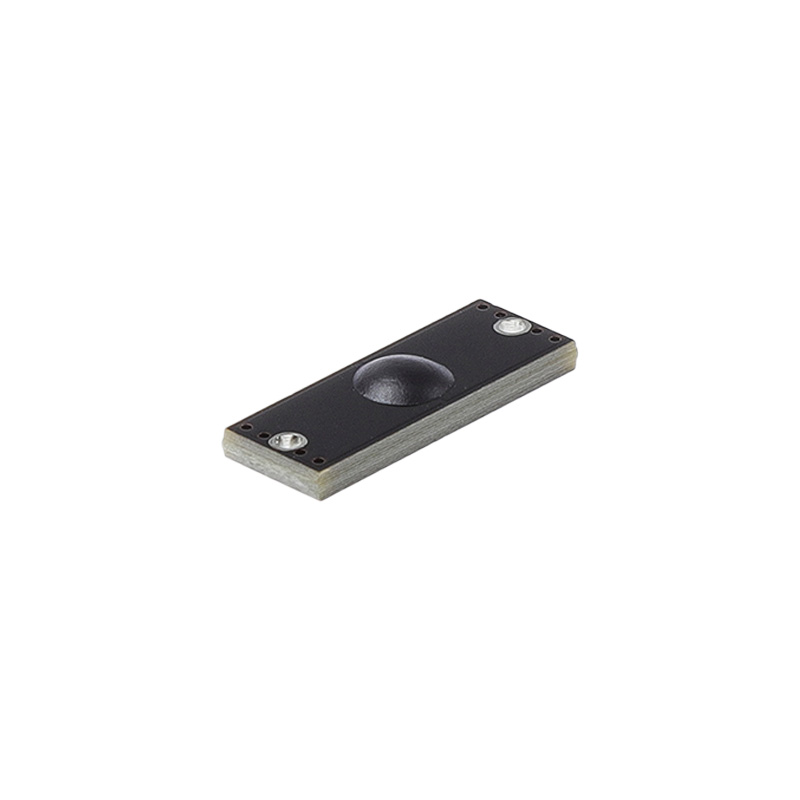

GZY-P2208 is a slim FR4 PCB UHF RFID asset tracker designed for metal-mount and embedded installation. Supporting EPC Class1 Gen2 and ISO 18000-6C standards, it enables stable identification for IT devices, medical equipment, production stations, and fixed industrial assets in high-temperature operating environments.
custom RFID tracker with adhesive mounting for metal assets
  • custom RFID tracker with adhesive mounting for metal assets
  • embedded RFID tag tracking solution for medical devices
  • IP68 UHF RFID asset tracker with FR4 PCB housing
  • industrial RFID tracker using NXP Ucode 8 and Ucode 9
UHF RFID Asset Tracker for Metal Mounting
Features
  • Dimensions 22x8mm
  • up to 4.5 Meters
  • IP68 Protection Rating
  • Memory Expandable
  • Multiple Environmental Tests
  • Suitable for Surgical Instruments
Get Quote
Specifications
  • Physical Features
    Model GZY-P2208

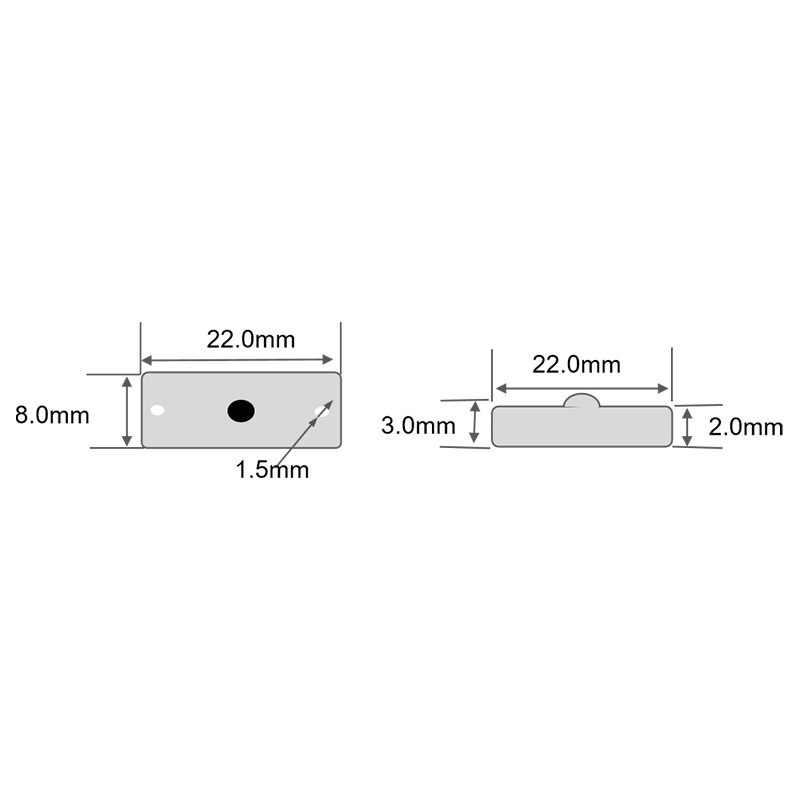

    Size 22mmx8mmxT3.0mm
    Material (FR4) PCB
    Working Temp -25~+110℃
    Storage Temp -40~+85℃
    Installation Methods Adhesive or embedded
    Package details 500Pcs/bags
    Weight 1.3g
    Colour Black
  • RFID Features
    Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
    Working Frequency 865-868Mhz, 902-928Mhz(Customized)
    Chip Type NXP Ucode 8, Ucode 9
    EPC Memory 96-128bit, TID:64bit
    Read distance 0.1-4.5m (depend on reader performance)
    Re-Write >100,000times
    Data Storage >10 years
  • Others Features
    Application ● IT Asset Management
    ● Production line Management
    ● Medical Equipment Management
    ● Fixed Asset Management
    optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
    IP Rating IP68
Applications
Warehouse Asset Management
RFID Warehouse Entry and Exit Management
Modern warehouses face efficiency and accuracy challenges with manual and barcode-based methods. Ultra-high frequency RFID enables contactless, automatic identification of goods, streamlining inbound/outbound management, reducing errors, accelerating inventory checks, and supporting digital transformation.
View Details
Warehouse Asset Management
RFID Fixed Asset Management
In the current era where the digital wave is sweeping the globe, fixed asset management in offices has become a crucial aspect for the efficient operation of enterprises. Traditional manual recording and barcode management methods suffer from low efficiency, prone to human errors in data entry, and difficulty in real-time monitoring of asset status. As enterprises expand in scale and the number of assets increases, these problems become increasingly prominent, severely restricting the improvement of management efficiency and resulting in a decrease in asset utilization rate.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
View Details
