Micro Passive UHF RFID Anti-Metal Tag
Features
-

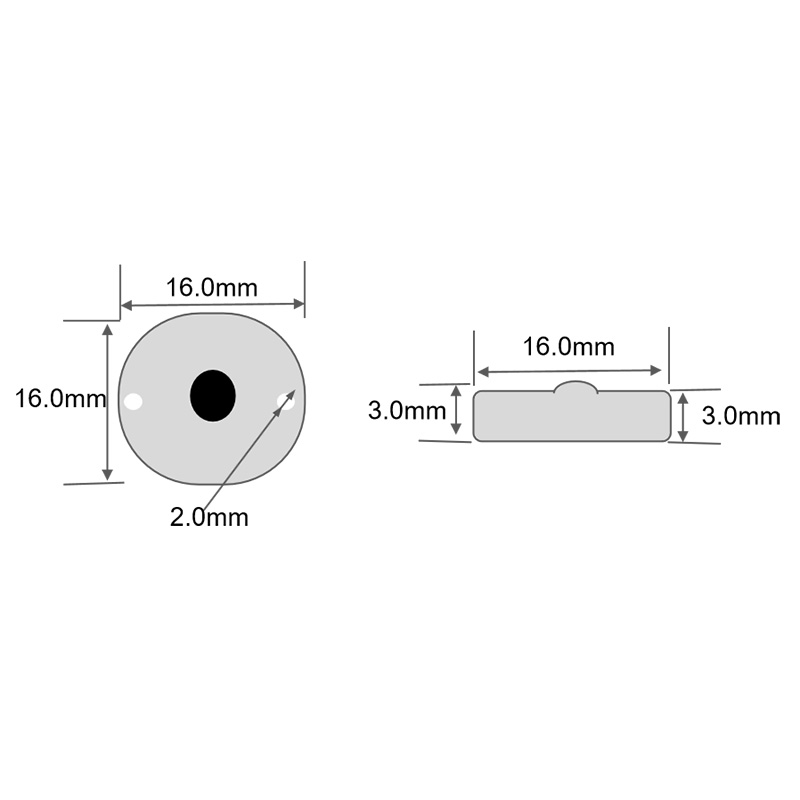

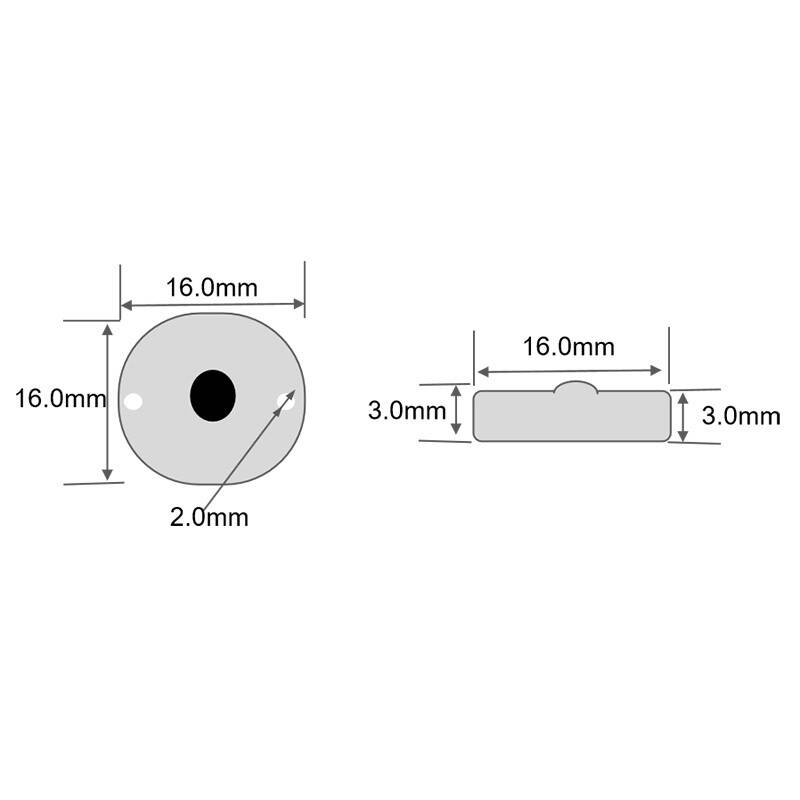

Circular Design 16x16mm -
up to 2.6 Meters -
Flexible Installation -
NXP UCODE8 -
Ideal for Mold Management -
Impact and Corrosion Resistant
Specifications
-
Physical Features
Model GZY-P1309
Size 13mmx9mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.7g
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.5m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
Warehouse Asset Management
RFID Warehouse Entry and Exit Management
Modern warehouses face efficiency and accuracy challenges with manual and barcode-based methods. Ultra-high frequency RFID enables contactless, automatic identification of goods, streamlining inbound/outbound management, reducing errors, accelerating inventory checks, and supporting digital transformation.
View Details
Warehouse Asset Management
RFID Fixed Asset Management
In the current era where the digital wave is sweeping the globe, fixed asset management in offices has become a crucial aspect for the efficient operation of enterprises. Traditional manual recording and barcode management methods suffer from low efficiency, prone to human errors in data entry, and difficulty in real-time monitoring of asset status. As enterprises expand in scale and the number of assets increases, these problems become increasingly prominent, severely restricting the improvement of management efficiency and resulting in a decrease in asset utilization rate.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
View Details
Tool and Equipment Management
RFID tool identification
Traditional management of tools and equipment is plagued by low efficiency, high error rates, and poor real-time performance, which adversely affects production and costs in enterprises. Ultra-high frequency RFID technology, which identifies and reads/writes data through wireless signals without physical contact, can achieve real-time location tracking, rapid inventory checks, and automatic entry and exit from storage for tools and equipment, thereby enhancing the level of intelligent management.
View Details
Tool and Equipment Management
RFID Inspection Management for Industrial Equipment
Traditional paper-based inspection and barcode scanning are slow, error-prone, and lack real-time visibility. Implementing UHF RFID technology enables automated data collection and transmission, supporting equipment management and improving operational efficiency.
View Details
