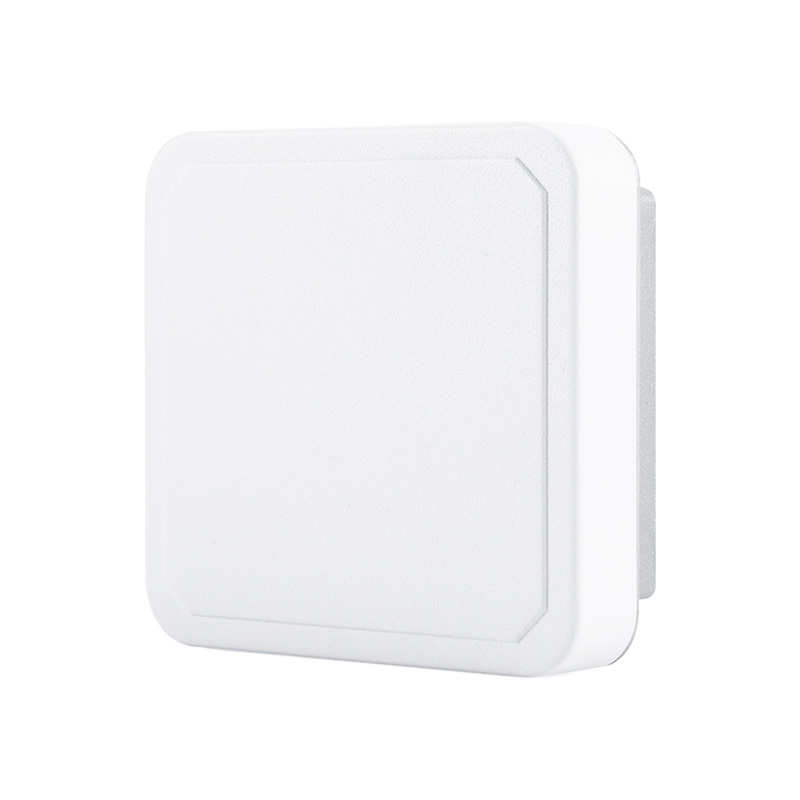

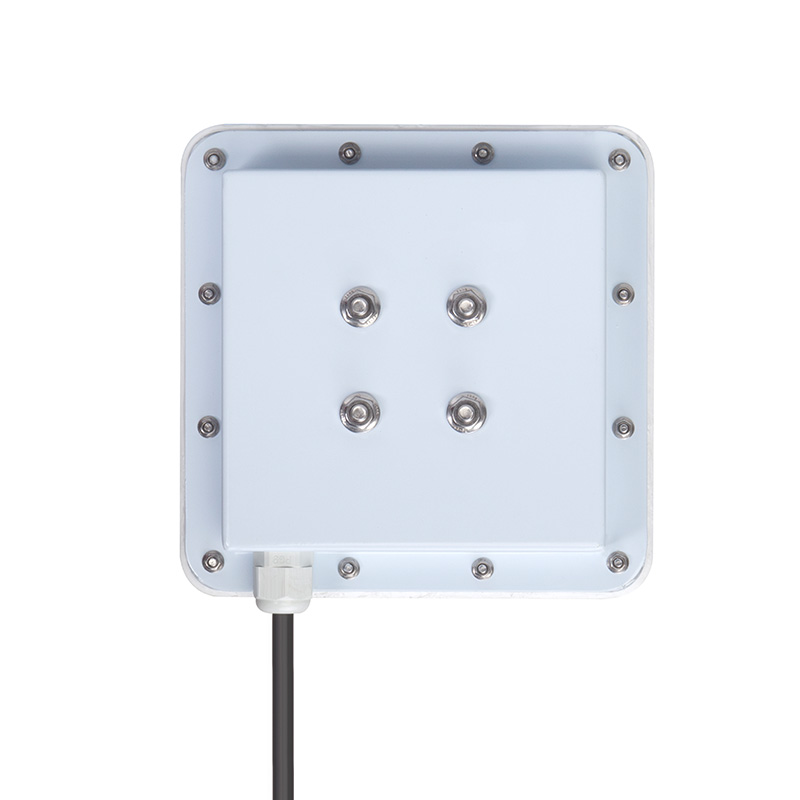

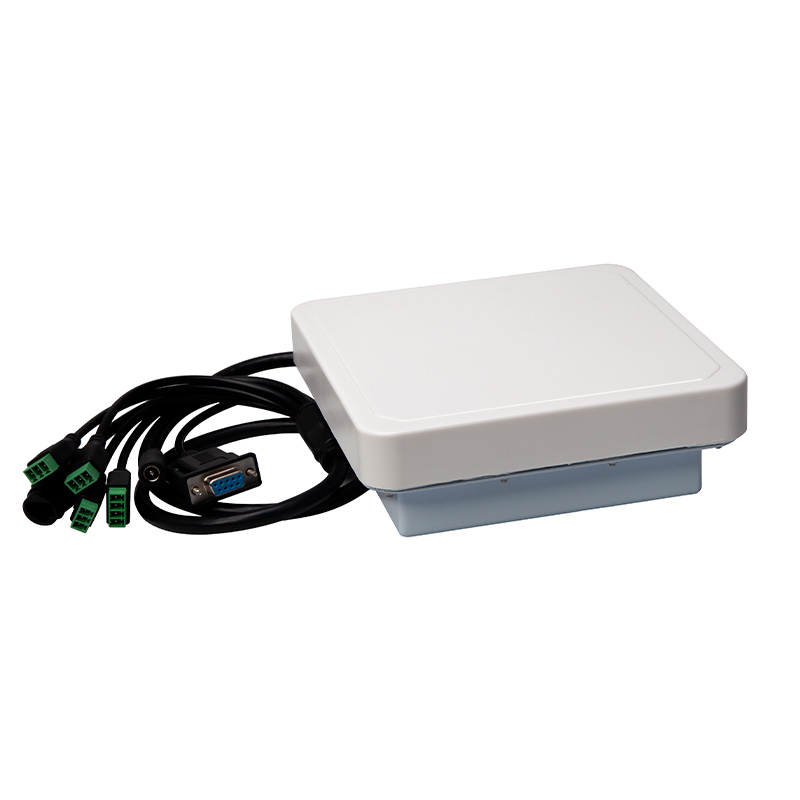

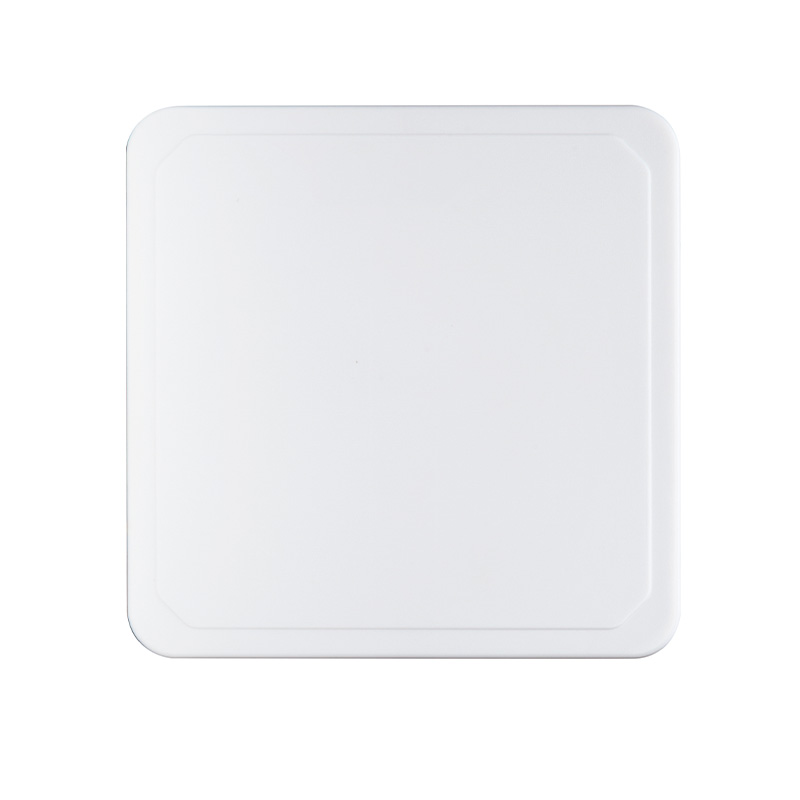

GZY-E607 Integrated UHF RFID Reader
Features
-
Impinj E710/E310 -
ISO18000-6B/6C -
IP67 -
0-33dBm in 1dBm Steps -
0-9m -
TCP/IP, RS232/485, and Wiegand26/34
Specifications
-
RFID Performance
RFID Frequency 860-865Mhz /902-928Mhz(Can be customized) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ R2000 / E710 / TM600 RF output 0 – 33 dBm(adjustable)adjustable 4dbi antenna built-in
Reading Distance 1-6m (depens on tags performance) Communication interface TCP/IP、RS232、RS485、Wiegand26/34 interface Application software interface Provide API development kit and application routines Support RSSI Support Antenna Parameters 7dBi Circularly Polarized Antenna (built-in)
Way of Working Automatic mode, trigger mode, interactive mode, etc. Input/Output (GPIO) 2-way input, 2-way output (optional) Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm
-
Physical Performance
Dimensions 139.5mm(L) x 130mm(W) x51.8mm(H) Power supply With 220V AC input, the output of +12 V/3A DC power converter Metrial ABS + aluminum alloy
Weight 1 Kg Humidity 5% to 95%, non-condensing Protection class IP67 Working temp -20℃ to +70℃ Storage temp -30℃ to +85℃ Heat dissipation method Air cooling
Applications
Tool and Equipment Management
RFID Inspection Management for Industrial Equipment
Traditional paper-based inspection and barcode scanning are slow, error-prone, and lack real-time visibility. Implementing UHF RFID technology enables automated data collection and transmission, supporting equipment management and improving operational efficiency.
View Details
Smart Port Terminal
RFID Vehicle Identification and Management
The number of vehicles has increased significantly. The traditional identification and management methods are inefficient, prone to errors, and highly affected by the environment. RFID ultra-high frequency technology, as a non-contact automatic identification technology, has advantages such as long-distance identification and fast reading. By installing electronic tags on vehicles and using reading and writing devices to process information, vehicle automation and precise management can be achieved. It is applicable to multiple scenarios such as parking lots, parks, and mines.
View Details
Smart Port Terminal
RFID Port Entry and Exit Management
The growth of global trade has led to a significant increase in port cargo and vehicles. Traditional management methods are inefficient and prone to errors, making it difficult to meet the demands. RFID ultra-high frequency technology, with its advantages of long-range identification and fast reading, has become an effective solution to the problems in port vehicle management. It can enhance operational efficiency, reduce costs, and improve the level of intelligence.
View Details
Personnel Location Management
RFID personnel entry and exit and security management
Traditional personnel management is plagued by difficulties in identifying personnel identities, inefficient attendance recording, difficult monitoring, and delayed accountability tracing. Ultra-high frequency RFID technology, with its capabilities of long-distance identification, rapid reading of multiple tags, and strong environmental adaptability, achieves dynamic personnel management through the cooperation of tags and reading devices, enhancing the intelligence and security of management.
View Details
