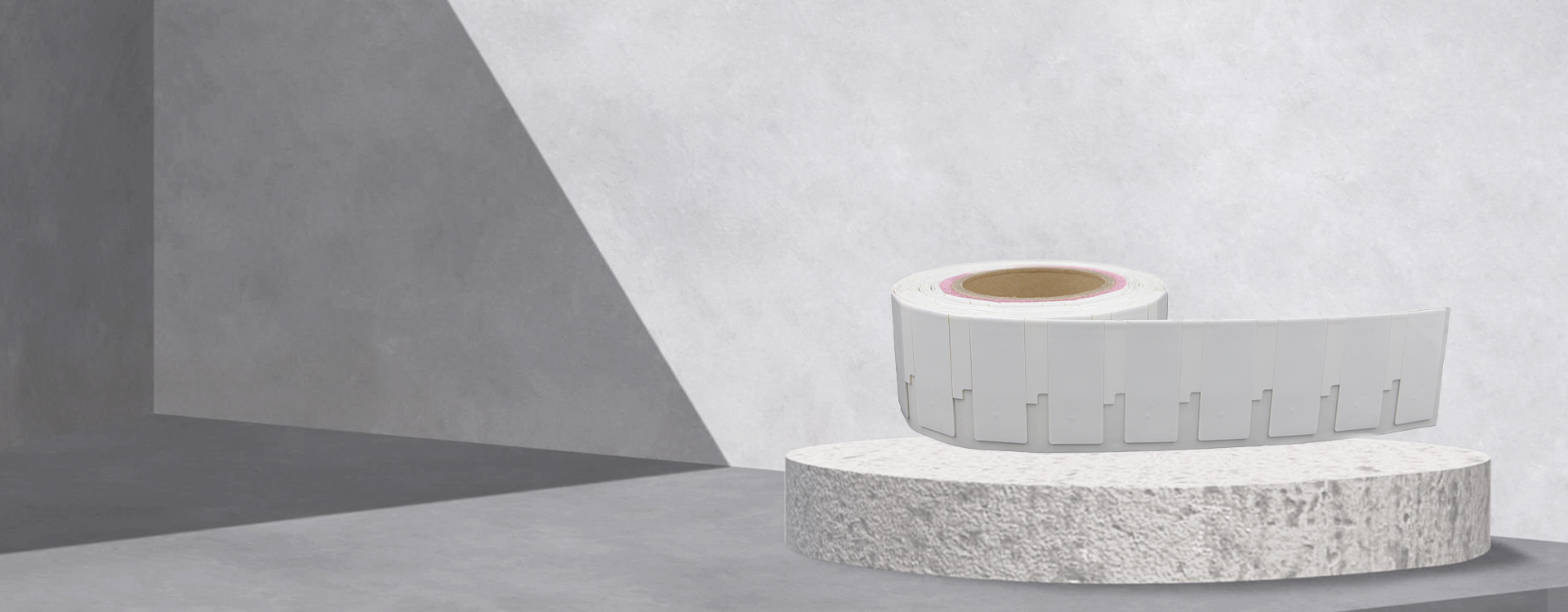

industrial printable anti metal RFID label mounted on metal equipment
Printable UHF Anti-Metal RFID Label

Stable RFID Tracking on Metal Surfaces

The GZY-R6025 is a printable UHF anti-metal RFID label engineered for industrial asset tracking and metal surface identification. Featuring EPC Class1 Gen2 protocol support, IP68 protection, and stable read performance up to 7 meters on metal surfaces, it is designed for warehouse, IT asset, and production line management applications.

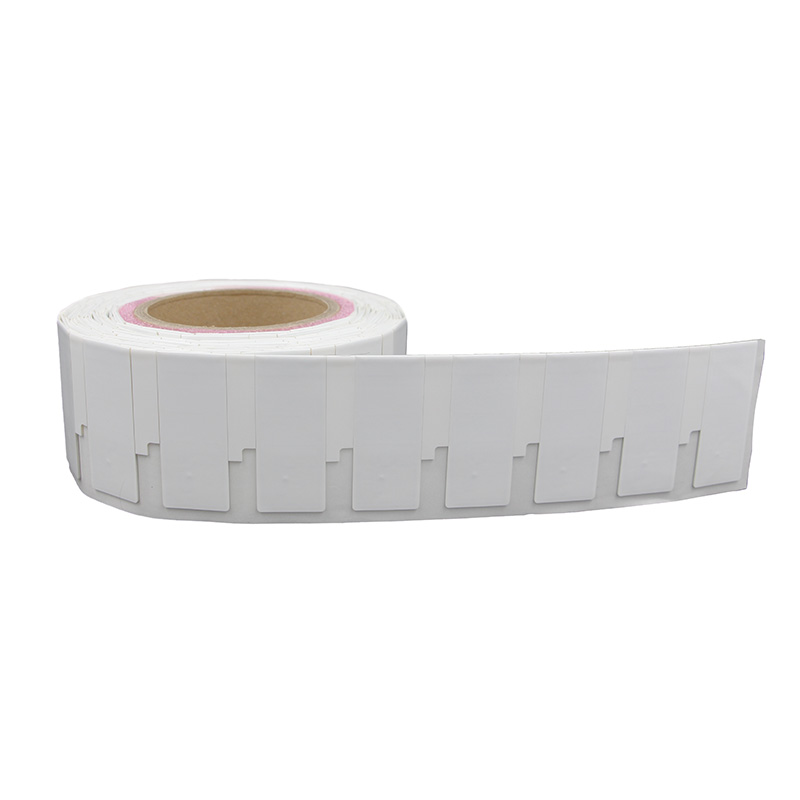

GZY-R6025 printable anti metal RFID tag front view
  • GZY-R6025 printable anti metal RFID tag front view

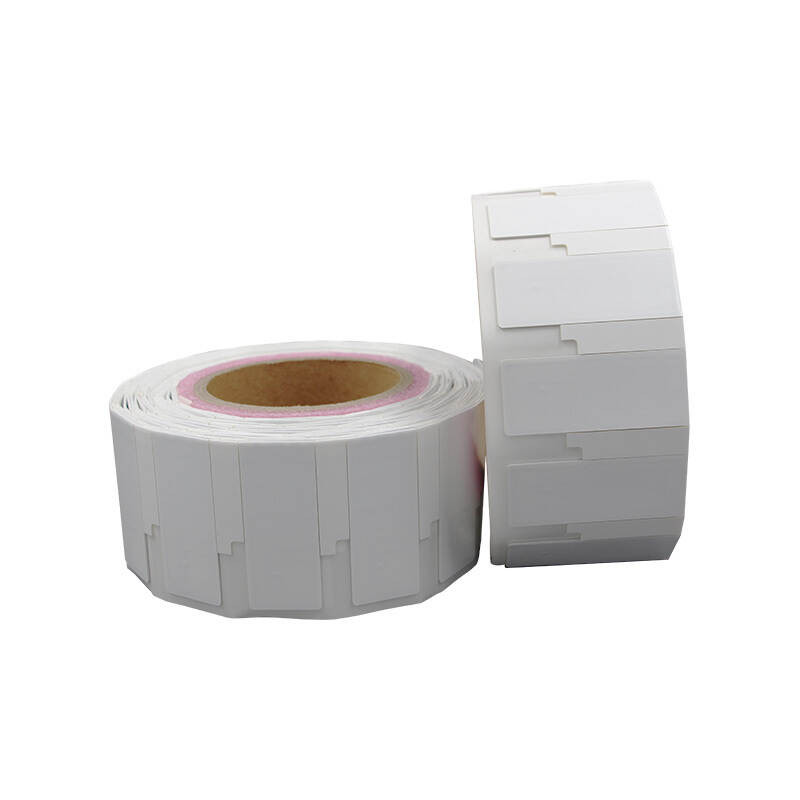

  • UHF RFID label for metal asset identification

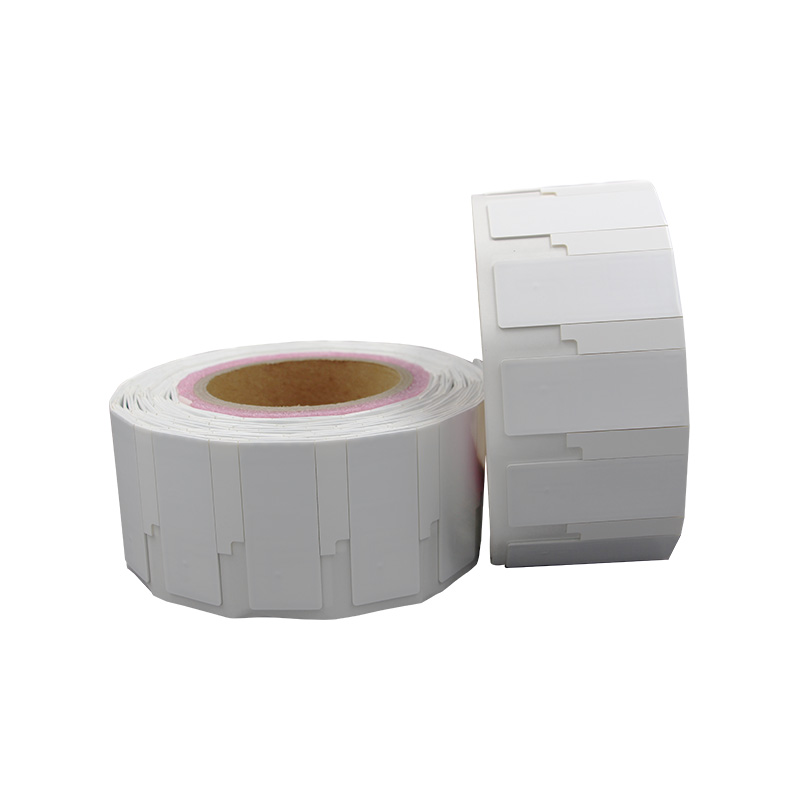

  • industrial RFID anti metal label with 3M adhesive
GZY-R6025 Printable UHF Anti-Metal RFID Label
Features
  • Large Size: 60x25mm
  • Metal Surface: 5.0 Meters
  • Industrial Endurance Test Certified
  • Multiple Customizable Chip Options
  • Wide Operating Temperature Range
  • Multi-environment Adhesive Tape
Get Quote
Specifications
  • Physical Features
    Model GZY-R6025

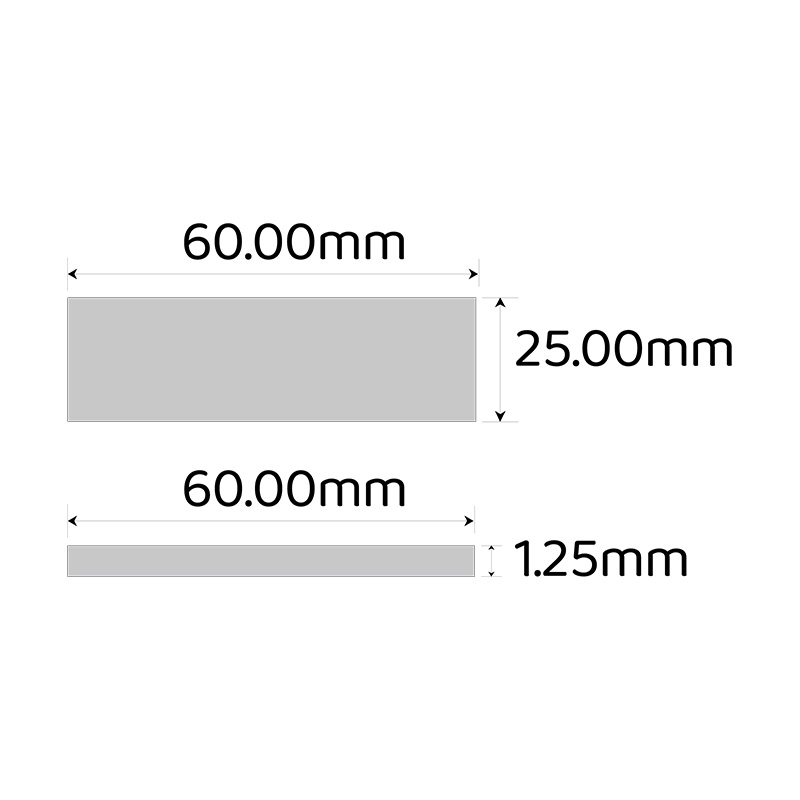

    Size 60(L) x 25(W)x 1.25(H)mm
    Material PET/Aluminum Foil/Foam
    Working Temp -40~+85℃
    Storage Temp -40~+120℃
    Installation Methods 3M Adhesive
    Package details 500pcs Per roll/Small box,2000pcs/Carton
    Weight 0.85kg/Reel
    Colour White
  • RFID Features
    Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
    Working Frequency 865-868Mhz, 902-928Mhz(Customized)
    Chip Type NXP Ucode 8, 9,Impinj M730
    EPC Memory 96-128bit, TID:64bit
    Read distance 1-7m, On Metal Surfaces (depend on environmental conditions)
    Re-Write >100,000times
    Data Storage >10 years
  • Others Features
    Application ● IT Asset Management
    ● Production line Management
    ● Medical Equipment Management
    ● Fixed Asset Management
    optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
    IP Rating IP68
    Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
Applications
Warehouse Asset Management
RFID Warehouse Entry and Exit Management
Modern warehouses face efficiency and accuracy challenges with manual and barcode-based methods. Ultra-high frequency RFID enables contactless, automatic identification of goods, streamlining inbound/outbound management, reducing errors, accelerating inventory checks, and supporting digital transformation.
View Details
Warehouse Asset Management
RFID Fixed Asset Management
In the current era where the digital wave is sweeping the globe, fixed asset management in offices has become a crucial aspect for the efficient operation of enterprises. Traditional manual recording and barcode management methods suffer from low efficiency, prone to human errors in data entry, and difficulty in real-time monitoring of asset status. As enterprises expand in scale and the number of assets increases, these problems become increasingly prominent, severely restricting the improvement of management efficiency and resulting in a decrease in asset utilization rate.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
View Details
Tool and Equipment Management
RFID tool identification
Traditional management of tools and equipment is plagued by low efficiency, high error rates, and poor real-time performance, which adversely affects production and costs in enterprises. Ultra-high frequency RFID technology, which identifies and reads/writes data through wireless signals without physical contact, can achieve real-time location tracking, rapid inventory checks, and automatic entry and exit from storage for tools and equipment, thereby enhancing the level of intelligent management.
View Details
Tool and Equipment Management
RFID Inspection Management for Industrial Equipment
Traditional paper-based inspection and barcode scanning are slow, error-prone, and lack real-time visibility. Implementing UHF RFID technology enables automated data collection and transmission, supporting equipment management and improving operational efficiency.
View Details
