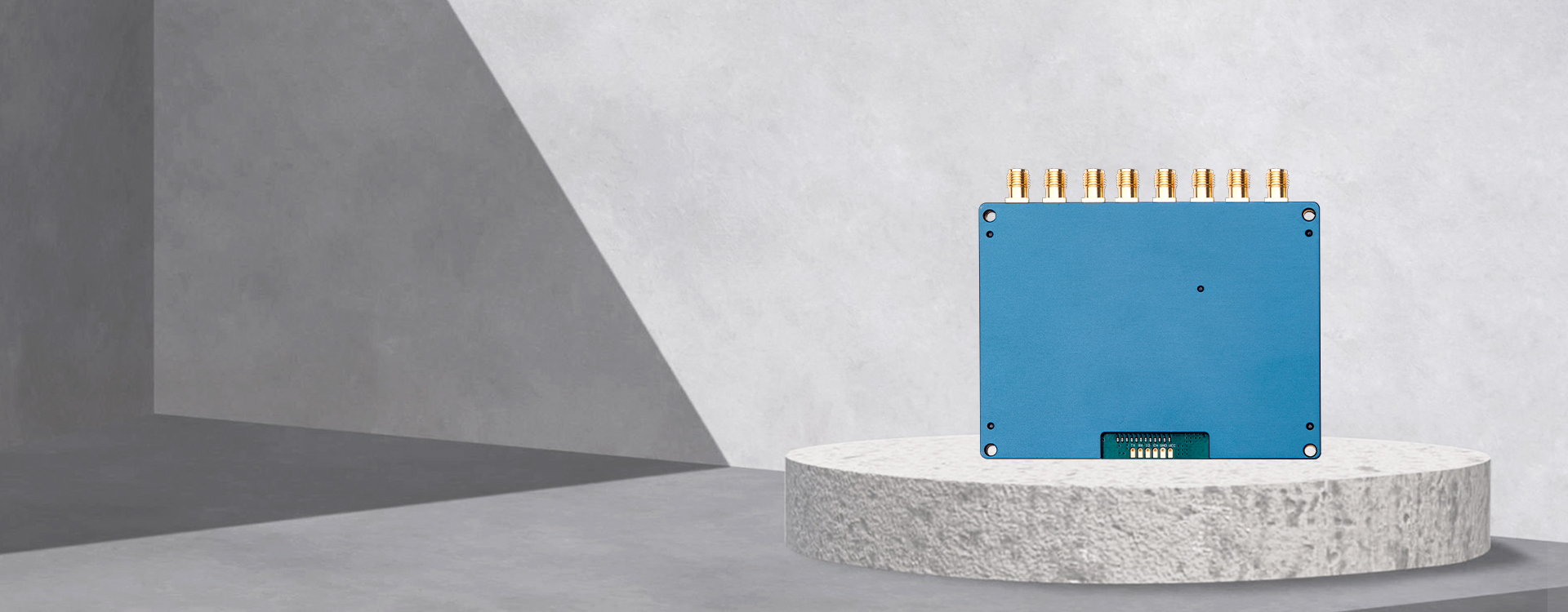

Industrial GZY-E98 IMPINJ E710 UHF RFID module board
GZY-E98 UHF RFID Module

8-Port IMPINJ E710 Integration

The GZY-E98 is an industrial 8-port UHF RFID module powered by the IMPINJ E710/R2000 chip. Engineered for OEM integration, it features an adjustable 33dBm output, >700 tags/sec read speed, and Uart 3.3V interface. Ideal for warehouse logistics, library management, and operating as an advanced radio frequency identification sensor.

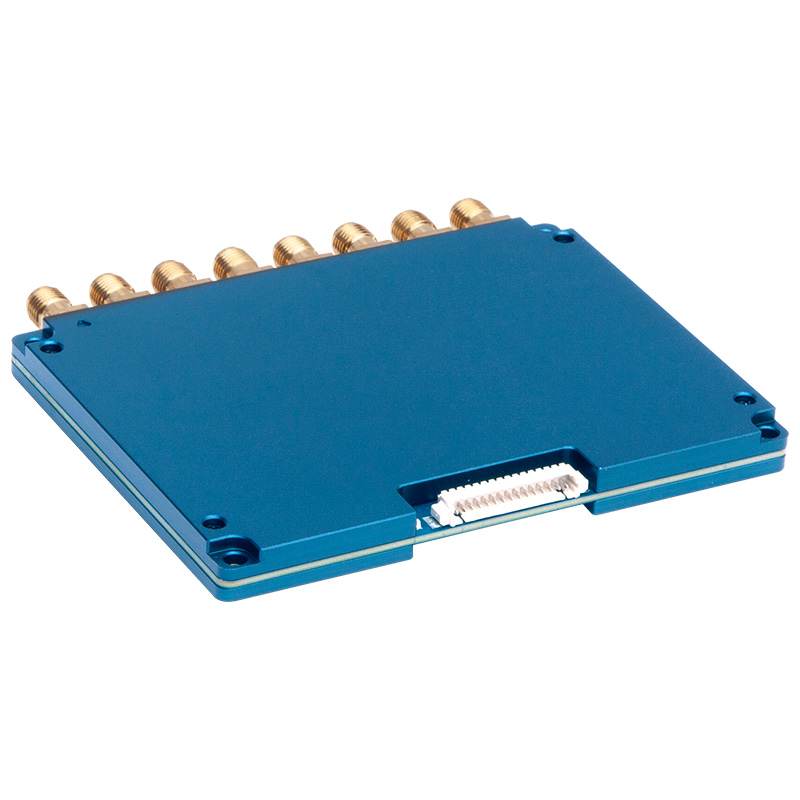

Top view of GZY-E98 8-port UHF RFID module PCB
  • Top view of GZY-E98 8-port UHF RFID module PCB

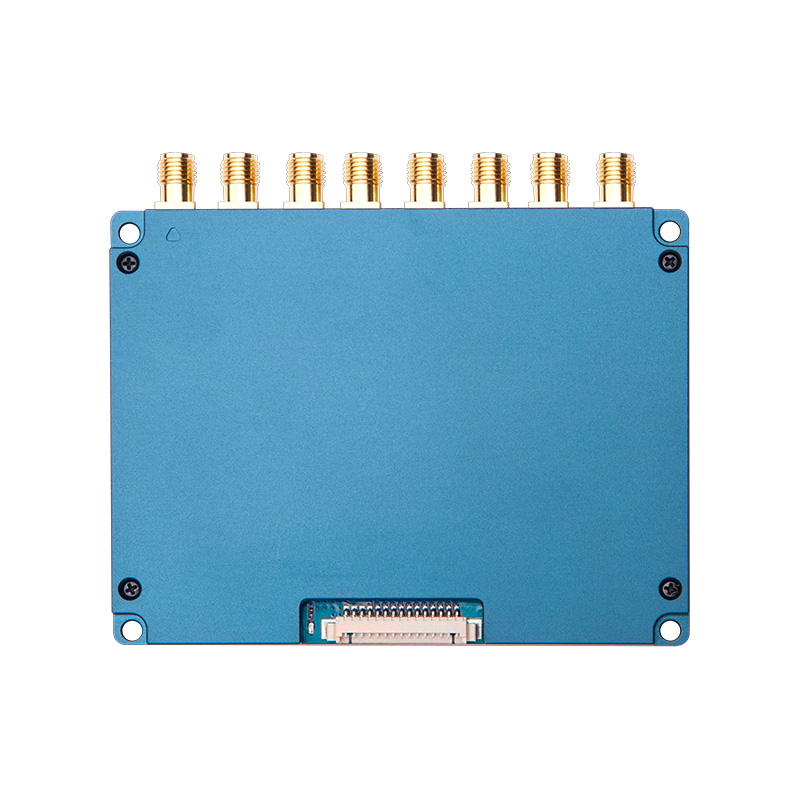

  • SMA antenna interfaces on the GZY-E98 RFID sensor board

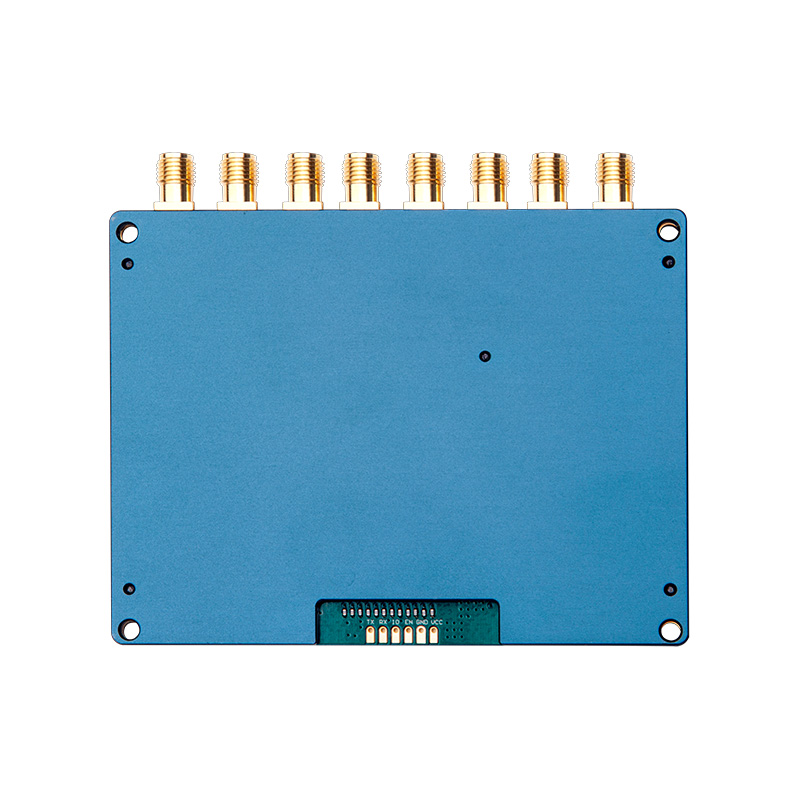

  • GZY-E98 RFID module connected via Uart 3.3V communication

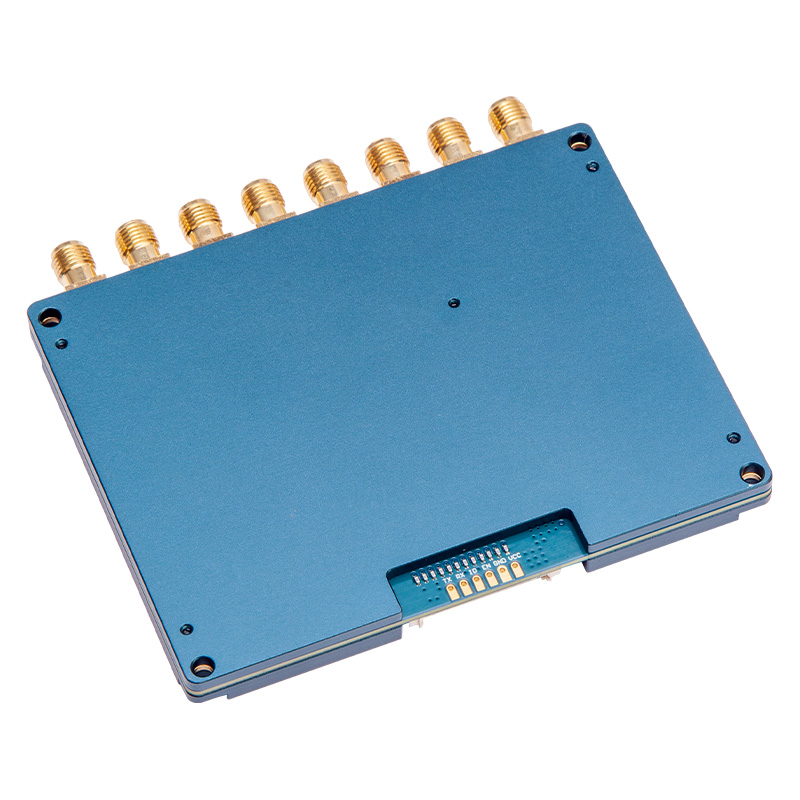

  • Dimensions 91x78.7x6.3mm of the GZY-E98 RFID reader board
GZY-E98 8-Port Embedded UHF RFID Module
Features
  • 8-Port---SMA Antenna
  • FHSS Frequency Hopping Support
  • Receiver Sensitivity: < -87dBm
  • Antenna Connection Detection
  • Lightweight: 119g
  • Voltage Input: 4.5-5.5V
Get Quote
Specifications
  • RFID Performance:
    RFID Frequency 865-868Mhz /902-928Mhz(Can be customized)
    Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
    Reader Chip IMPINJ E710 / R2000
    RF Output 0 – 30dBm(adjustable)
    Reading Distance 0-10m(depens on antenna performance)
    Support RSSI Support
    Inventory Tag Peak Speed > 700 Pcs/Second
    Label buffer 1000Pcs Tag @ 96 bit EPC
    Working Mode Standalone / Intensive
    Communication interface Uart 3.3V
    Antenna QTY 1,2,4,8 Optional SMA Antenna Interface
    Input/Output (GPIO) 2-way input, 2-way output (optional)
    Application Software interface(SDK) Supply API SDK and VC and VB, Java application routines
    Output Power Accuracy +/- 1dB
    Input Power Accuracy +/- 0.2dB
    Receiving Sensitivity < -85 dBm
  • Physical Performance:
    Dimensions 91mm(L) x78.7mm(W) x 6.3mm(H)
    RF output interface SMA type connector
    Input Voltage DC 4.6V~5.5V
    Working current 1.2A+/-10%@5V (33dBm Output, 25°C)
    Interface Connector Molex 53261-1571
    RF Connector Material Brass Gold Plated
    Shield material Gold cast aluminum
    PCB Material Rogers FR4 plated
    Wight 120g
Applications
Warehouse Asset Management
RFID Warehouse Entry and Exit Management
Modern warehouses face efficiency and accuracy challenges with manual and barcode-based methods. Ultra-high frequency RFID enables contactless, automatic identification of goods, streamlining inbound/outbound management, reducing errors, accelerating inventory checks, and supporting digital transformation.
View Details
Warehouse Asset Management
RFID Fixed Asset Management
In the current era where the digital wave is sweeping the globe, fixed asset management in offices has become a crucial aspect for the efficient operation of enterprises. Traditional manual recording and barcode management methods suffer from low efficiency, prone to human errors in data entry, and difficulty in real-time monitoring of asset status. As enterprises expand in scale and the number of assets increases, these problems become increasingly prominent, severely restricting the improvement of management efficiency and resulting in a decrease in asset utilization rate.
RFID (Radio Frequency Identification) technology, as an advanced automatic identification technology, boasts significant advantages such as non-contact reading and writing, parallel identification of multiple tags, and long-distance sensing. Applying this technology to fixed asset management in offices can effectively break through the limitations of traditional management models, achieve automated and intelligent management of fixed assets, significantly enhance management efficiency and data accuracy, and simultaneously reduce labor, material, and time costs.
View Details
Tool and Equipment Management
RFID tool identification
Traditional management of tools and equipment is plagued by low efficiency, high error rates, and poor real-time performance, which adversely affects production and costs in enterprises. Ultra-high frequency RFID technology, which identifies and reads/writes data through wireless signals without physical contact, can achieve real-time location tracking, rapid inventory checks, and automatic entry and exit from storage for tools and equipment, thereby enhancing the level of intelligent management.
View Details
Tool and Equipment Management
RFID Inspection Management for Industrial Equipment
Traditional paper-based inspection and barcode scanning are slow, error-prone, and lack real-time visibility. Implementing UHF RFID technology enables automated data collection and transmission, supporting equipment management and improving operational efficiency.
View Details
