GZY-P5010
UHF RFID Passive Metal Tag

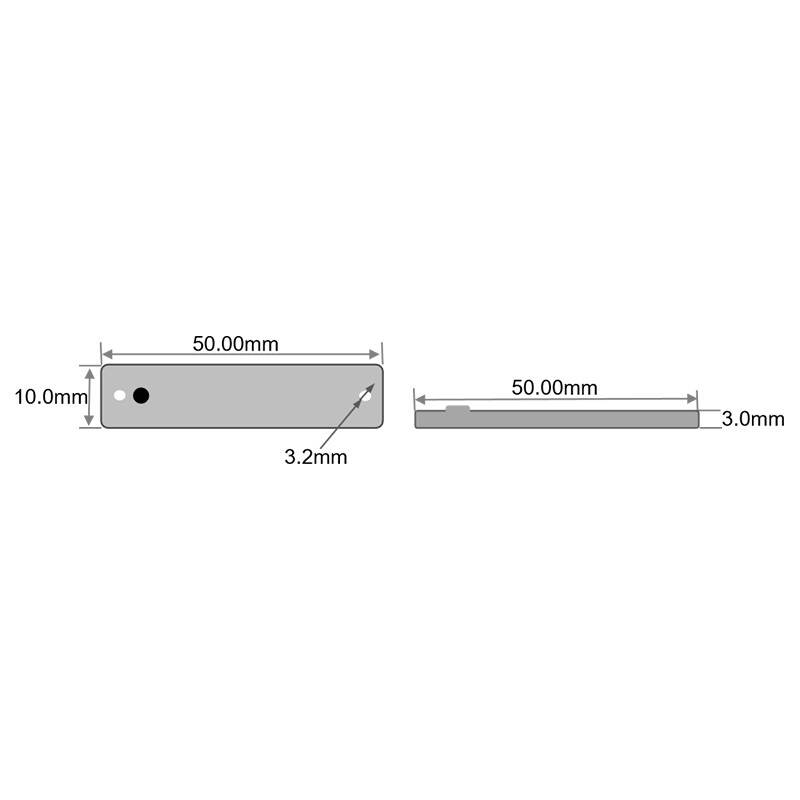

Size: 50×10mm, thickness: 3.0mm (including the chip,the thickness is 4.0mm). Three installation methods are provided: back adhesive, embedding and screws. The farthest reading distance on a metal surface is up to 5.5 meters. The performance is stable and it is suitable for metal asset management in cases such as computer cases and medium-sized equipment that require a balanced size and reading distance.
/
Micro anti - metal RFID tag
Features
-
Dimensions 50x10mm -
up to 5.5 Meters -
Resistant to Alcohol and Gasoline -
Chip Customizable -
Adhesive/Screws -
Suitable for Warehouse Shelving
Specifications
-
Physical Features
Model GZY-P5010
Size 50mmx10mmxT1mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 1.5g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.8m (depend on working environment)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
