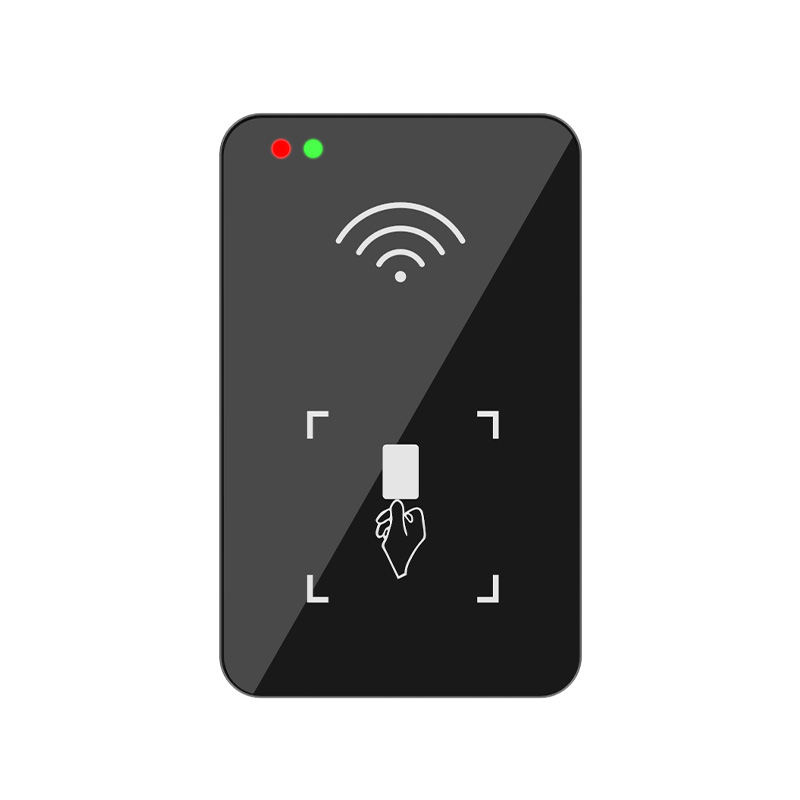

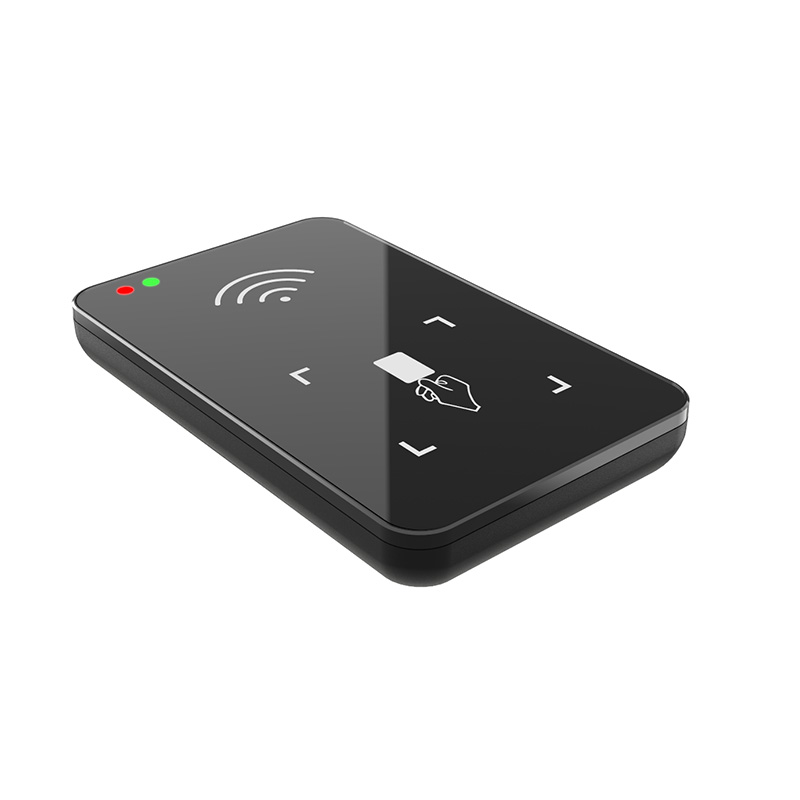

GZY-77
USB RFID Desktop Reader/Writer
GZY-77 is an ultra-high frequency desktop RFID reader specifically designed for tag information input. It adopts the USB Type-C interface and supports various driver-free working modes such as virtual keyboard and serial port, enabling quick binding between tags and data. The reading and writing distances exceed 150mm and 80mm respectively, and it has built-in encryption function. It is widely applicable in fields such as warehousing logistics, asset and archive management.
/
USB RFID Desktop Reader/Writer
Features
-
Read/Write -
USB HID Keyboard Emulation -
Low Power & Stable & Reliable, continuous -
Excel Management- Import/Export -
IEC IP52 -
Long-Term Reliability
Specifications
-
RFID Performance
Air interface ISO-18000-6B、ISO-18000-6C（EPC G2） Frequency range 865-868, 902-928MHZ（customized）
Antenna type Near-field antenna
Polarization mode Circular polarization
Communication interface USB
Application software Provide with DLL, support secondary development
Read distance 0~150mm
Write distance 0~100mm
-
Physical Performance
Dimension 139(L)*86 (W)*22(H)mm
Fuselage material ABS + Acrylic
Weight 150 g
Humidity 5% to 95%, non-condensing
Protection grade IEC IP52
Operation temperature -20 ºC to +60 ºC
Storage temperature -40 ºC to 80 ºC
Heat dissipation Air cooled
