GZY-608

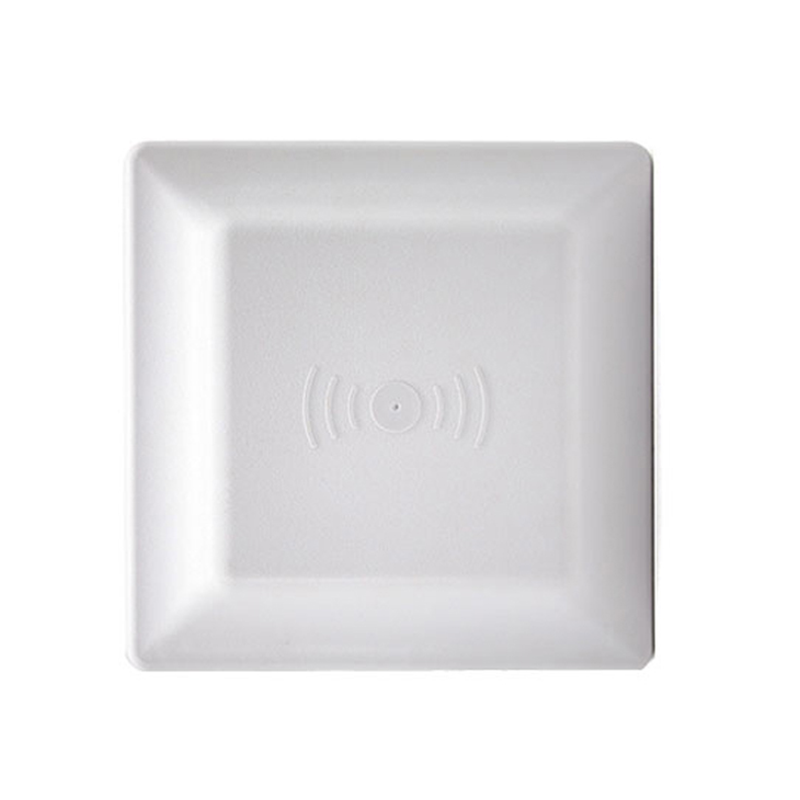

UHF RFID Reader for Car Parking 6M
The GZY-608 RFID ultra-high frequency integrated reader uses military-grade components and supports continuous stable operation 24 hours a day and 365 days a year. The entire machine has an IP65 waterproof design, with adjustable power ranging from 5 to 30 dBm, and the maximum identification distance reaches 10 meters. It is compatible with both ISO18000-6C and 6B protocols. It provides multiple interfaces such as TCP/IP and RS485, and is suitable for long-distance precise identification and con
/
UHF RFID Reader for Car Parking 6M
Features
-
24/7 Continuous Operation -
ISO18000-6B/6C -
IP65 -
Mode: Auto, Trigger, and Interactive -
10-Meter for Vehicles/Logistics -
TCP/IP, RS485, and Wiegand
Specifications
-
RFID Performance
RFID Frequency 860-865Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ R2000 / E710 / TM600 RF output 0 – 33dBm（adjustable）adjustable 4dbi antenna built-in
Reading Distance 1-6m(depens on tags performance) Communication interface TCP/IP、RS232、RS485、Wiegand26/34 interface Application software interface Provide API development kit and application routines Support RSSI Support Antenna Parameters 8dBi Circularly Polarized Antenna (built-in)
Way of Working Automatic mode, trigger mode, interactive mode, etc. Input/Output (GPIO) 2-way input, 2-way output (optional) Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm
-
Physical Performance
Dimensions 235mm(L) x 235mm(W) x57mm(H) Power supply With 220V AC input, the output of +12 V/3A DC power converter Metrial ABS + aluminum alloy
Weight 2 Kg Humidity 5% to 95%, non-condensing Protection class IP67 Working temp -20℃ to +70℃ Storage temp -30℃ to +85℃ Heat dissipation method Air cooling
Applications
