GZY-202
UHF RFID Handheld Reder

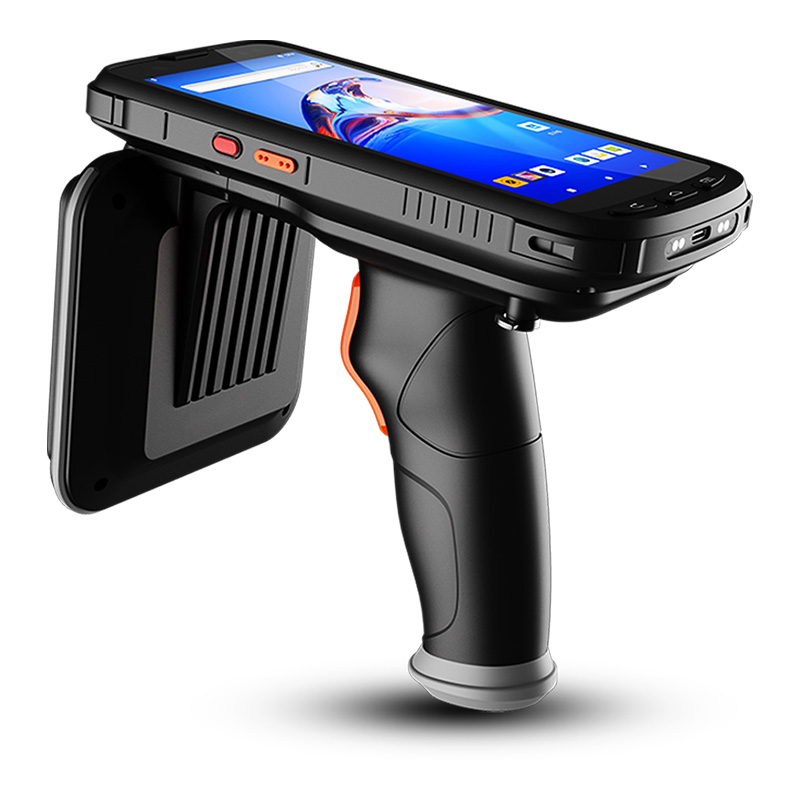

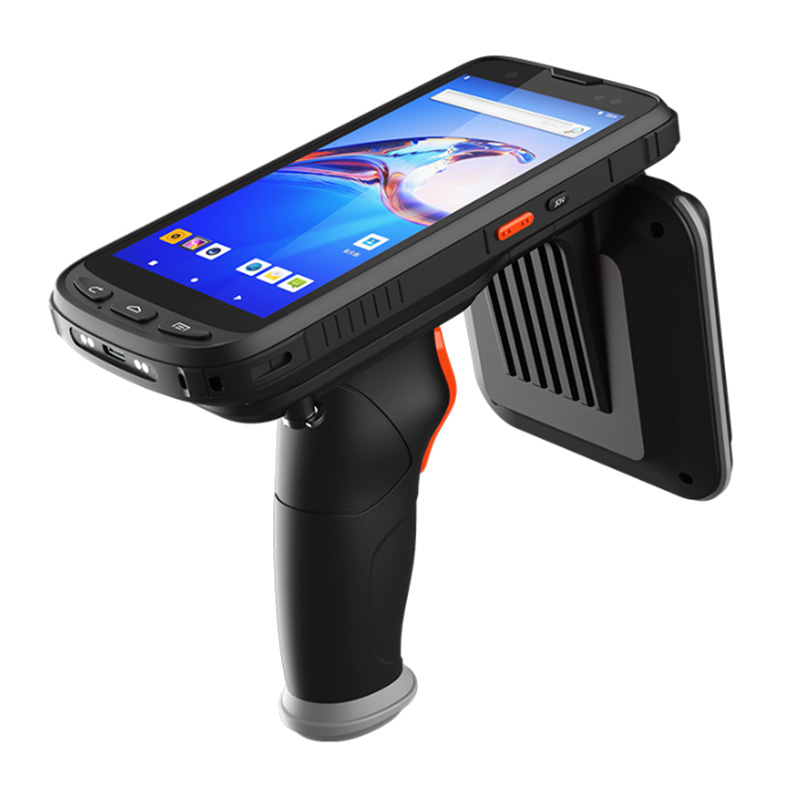

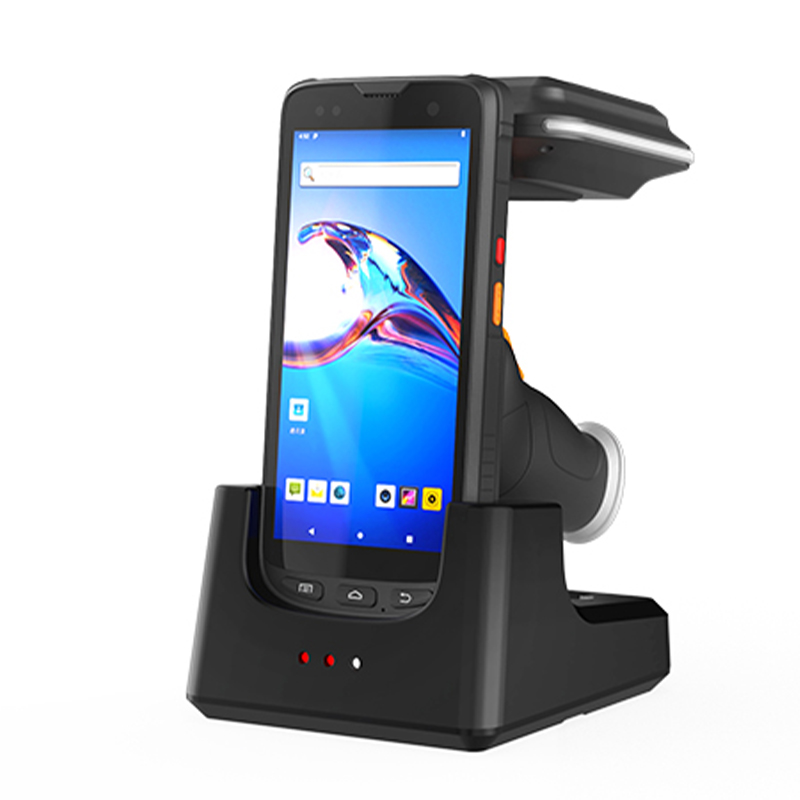

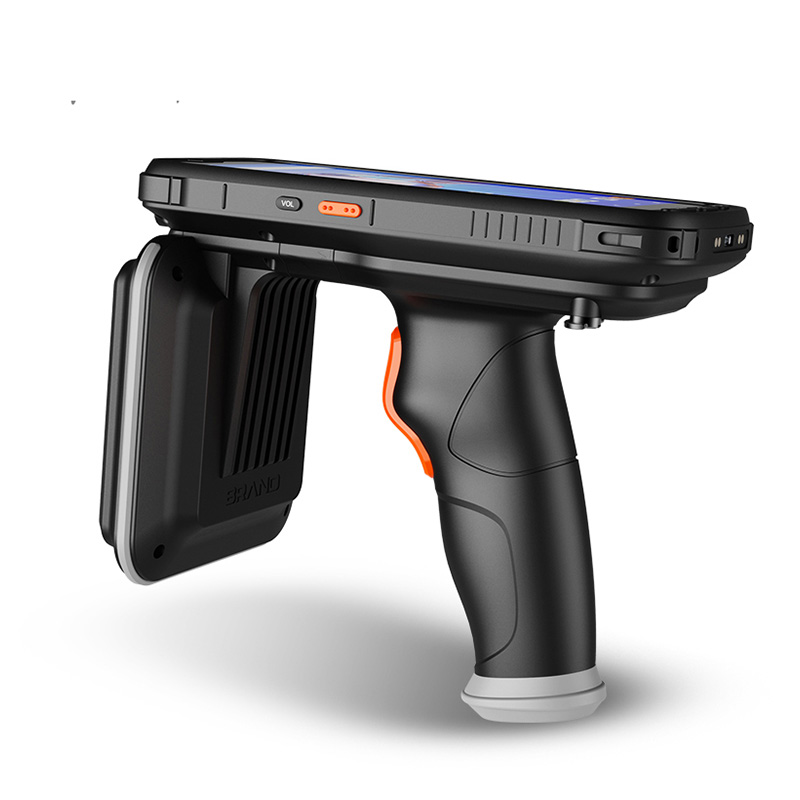

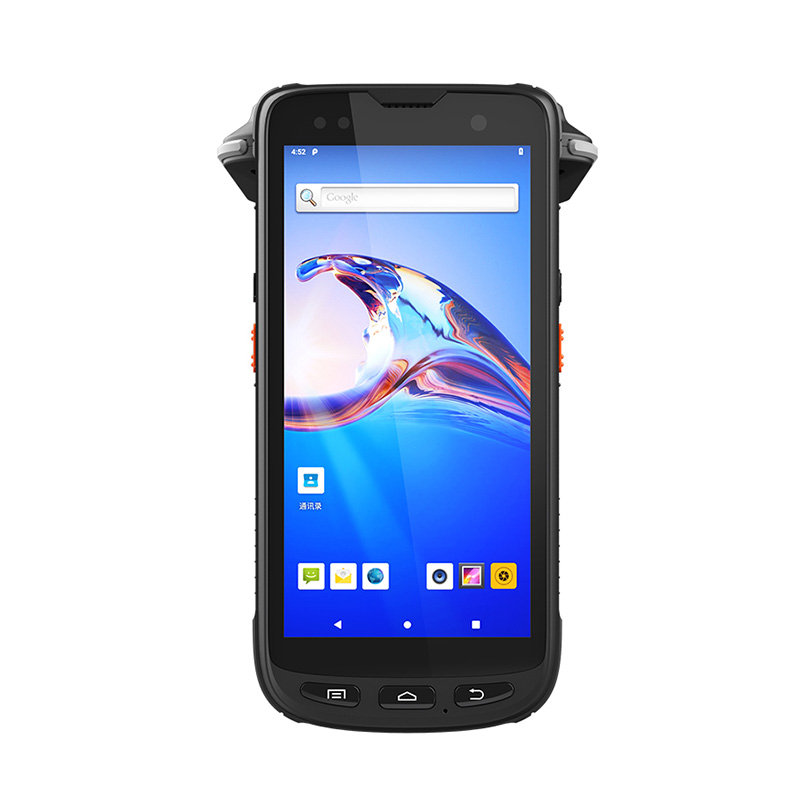

It is a high-performance ultra-high frequency RFID handheld terminal, equipped with Android 10.0 system and an eight-core processor. It supports 4G all-network access, WiFi and Bluetooth. It has an extremely long distance recognition capability (up to 20 meters outdoors), with a peak reading speed of 700-1000 tags per second. It also integrates barcode, NFC, GPS and other functions. With IP65 protection level, it is suitable for mobile data collection scenarios such as warehouse logistics, asset
/
UHF RFID Handheld Reder
Features
-
Impinj E710 -
5.5-inch IPS -
RAM+ROM: 3/4/6 GB +32/64/128 GB -
9000mAh Battery -
8-core 64-bit Cortex-A55
-
Host IP65/1.8m Drop Resistance
Specifications
-
PHYSICAL CHARACTERISTICS
Dimension 166mm(H)x79mm(W)x31mm(D)±2 mm Net Weight 600g (including battery&wrist strap) Display Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight Backlight LED backlight Expansions 1 PSAM; 1 SIM, 1 TF Battery Rechargeable li-ion polymer, 3.8V, 9000mAh COLOR CAMERA Resolution Rear 13 megapixel, front 5.0 megapixel
COLOR CAMERA Lens Auto-focus with LED flash
-
RFID UHF READER
Frequency 860-865Mhz /902-928Mhz（Can be customized） Protocol EPC C1 GEN2/ISO 18000-6C Antenna Gain Circular 4dBi
R/W Range 0-20m(According to Tag & Environment) RF output 0-33dBm adjustable Communication method Bluetooth, 4g, wifi 2D CMOS Imager OPTIONAL 2D barcode Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. -
PERFORMANCE CHARACTERSTICS
CPU Cortex A73 2.0GHz octa-core
Operating System Android 10.0
Memory RAM：2GB; ROM:16GB;（optional）RAM：4GB ROM：64GB
MicroSD(max 256GB expansion)
-
DEVELOPMENT ENVIRONMENT
SDK Software Development Kit
Language Java
Environment Android Studio or Eclipse
-
USER ENVIRONMENT
Operating /Storage Temp -20℃to 50℃/-20℃to 70℃ Humidity 5%RH to 95%RH(non-condensing)
Drop Spec. 5ft./1.5 m drop to concrete across the operating temperature range Dust & Water Proof. IP65, IEC compliance
Applications
