GZY-D880
8Ports UHF RFID Reader
The GZY-D880 RFID eight-channel reader adopts military-grade components and a dual-CPU architecture, supporting 8-antenna 25ms polling switching and high-speed identification of 700 tags per second.The die-cast aluminum body has passed IP53 protection certification, operates in a wide temperature range of -20℃ to 55℃, and supports ISO18000-6B/6C dual protocols and POE/WiFi expansion. It is suitable for high-intensity inventory scenarios such as large-scale warehouses, logistics hubs, and industr
/
8Ports UHF RFID Reader
Features
-
IMPINJ E710 -
8-Channel -
24/7 Operation -
ISO 18000-6B/6C -
IP53 Rating -
25m with 12dBi
Specifications
-
RFID Performance
RFID Frequency 865-868Mhz /902-928Mhz(customized) Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ E710 / R2000 RF Output 0-30dBm(adjustable) Reading Distance 1-25m(depens on tag performance) Support RSSI Support Inventory Tag Peak Speed > 700 Pcs/Second Way of Working Automatic mode, trigger mode, interactive mode, etc. Antennas Interface 1、2 、4、8 port TNC antenna connector optional Communication rate Serial rate 9600～115200bps, RJ45 is 10Mbps，wiegand26/34
Communication Interface TCP/IP、RS232、RS485、USB（Slave）、WiFi (optional)
Input/Output (GPIO) 2-way input, 2-way output (optional) Application Software interface(SDK) Supply API SDK and VC and VB, Java application routines
Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85dBm -
Physical Performance

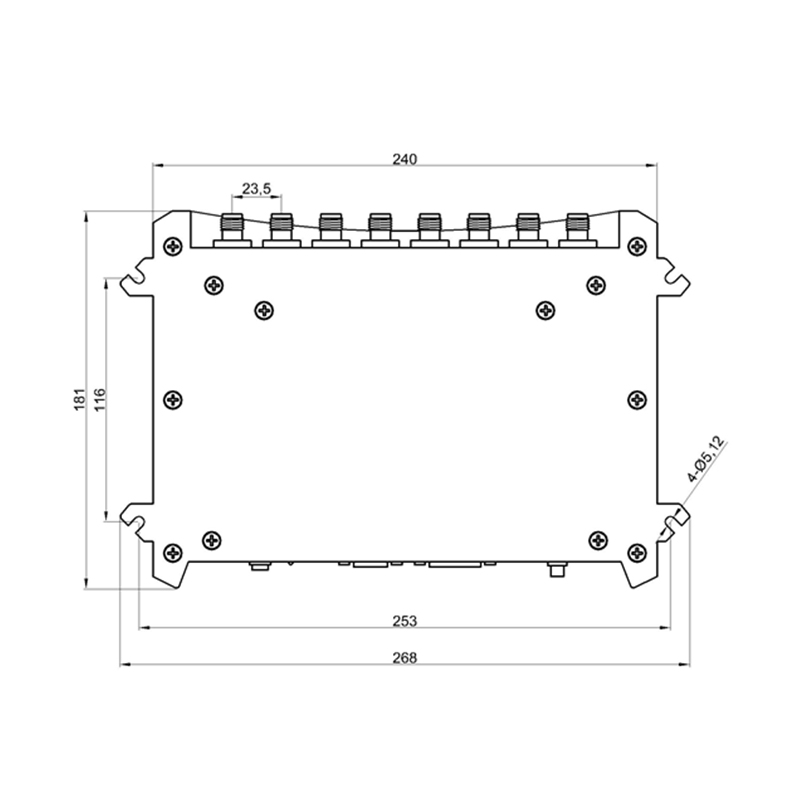

Dimensions 268mm(L) x 181mm(W) x 28mm(H) Power Supply With 220V AC input, the output of +12 V/3A DC power converter Metrial Aluminum alloy
Gross Weight 1.2Kg Humidity 5% to 95%, non-condensing
IP rating IEC IP53 Operating Temp. -20℃ to +55℃
Storage Temp. -20℃ to +85℃
Heat dissipation method Air cooling
Applications
