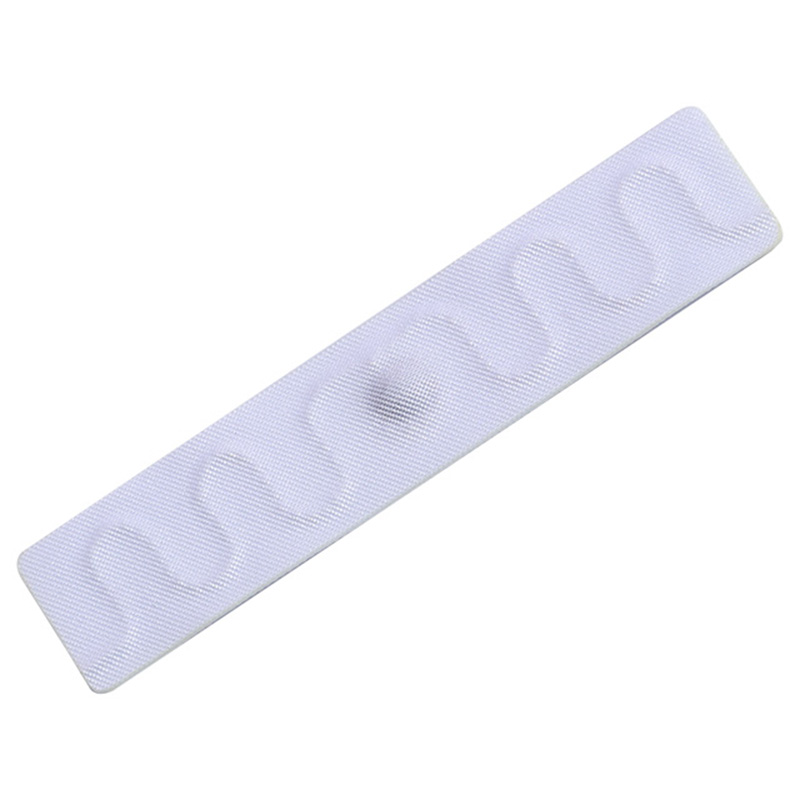

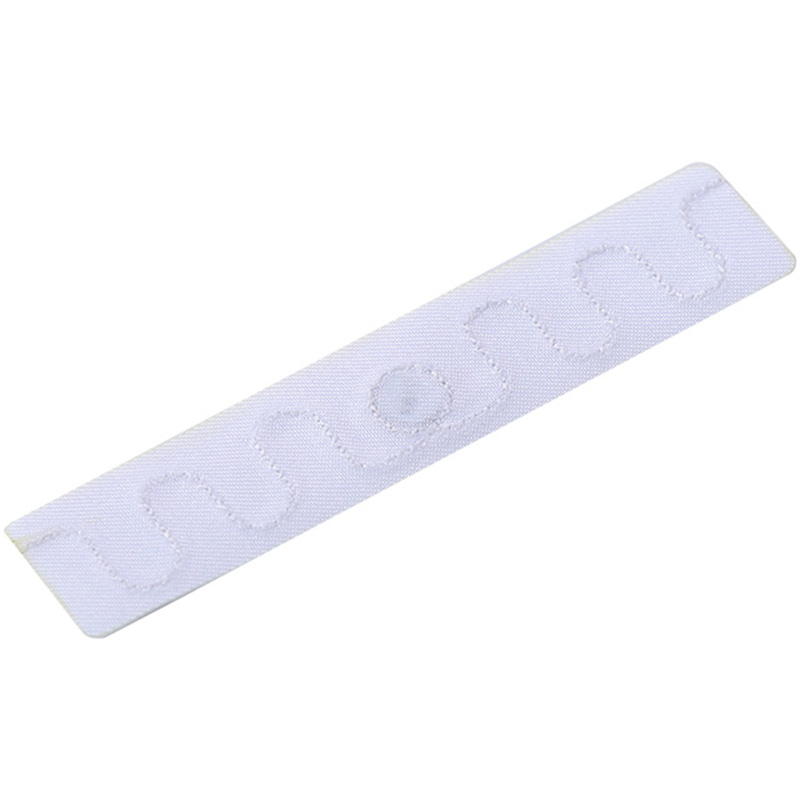

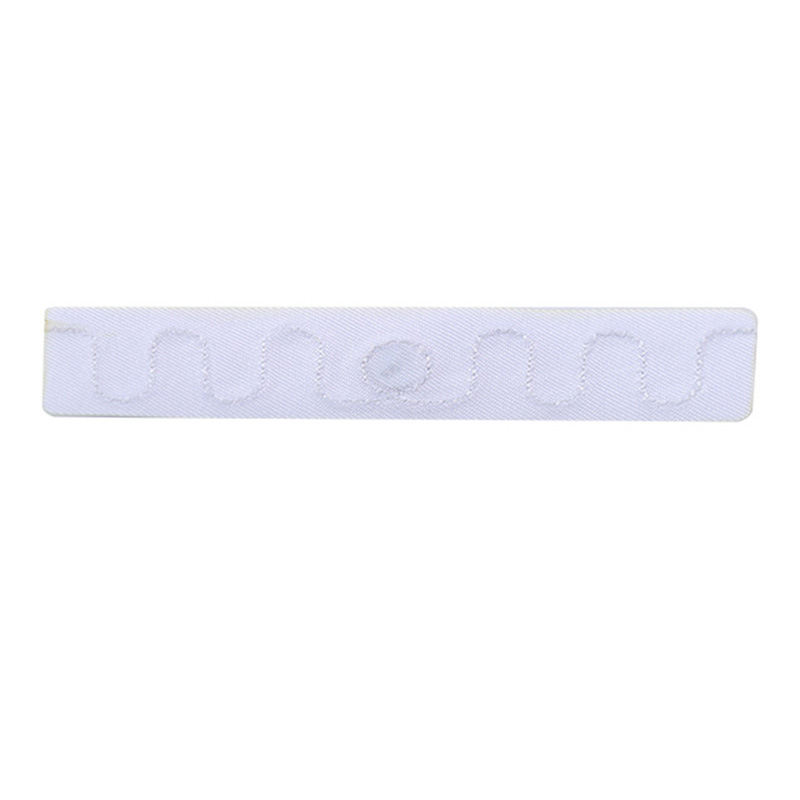

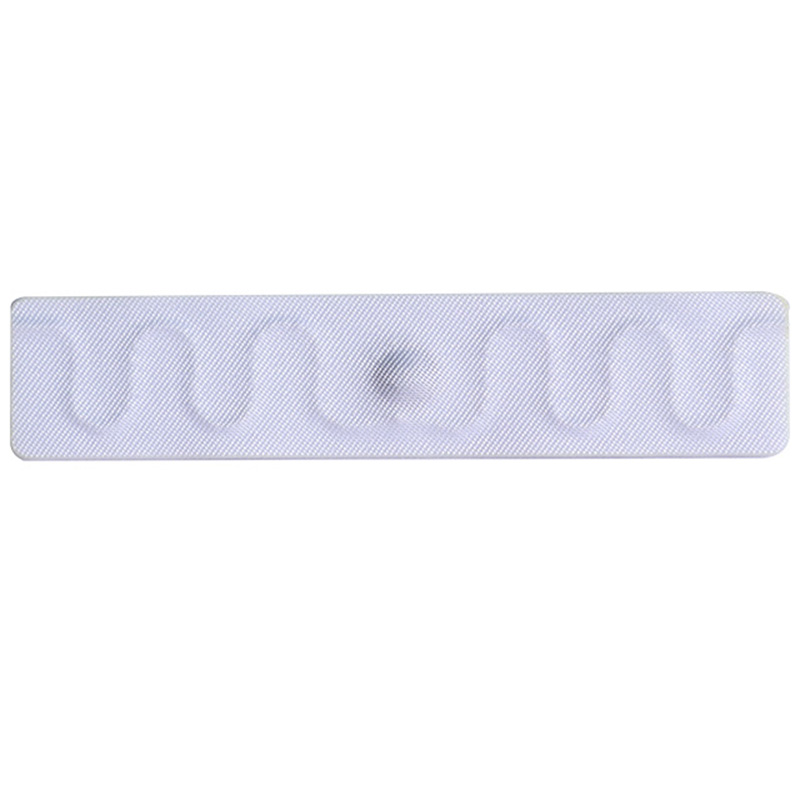

GZY-XH7015
UHF Textile Laundry Tag
Textile material label, size 70×15mm, balancing softness and reading performance. The farthest reading distance is 10 meters. It can withstand 180℃ drying and high-temperature sterilization. It is suitable for asset management in hotels, hospitals, and other places that require long-distance, rapid inventory checking and high-intensity washing cycles.
/
Micro anti - metal RFID tag
Features
-
Large 70x15mm Size -
10 meter Maximum -
200 Wash and Iron Cycles -
Soft Textile Material -
Sewn or Heat Transfer Installation -
Ideal for Linen Tracking
Specifications
-
Physical Features
Model GZY-X7015
Size 70(L)mm x 15(W) x 1.5(H)mm
Material Textile
Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods 215℃@12-15 seconds heat sealing or thread installation (sewing) Package details 500Pcs/bags
Weight 0.6g
Chemicals Normal common chemicals in the washing processes
Colour White Mechanical Resistance Up to 60 bars Operating Temp 1) Washing: 90℃(194οF), 15 minutes, 200 cysle
2) Pre-drying in Tumbler: 180℃(320οF), 30minutes
3) Ironer: 180℃(356 ο F), 10 seconds, 200 cycles
4) Sterilization Process: 135℃(275οF), 20 minutes -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode9; M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-7m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
Estimated Lifetime 200 washing cycles or 2 years -
Others Features
Application ●Management of uniforms；
●Medical apparel management；
●Military clothing management；
●Personnel patrol management.IP Rating IP68
