GZY-P0904

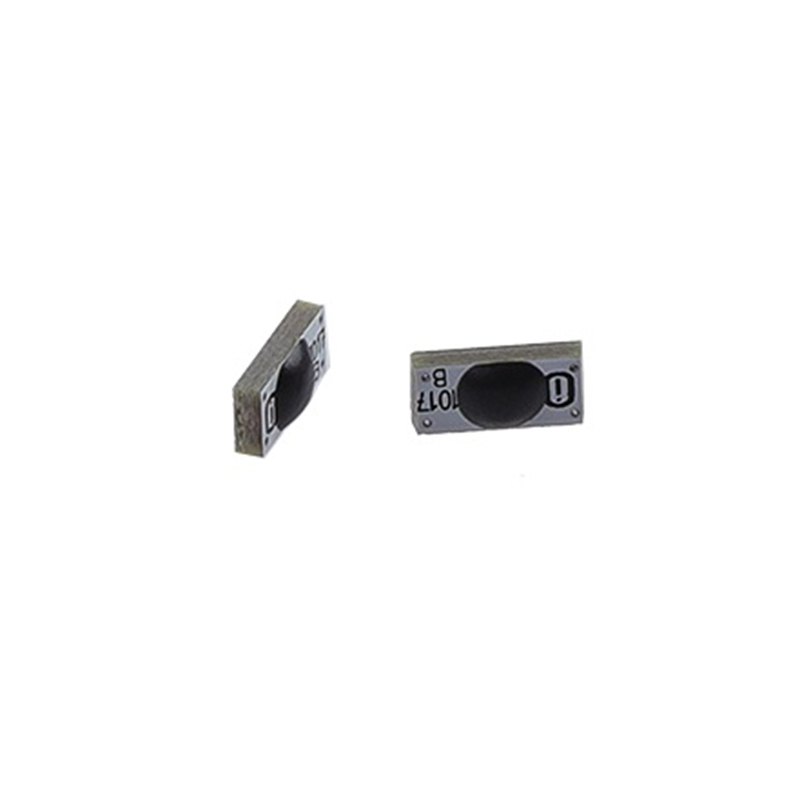

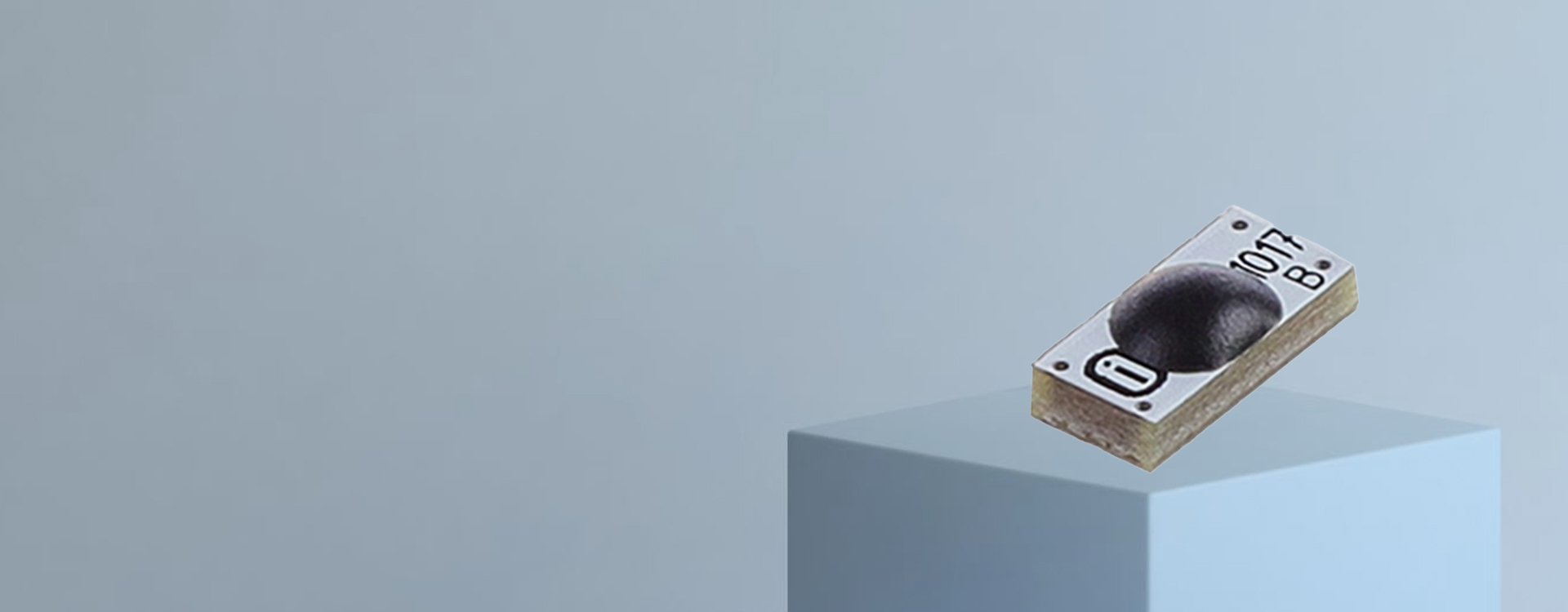

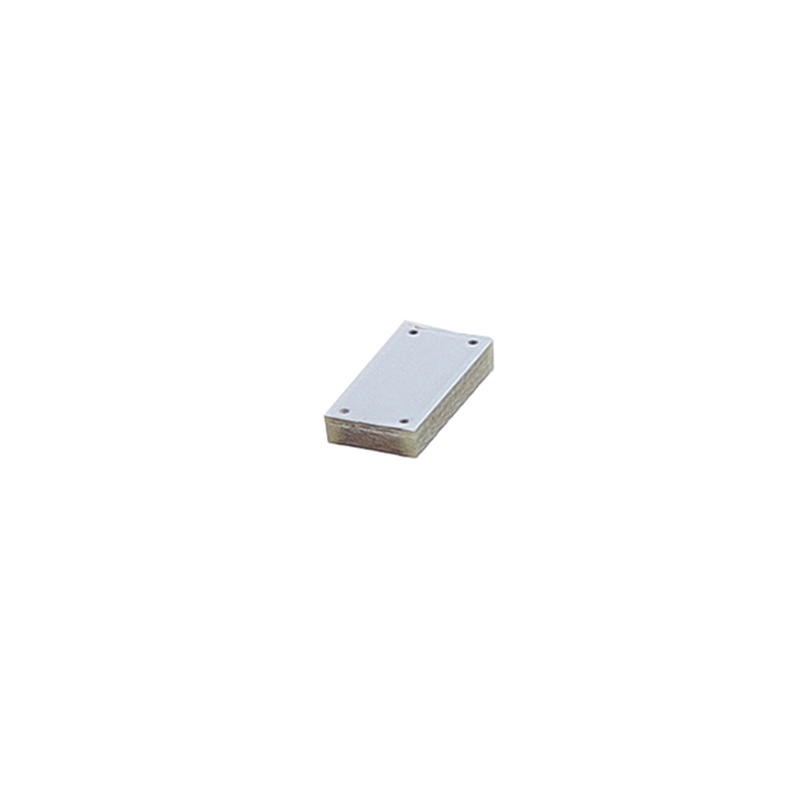

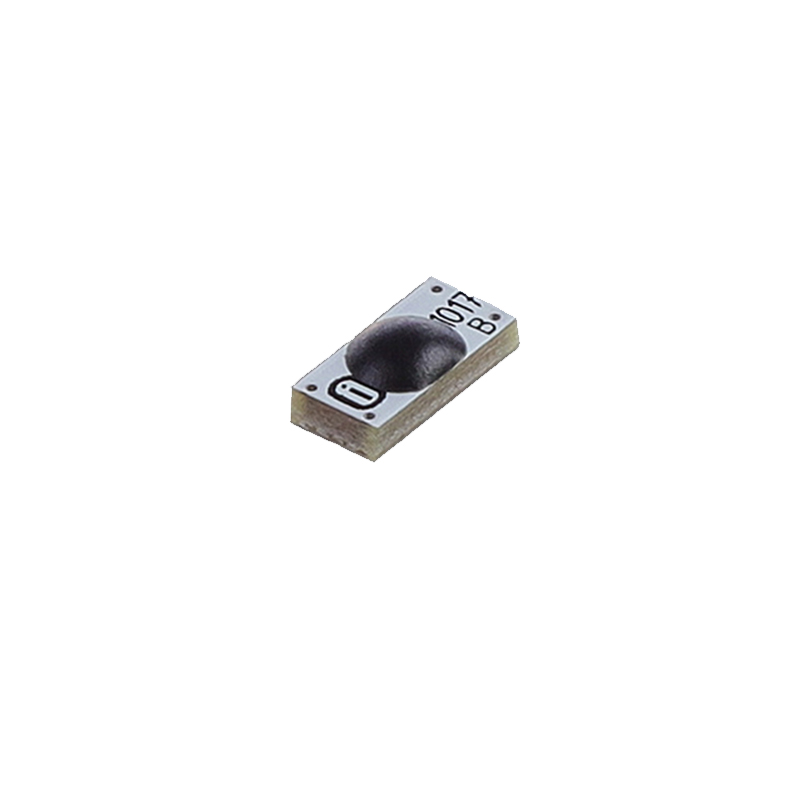

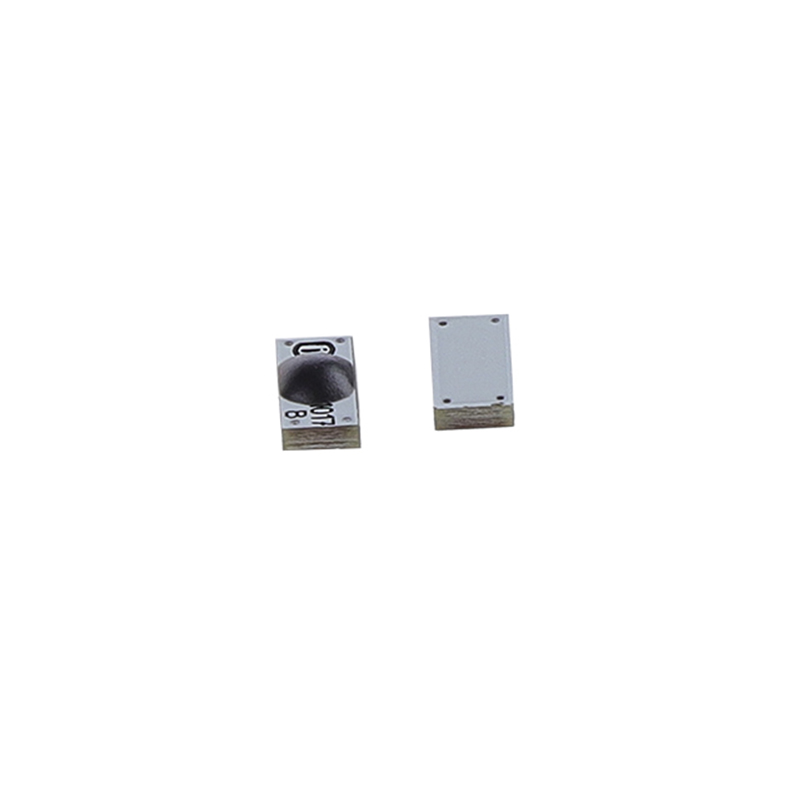

Small RFID PCB tag
With dimensions of only 9×4×2mm, this product is specially designed for metal surfaces. It adopts the UCODE 8/9/M730 chip and supports the EPC Gen2 protocol. The reading distance can reach up to 1.2 meters. It features IP68 protection, resistance to high and low temperatures, and corrosion resistance to alcohol and gasoline. It is suitable for the management of small metal equipment such as surgical instruments, molds, and firearms etc.
/
Micro anti - metal RFID tag
Features
-
Ultra-Mini Size 9x4mm -
up to 1.2 Meters -
Resistant to Alcohol and Gasoline -
Chip Customizable -
Chip Rewrite Cycles ≥100,000 -
Metal Surface Mountable
Specifications
-
Physical Features
Model GZY-P0904 Size 9mmx4mmxT2.0mm Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.5g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.3-1.2m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
