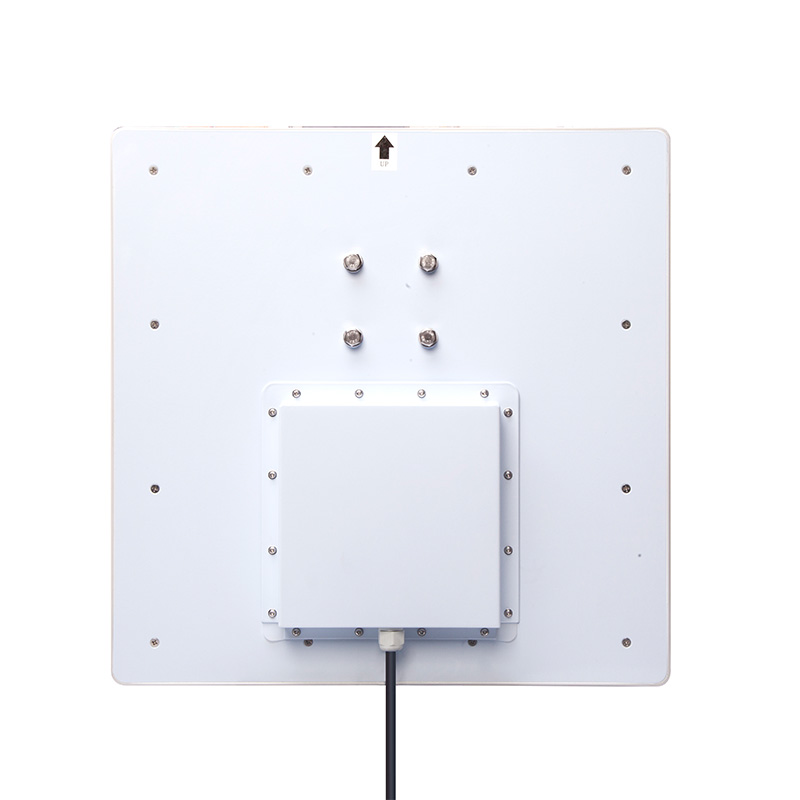

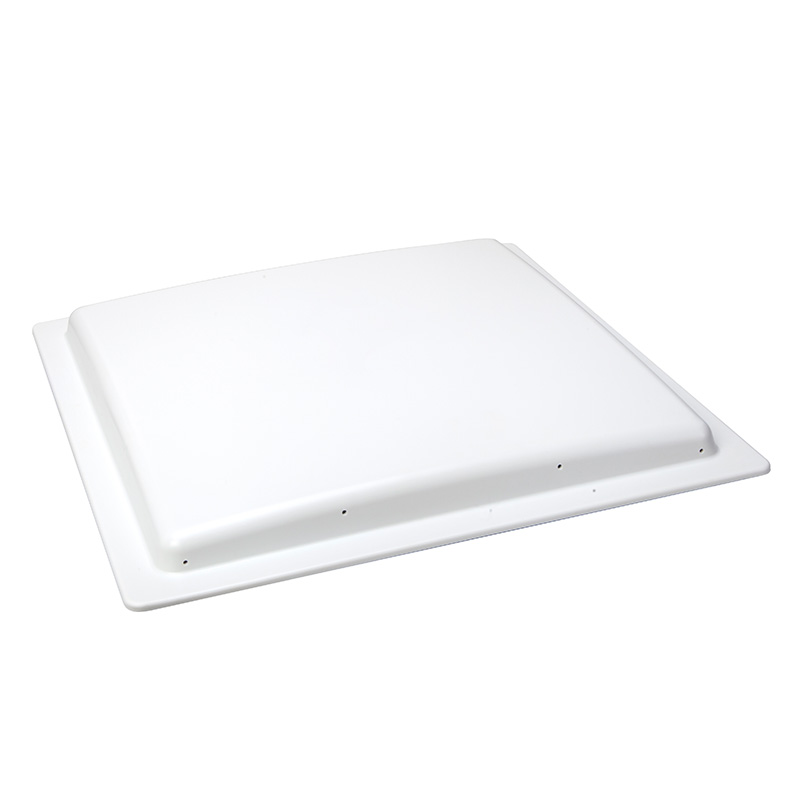

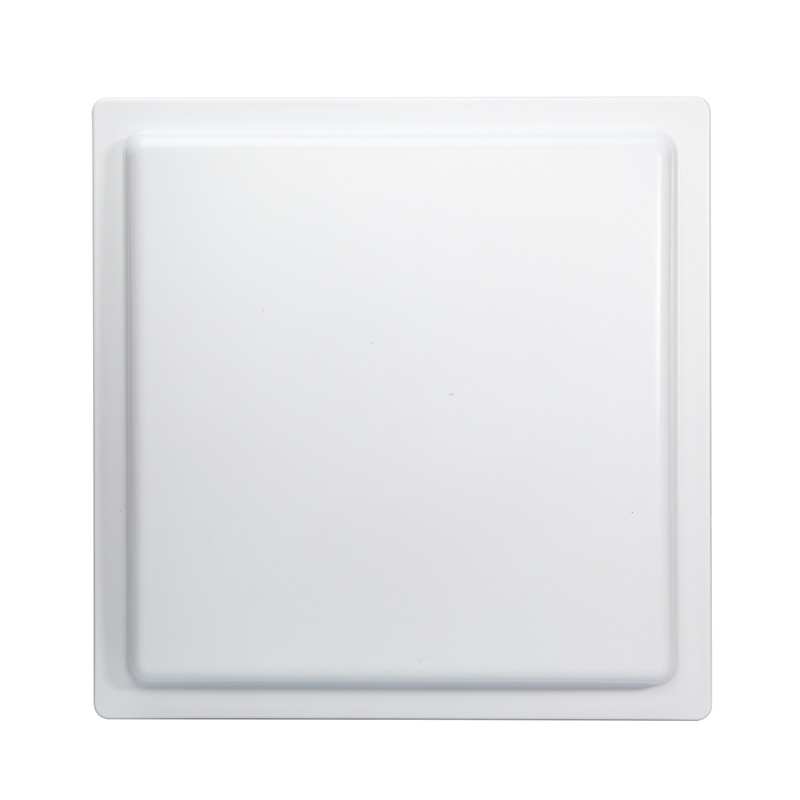

GZY-E612
High - Speed RFID Integrated Reader
GZY-E612 is a high-performance UHF RFID integrated reader that supports the EPC C1G2 protocol. It boasts excellent multi-tag identification and anti-collision capabilities. The operating frequency ranges from 860 to 960 MHz, with adjustable output power, and the maximum reading distance can reach 9 meters. It offers various interfaces such as RS232, RS485, Wiegand, and Ethernet, with an IP65 protection level. It is suitable for scenarios such as vehicle access control, logistics management, and
/
High - Speed RFID Integrated Reader
Features
-
24/7 Continuous Operation -
ISO18000-6B/6C -
IP65 -
Mode: Auto, Trigger, and Interactive -
10-Meter for Vehicles/Logistics -
TCP/IP, RS485, and Wiegand
Specifications
-
RFID Performance
RFID Frequency 860-865Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ R2000 / E710 / TM600 RF output 0 – 33 dBm（adjustable）adjustable 4dbi antenna built-in
Reading Distance 1-8m (depens on tags performance) Communication interface TCP/IP、RS232、RS485、Wiegand26/34 interface Application software interface Provide API development kit and application routines Support RSSI Support Antenna Parameters 9dBi Circularly Polarized Antenna (built-in)
Way of Working Automatic mode, trigger mode, interactive mode, etc. Input/Output (GPIO) 2-way input, 2-way output (optional) Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm
-
Physical Performance
Dimensions 278.5mm(L) x 257mm(W) x52mm(H) Power supply With 220V AC input, the output of +12 V/3A DC power converter Metrial ABS + aluminum alloy
Weight 1.8 Kg Humidity 5% to 95%, non-condensing Protection class IP67 Working temp -20℃ to +70℃ Storage temp -30℃ to +85℃ Heat dissipation method Air cooling
Applications
