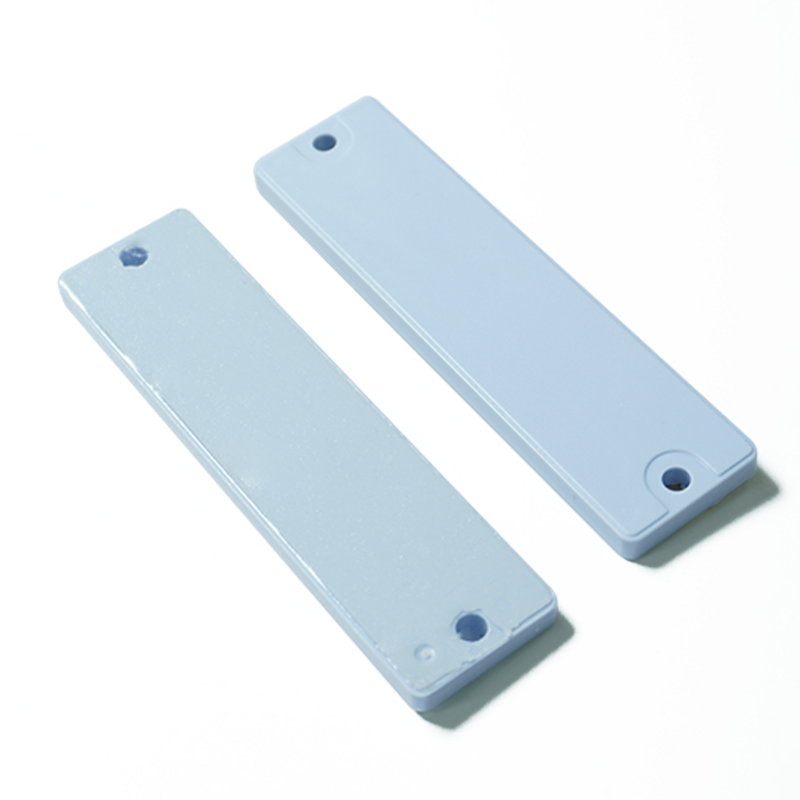

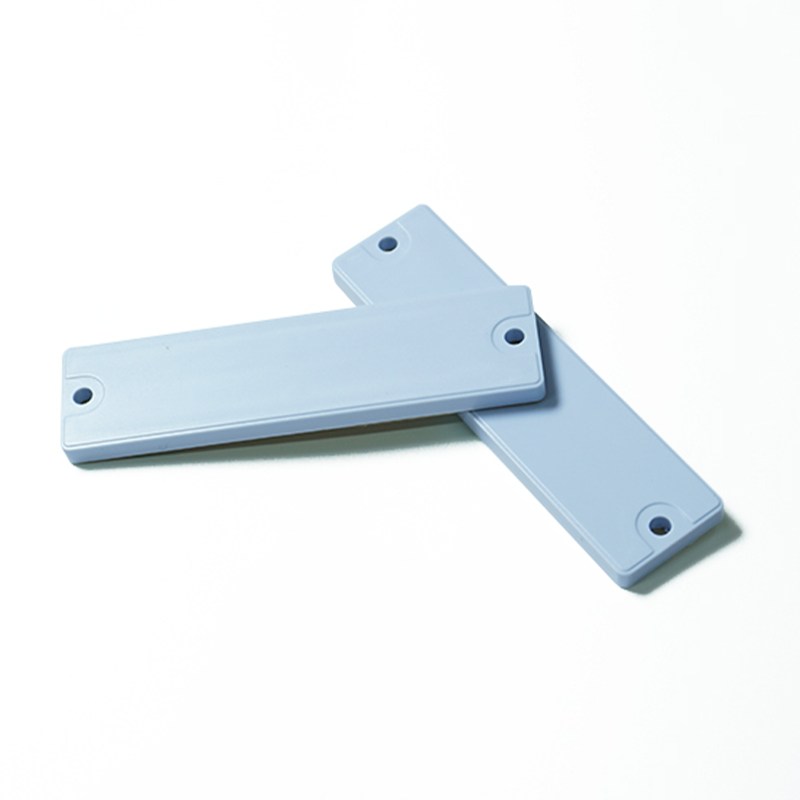

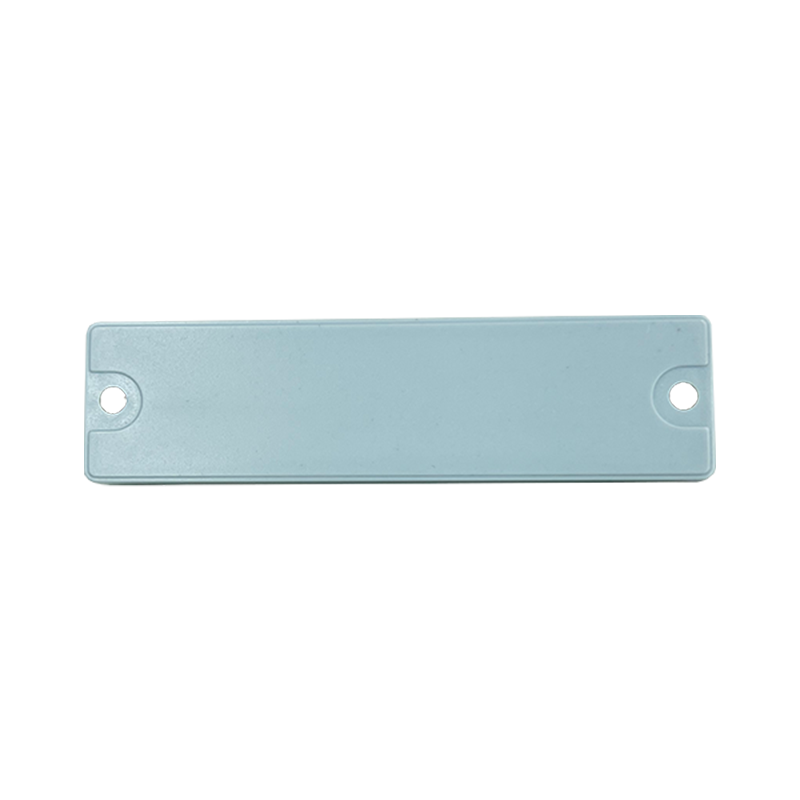

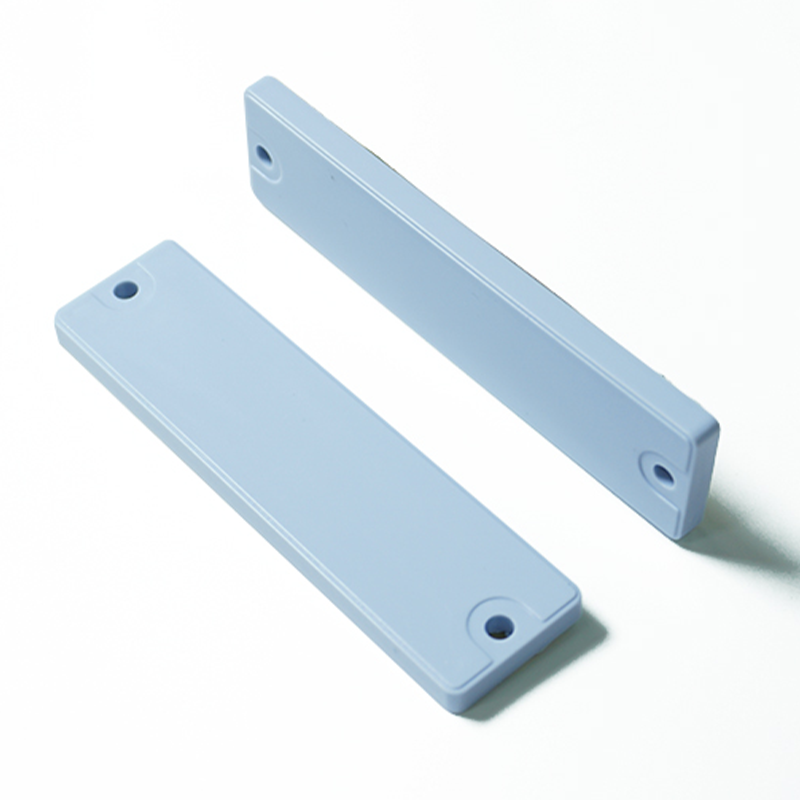

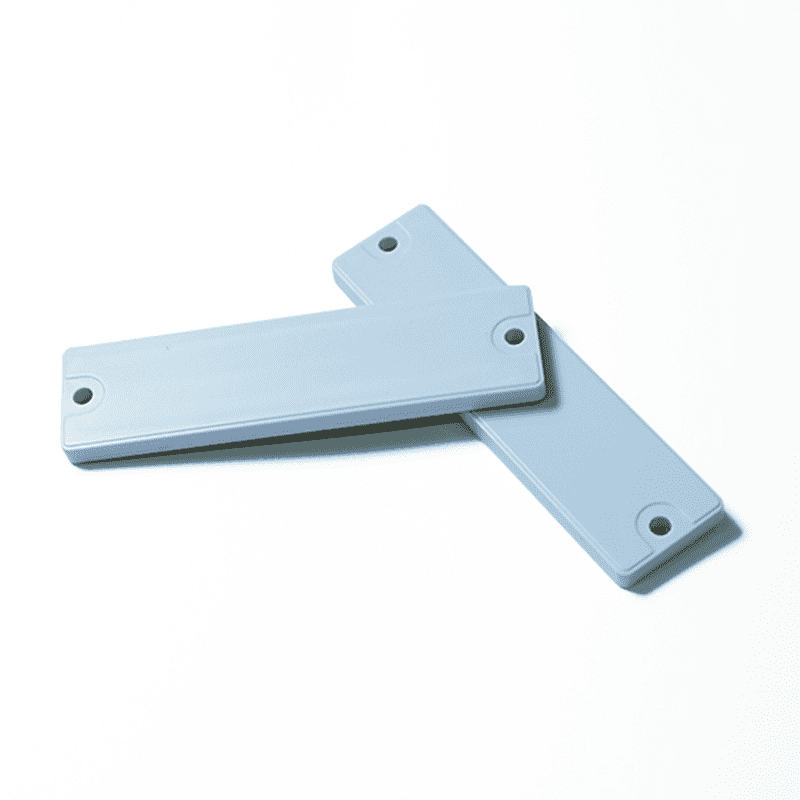

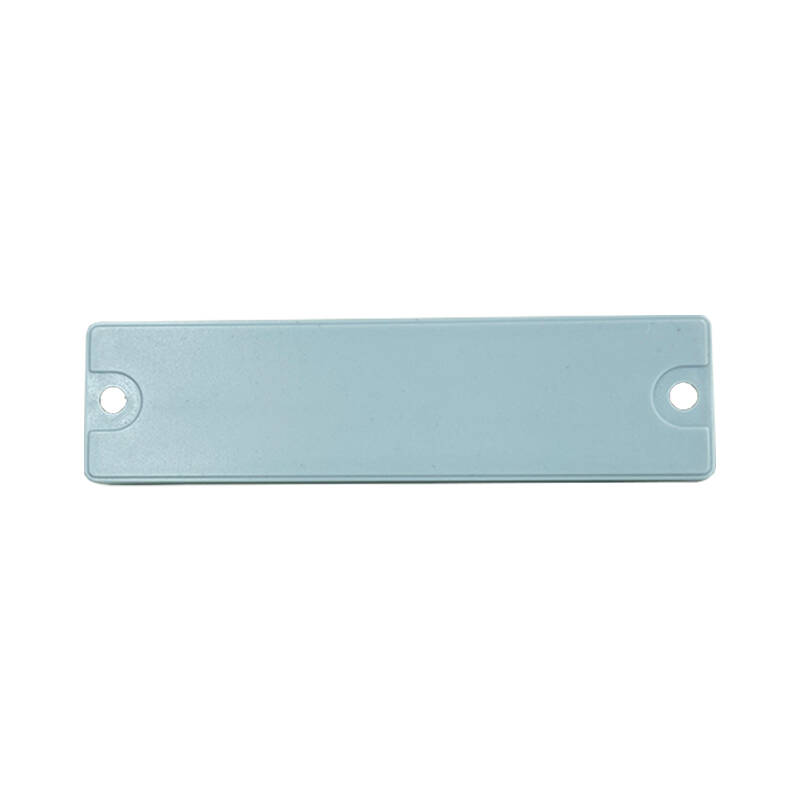

GZY-A9525
Passive RFID ABS On-metal Tag

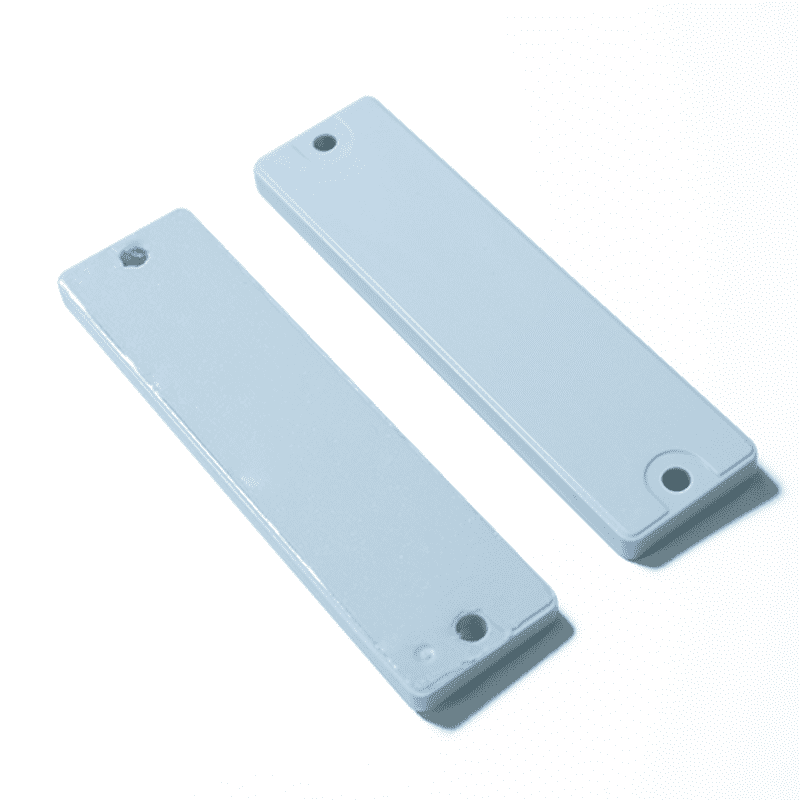

ABS/ASA material, the size is 95×25×5mm, lightweight and sturdy. The farthest reading distance on the metal surface is 12 meters. It supports multiple installation methods such as adhesive, screws, and rivets, and is suitable for long-distance identification requirements in scenarios like shelves, pallets, and equipment management.
/
Micro anti - metal RFID tag
Features
-
Large 105x30mm -
Maximum 12 Meters -
IP68 Protection Rating -
Weather-Resistant ABS/ASA Material -
Operating Temperature: -40℃ to +85℃ -
Laser Marking Compatible
Specifications
-
Physical Features
Model GZY-A9525
Size 95(L)x25(W)x5.0(H)mm, (Hole:D4.0mmx2)
Material ABS+PC
Working Temp -25~+85℃
Storage Temp -40~+85℃

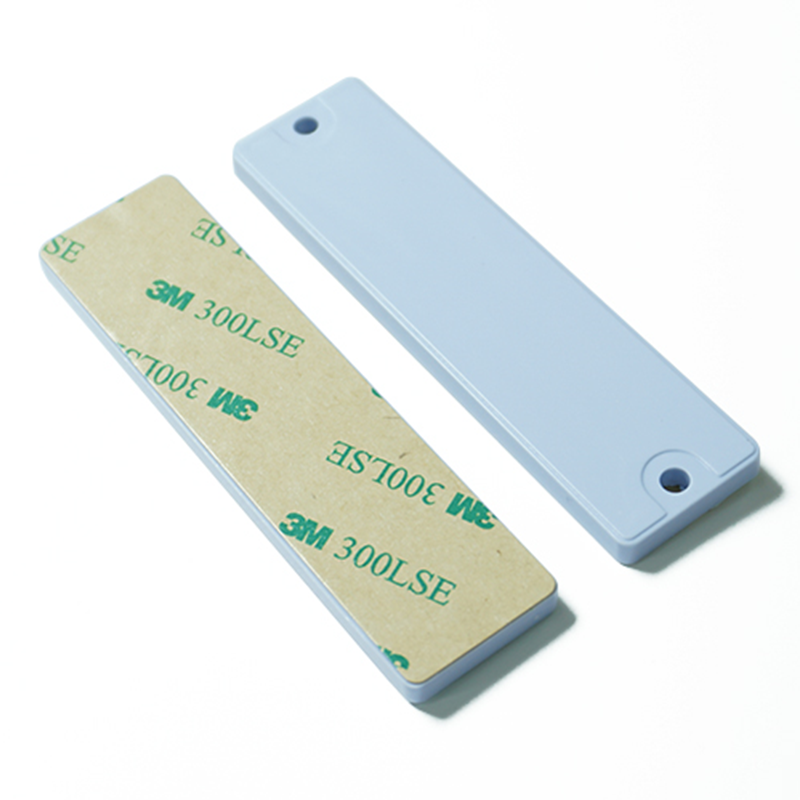

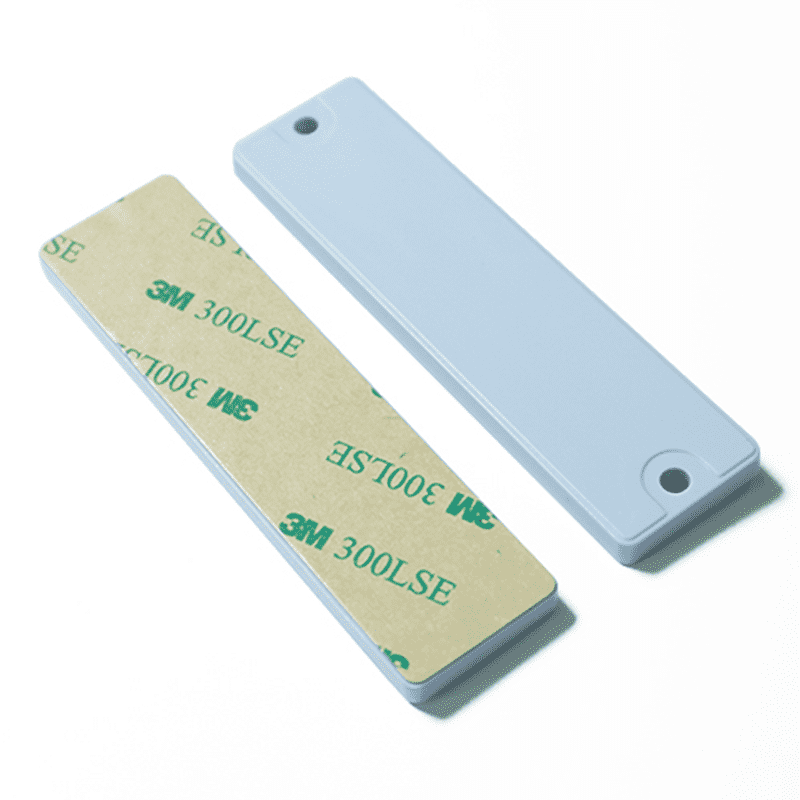

Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 13.23g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-12.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
