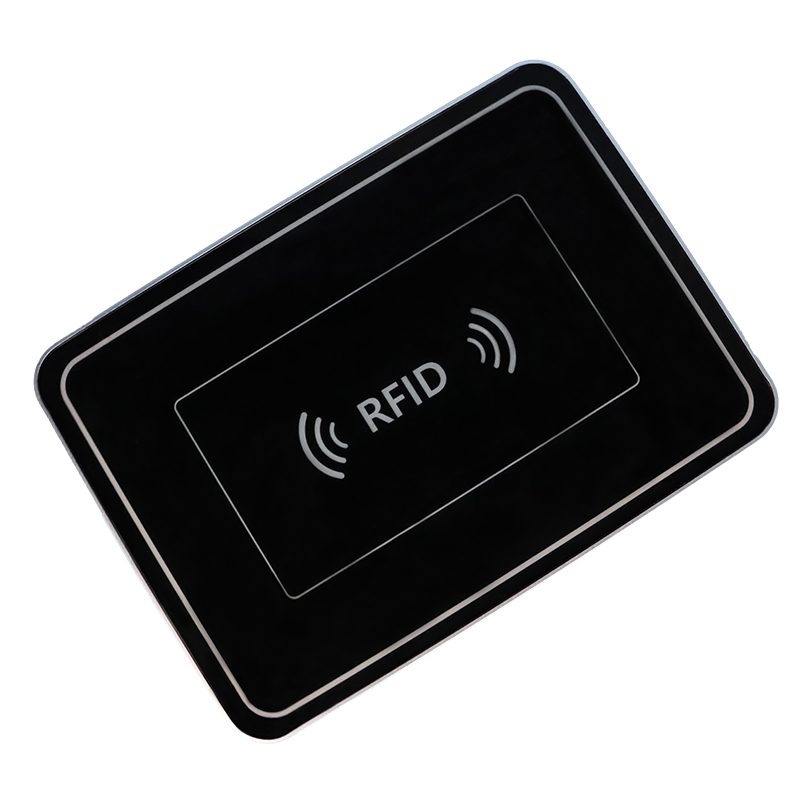

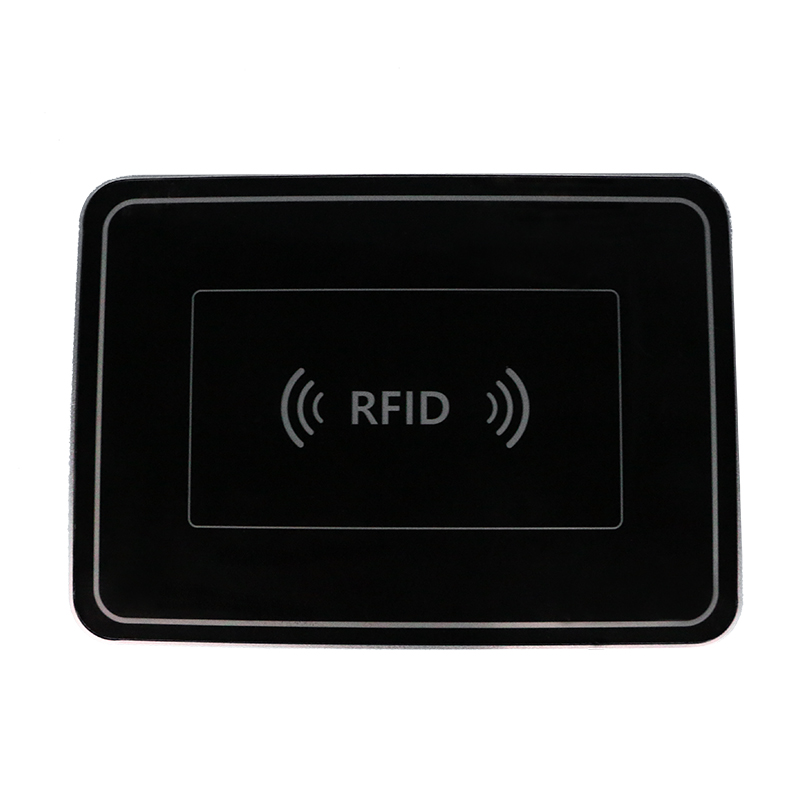

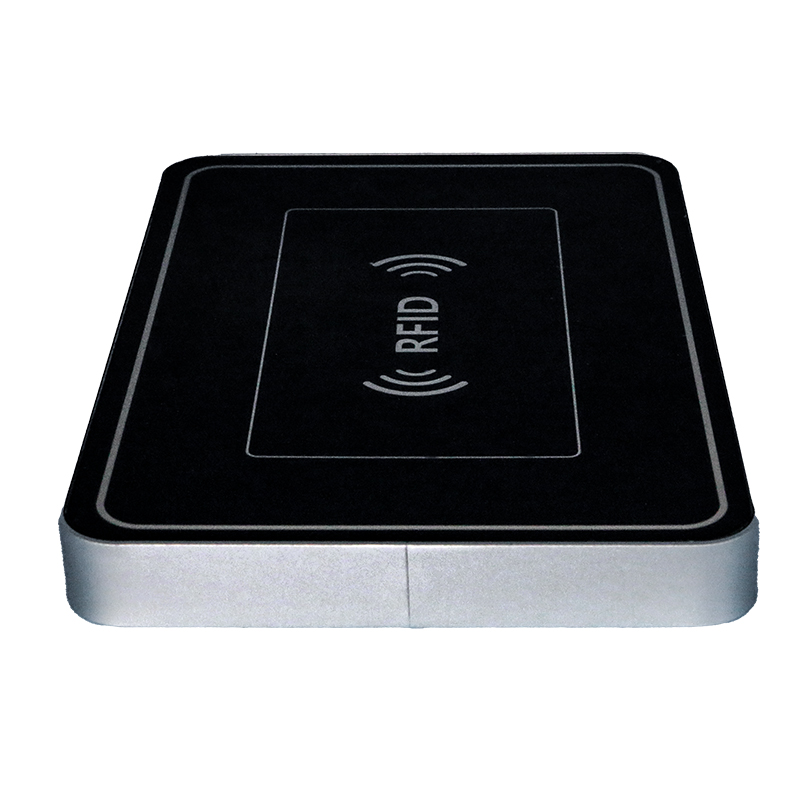

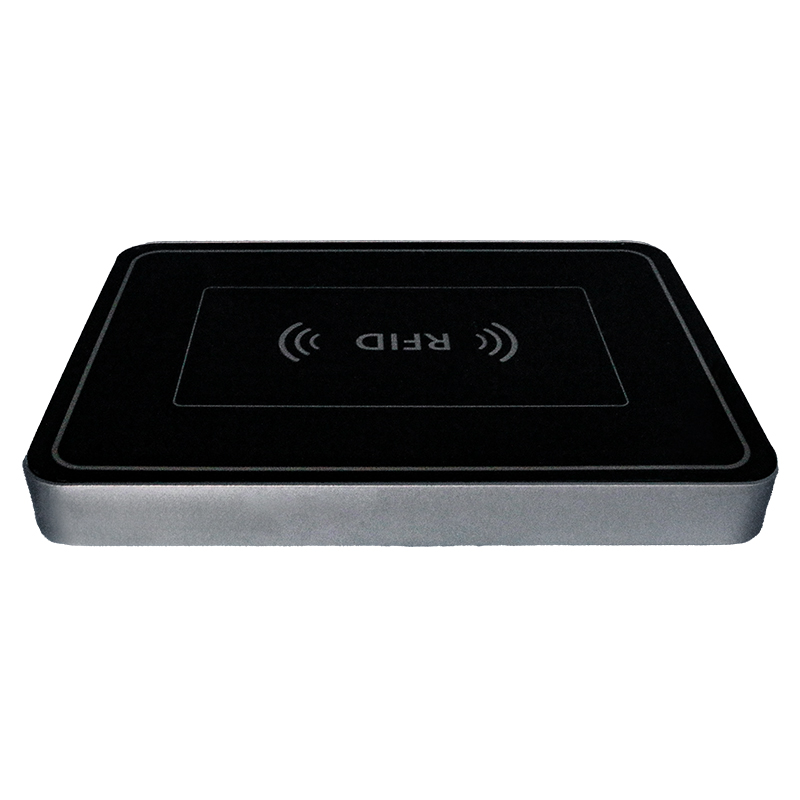

GZY-33
USB Tablet Desktop RFID Reader
GZY-33 is specifically optimized for evidence management. Its 400×300mm large tabletop supports the batch processing of dense evidence labels. With adjustable 33dBm power, it can be adapted to metal evidence labels. It features IP54 protection and tempered glass that is resistant to corrosive liquids, meeting the stringent environmental requirements of the police and laboratories.
/
USB RFID Desktop Reader/Writer
Features
-
400mm Platform -
33dBm Adjustable -
0-500mm Reading Range -
Anti-Corrosion Tempered Glass Surface -
Optional PoE -
Evidence Management Demo SDK
Specifications
-
RFID Performance
Air interface ISO-18000-6B、ISO-18000-6C（EPC G2） Frequency range 865-868, 902-928MHZ（customized）
Antenna type Near-field antenna
Polarization mode Circular polarization
Communication interface USB
Application software Provide with DLL, support secondary development
Read distance 0~300mm
Write distance 0~100mm
Chip E310 -
Physical Performance
Dimension 370(L)*280(W)*35(H)mm
Fuselage material High-strength aluminum profile frame and tempered glass
Weight 1.5Kg Humidity 5% to 95%, non-condensing
Protection grade IEC IP54 Operation temperature -20 ºC to +60 ºC
Storage temperature -40 ºC to 85 ºC
Heat dissipation Air cooled
Applications
