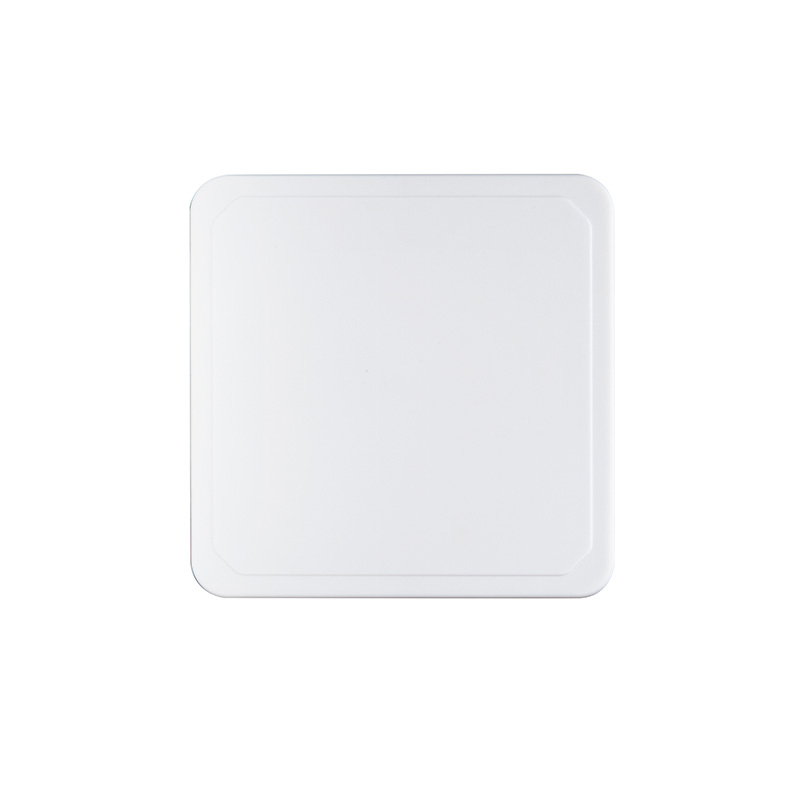

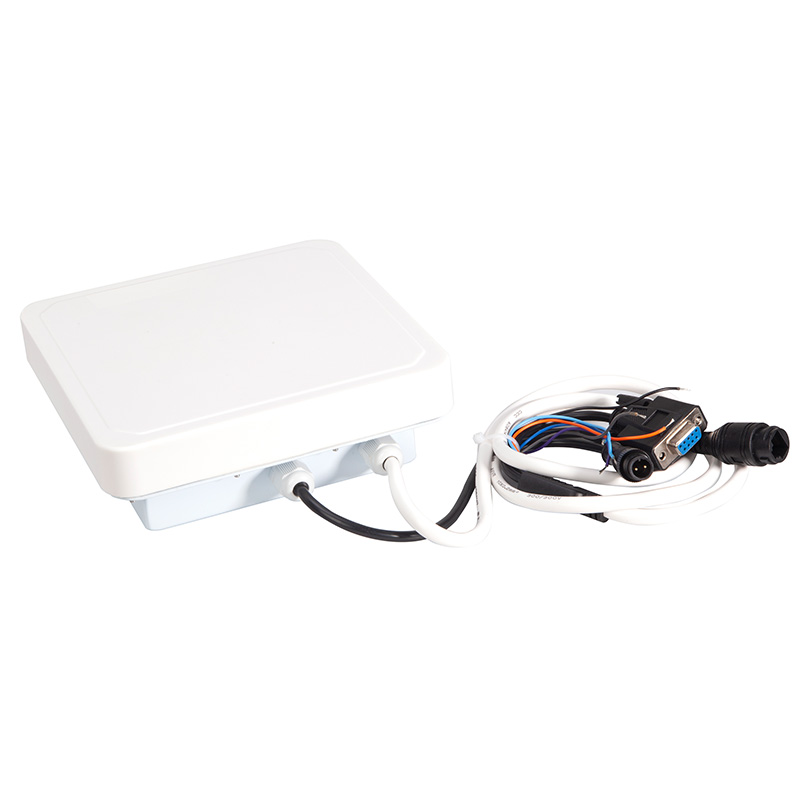

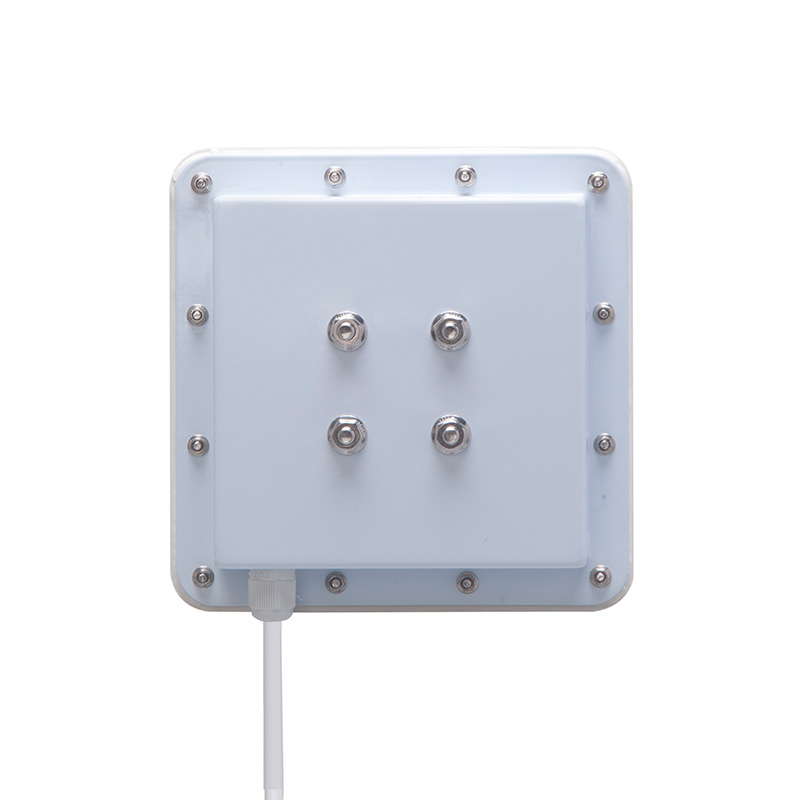

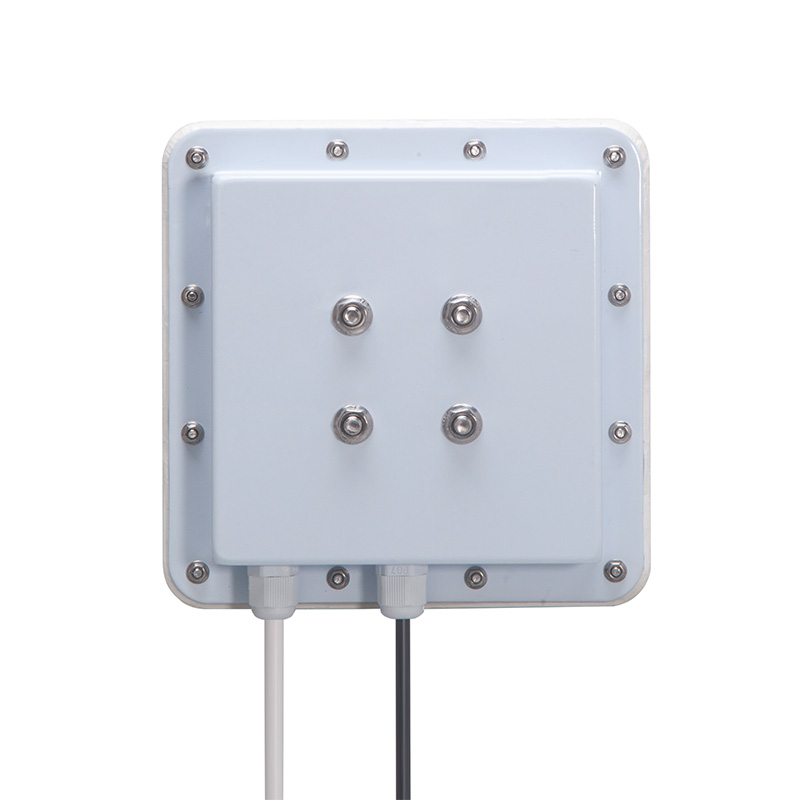

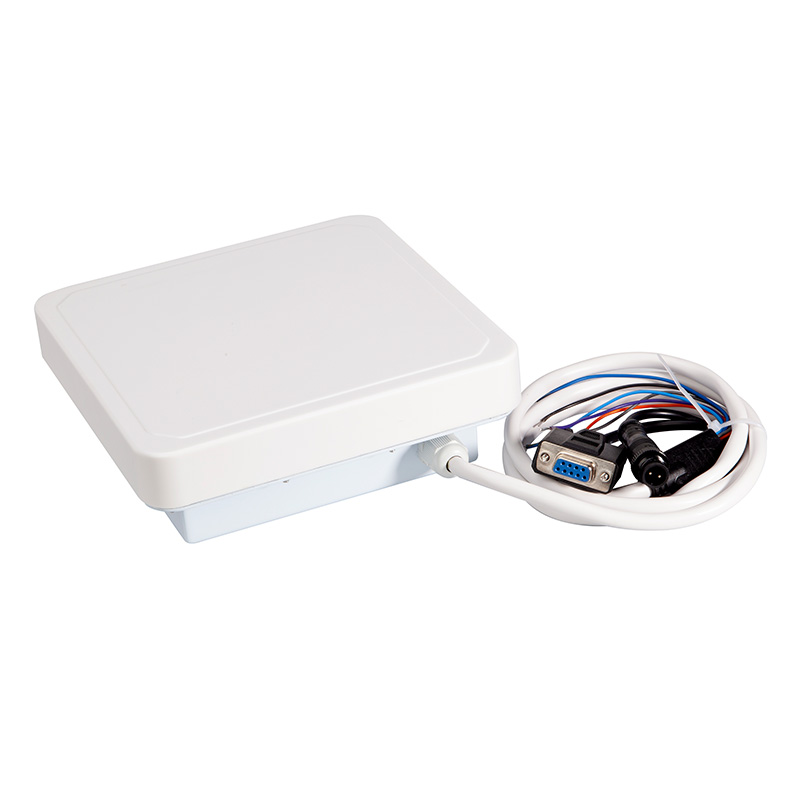

GZY-605
Industrial - Grade RFID Integrated Reader
The GZY-605 RFID ultra-high frequency integrated reader uses military-grade components and supports continuous stable operation 24 hours a day and 365 days a year. The entire machine has an IP65 waterproof design, with adjustable power ranging from 5 to 30 dBm, a maximum identification distance of 5 meters, and is compatible with ISO18000-6C/6B protocols.It provides multiple interfaces such as TCP/IP and RS485, and is suitable for precise identification management in harsh environments such as v
/
Industrial - Grade RFID Integrated Reader
Features
-
24/7 Continuous Operation -
ISO18000-6B/6C -
IP65 -
Mode: Auto, Trigger, and Interactive -
10-Meter for Vehicles/Logistics -
TCP/IP, RS-232, RS-485, Wiegand 26/34
Specifications
-
RFID Performance
RFID Frequency 860-865Mhz /902-928Mhz（Can be customized） Air Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Reader Chip IMPINJ R2000 / E710 / TM600 RF output 5 - 30 dBm（adjustable）
Reading Distance 1-3m(depens on tags performance) Communication interface TCP/IP、RS232、RS485、Wiegand26/34 interface Application software interface Provide API development kit and application routines Support RSSI Support Antenna Parameters 5dBi Circularly Polarized Antenna (built-in)
Way of Working Automatic mode, trigger mode, interactive mode, etc. Input/Output (GPIO) 2-way input, 2-way output (optional) Output Power Accuracy +/- 1dB
Input Power Accuracy +/- 0.2dB Receiving Sensitivity < -85 dBm
-
Physical Performance
Dimensions 165mm(L) x 165mm(W) x55mm(H) Power supply With 220V AC input, the output of +12 V/3A DC power converter Metrial ABS + aluminum alloy
Weight 2 Kg Humidity 5% to 95%, non-condensing Protection class IP67 Working temp -20℃ to +70℃ Storage temp -30℃ to +85℃ Heat dissipation method Air cooling
Applications
