GZY-R7025
Industrial on-metal RFID label
The size is 70×25mm, with a flexible thickness of 1.25mm. The maximum reading distance on the metal surface is 7.0 meters. It features stable and powerful performance, supports customization for various printers, and is suitable for applications such as warehousing and fixed assets that have dual requirements for reading distance and print quality.
/
Micro anti - metal RFID tag
Features
-
70x25mm -
Metal Surface 7.0 Meters -
IP68 Protection Rating -
High-Frequency Dual Protocol -
Roll Packaging: 800 Tags/Roll -
Suitable for Large Asset Tracking
Specifications
-
Physical Features

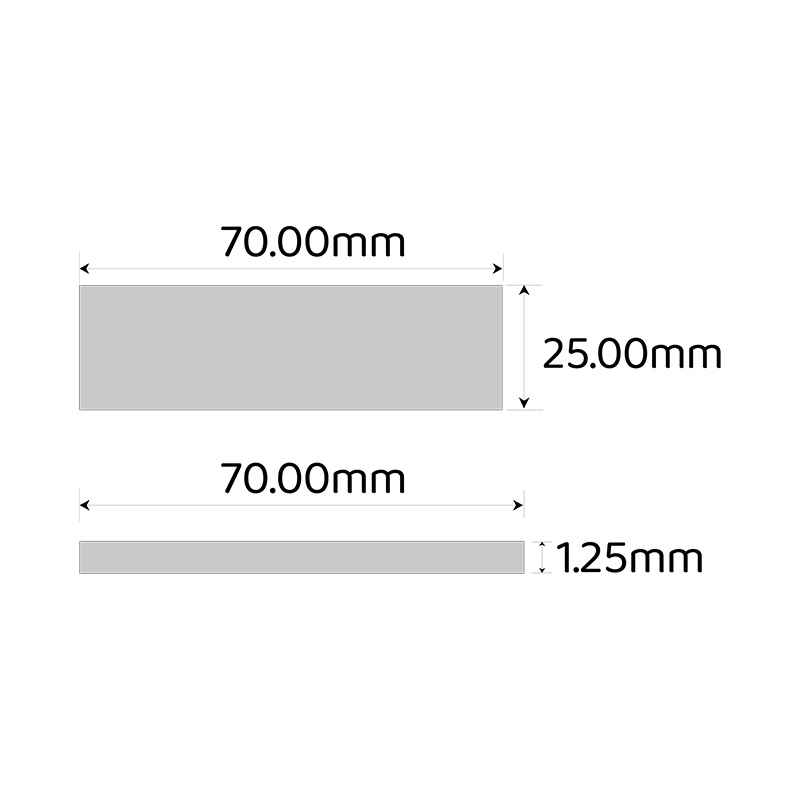

Model GZY-R7025 Size 70(L) x 25(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-7m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
