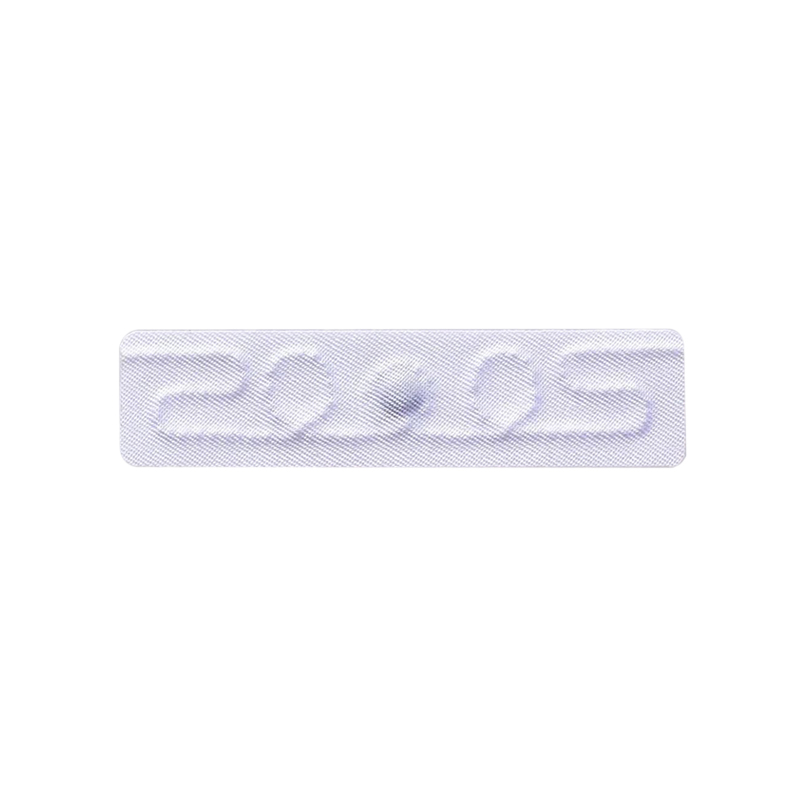

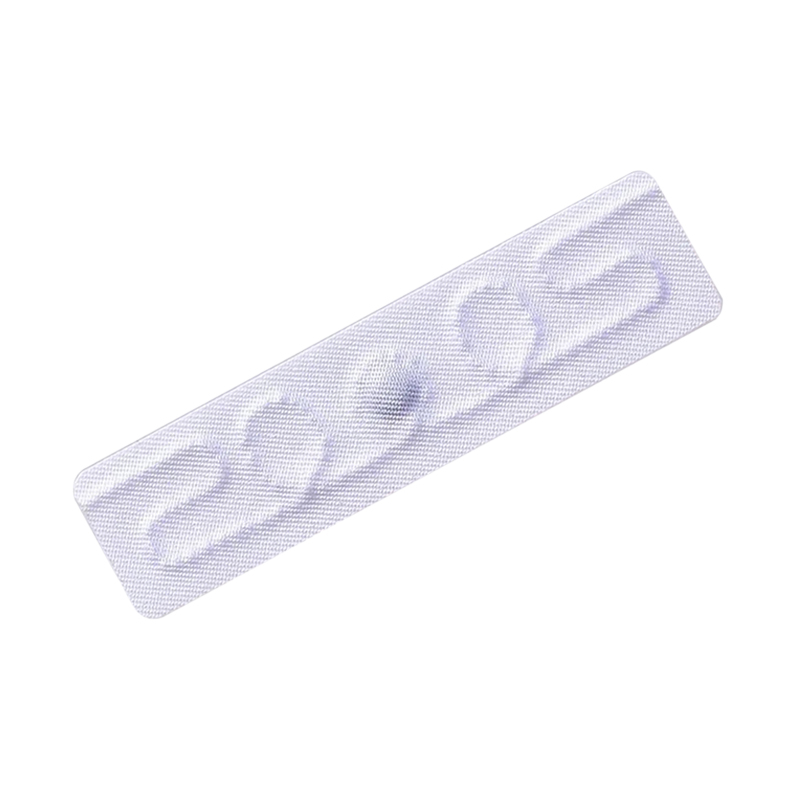

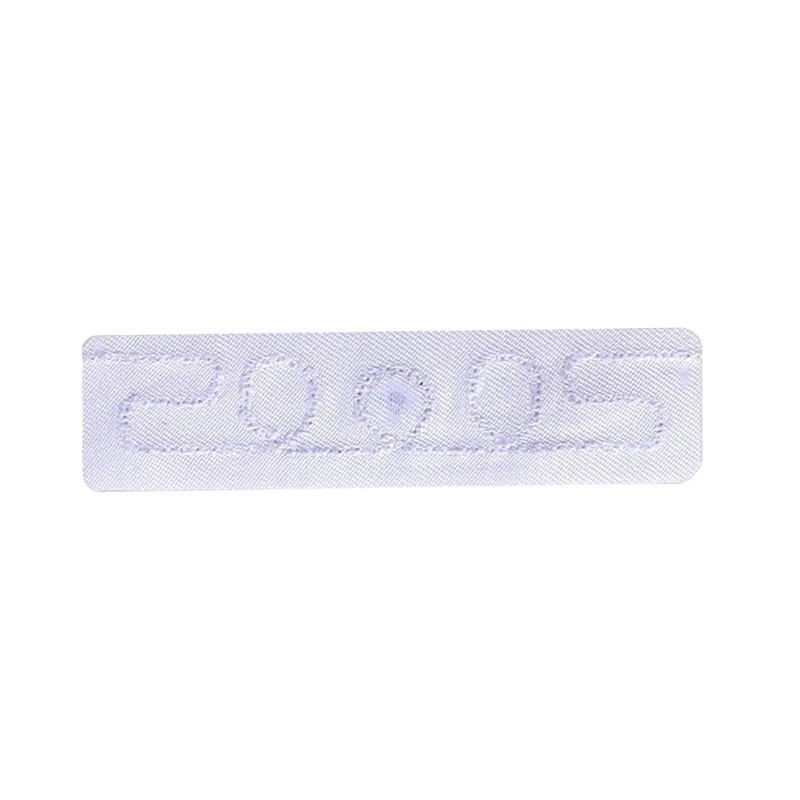

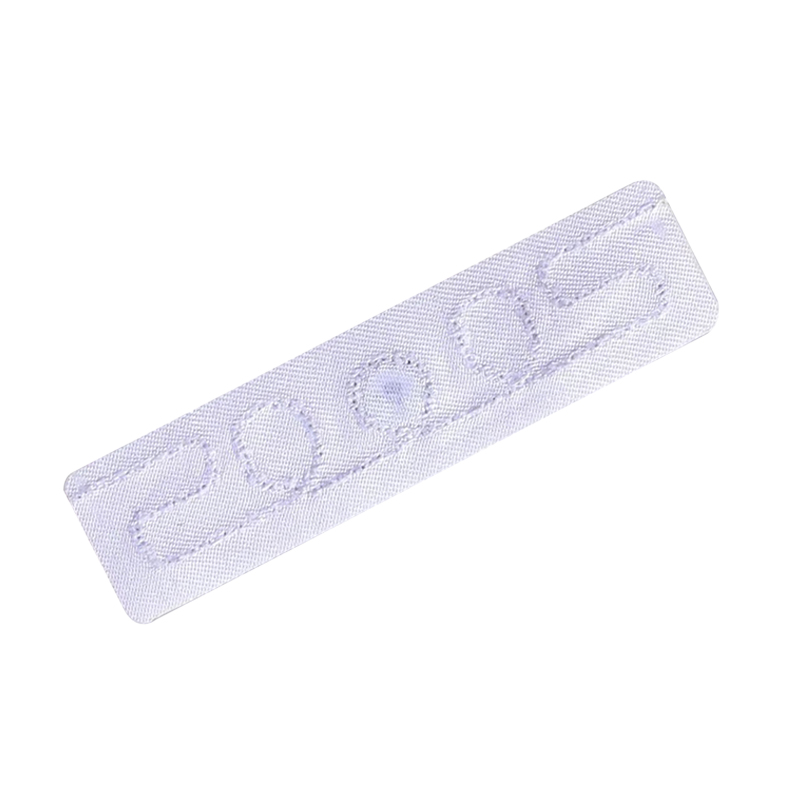

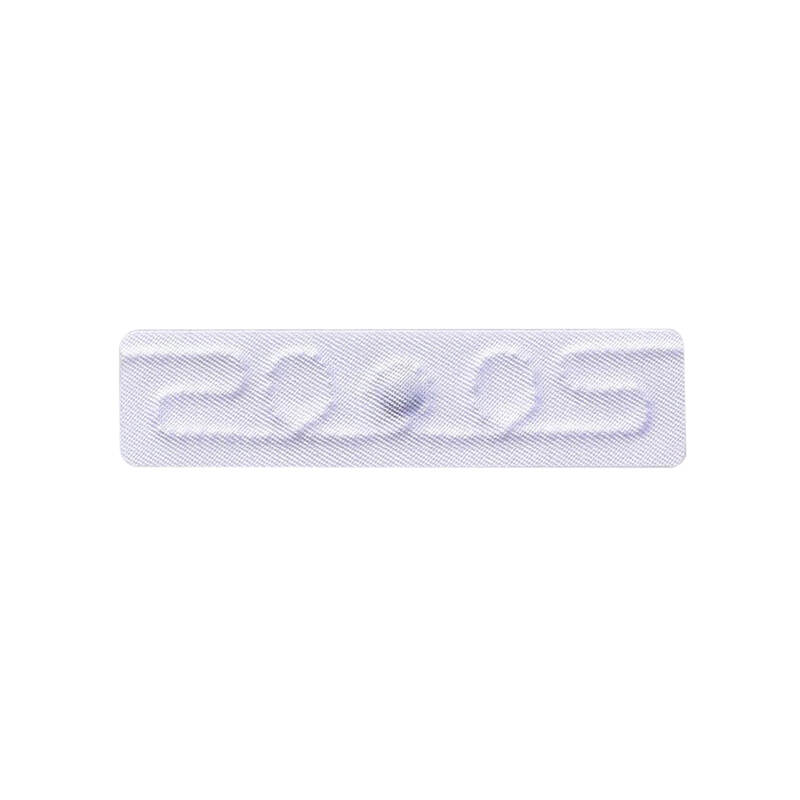

GZY-X5815
Reusable UHF RFID laundry tag
This long strip-shaped textile label measures 58×15 millimeters and thickness is only 1.5 millimeters. It is soft and foldable. With a maximum reading distance of up to 10 meters, it performs exceptionally well. It can be sewn onto the hem or woven into the protective cover, making it suitable for the management of a large number of laundry assets (such as bed sheets and work uniforms) that require long-distance identification.
/
Micro anti - metal RFID tag
Features
-
58x15mm Strip Design -
up to 6.0 Meter -
Soft Textile Material -
Resistant to Washing, Drying, and Ironing -
Sewn Installation in Hem -
IP68 Protection Rating
Specifications
-
Physical Features
Model GZY-X5815 Size 58(L)mm x 15(W) x 1.5(H)mm
Material Textile
Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods 215℃@12-15 seconds heat sealing or thread installation (sewing) Package details 500Pcs/bags
Weight 0.6g
Chemicals Normal common chemicals in the washing processes
Colour White Mechanical Resistance Up to 60 bars Operating Temp 1) Washing: 90℃(194οF), 15 minutes, 200 cysle
2) Pre-drying in Tumbler: 180℃(320οF), 30minutes
3) Ironer: 180℃(356 ο F), 10 seconds, 200 cycles
4) Sterilization Process: 135℃(275οF), 20 minutes -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode9; M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-10m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
Estimated Lifetime 200 washing cycles or 2 years -
Others Features
Application ●Management of uniforms；
●Medical apparel management；
●Military clothing management；
●Personnel patrol management.IP Rating IP68
