GZY-R1808
Printable small anti-metal RFID label
The ultra-small flexible tag measures only 18×8mm in size and has a thickness of 1.23mm. It is the most compact model in the series. The farthest reading distance on the metal surface is 0.8 meters. It supports roll packaging and surface printing, and is suitable for identifying metal assets in extremely limited spaces, such as small tools and precision equipment.
/
Micro anti - metal RFID tag
Features
-
Ultra-Thin Flexible Design: 1.23mm Thick -
0.8 Meters -
IP68 Rating -
Industrial-Grade Print -
-40℃ to +85℃ -
Adhesive for Multi-Surface
Specifications
-
Physical Features
Model GZY-R1808 Size 18(L) x 08(W)x 1.23(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive

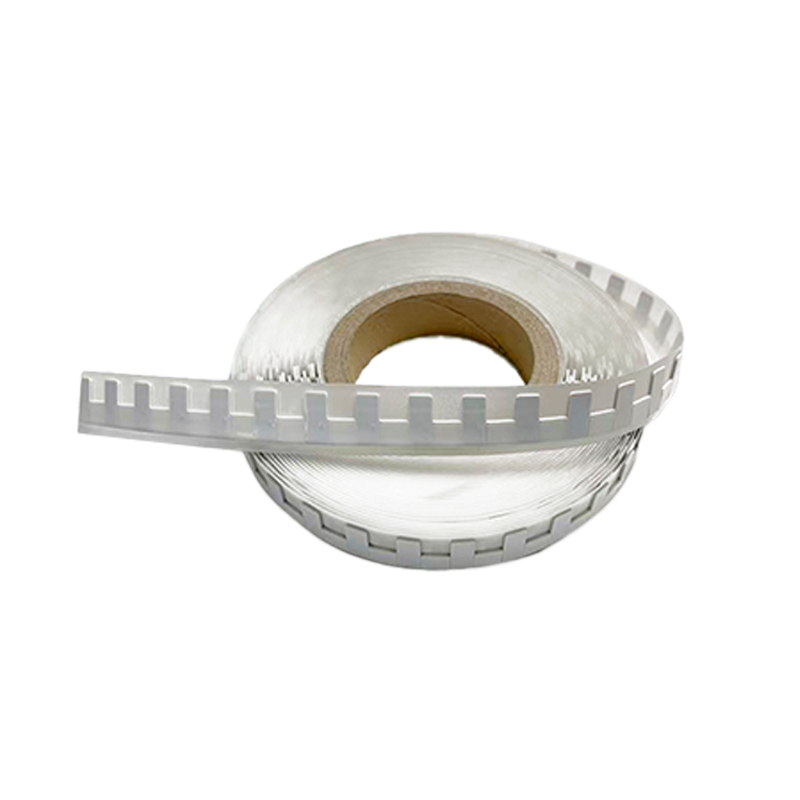

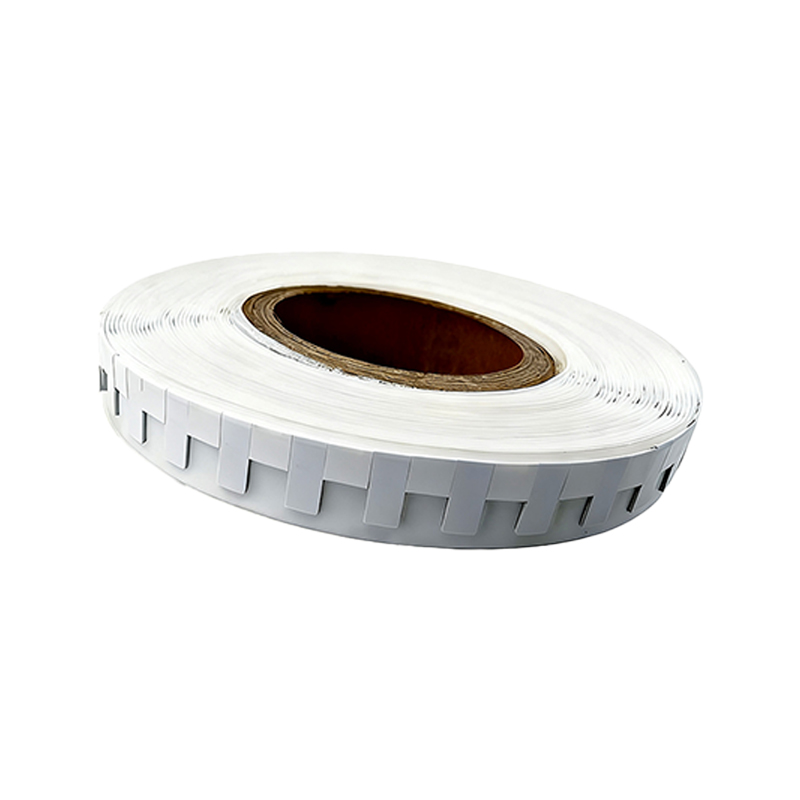

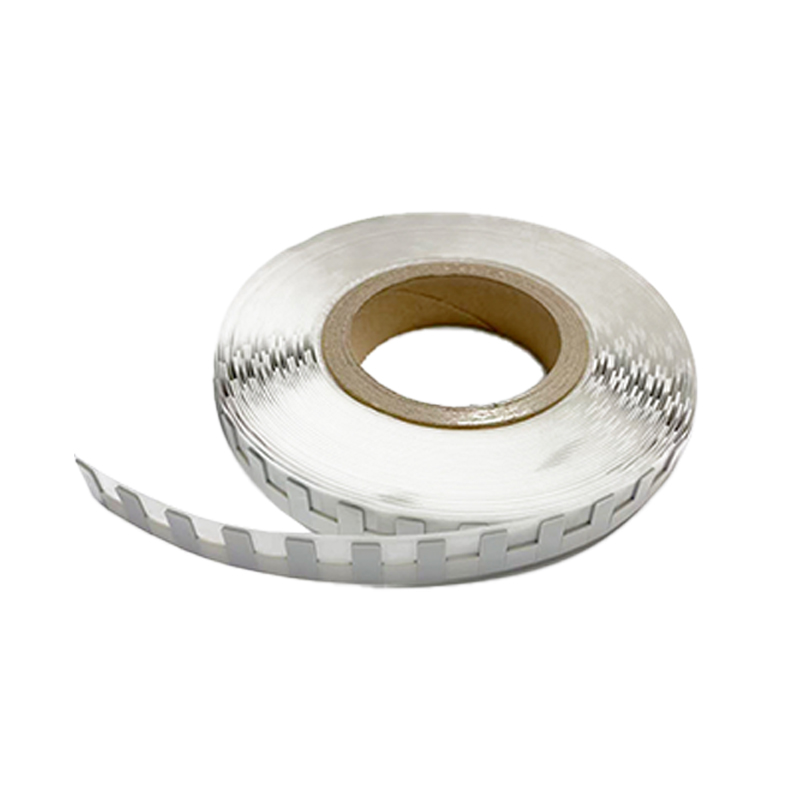

Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.6kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-0.8m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
