GZY-R8040
Printable uhf RFID label
Size: 80×40mm. Flexible for printing. The farthest reading distance on the metal surface is 6.0 meters. The antenna area is large, with balanced performance.It is suitable for metal containers or equipment with a large surface area, which require clear identification and long distance recognition.
/
Micro anti - metal RFID tag
Features
-
Wide Dimensions 80x40mm -
Metal Surface 6.0 Meters -
Resistant to Alcohol and Gasoline -
Supports Qstar and other -

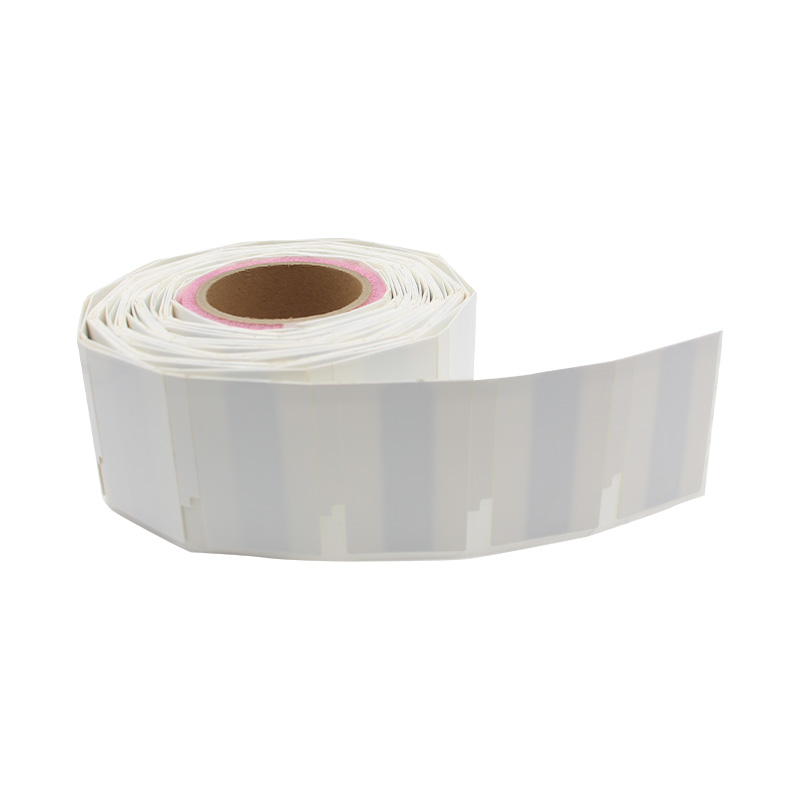

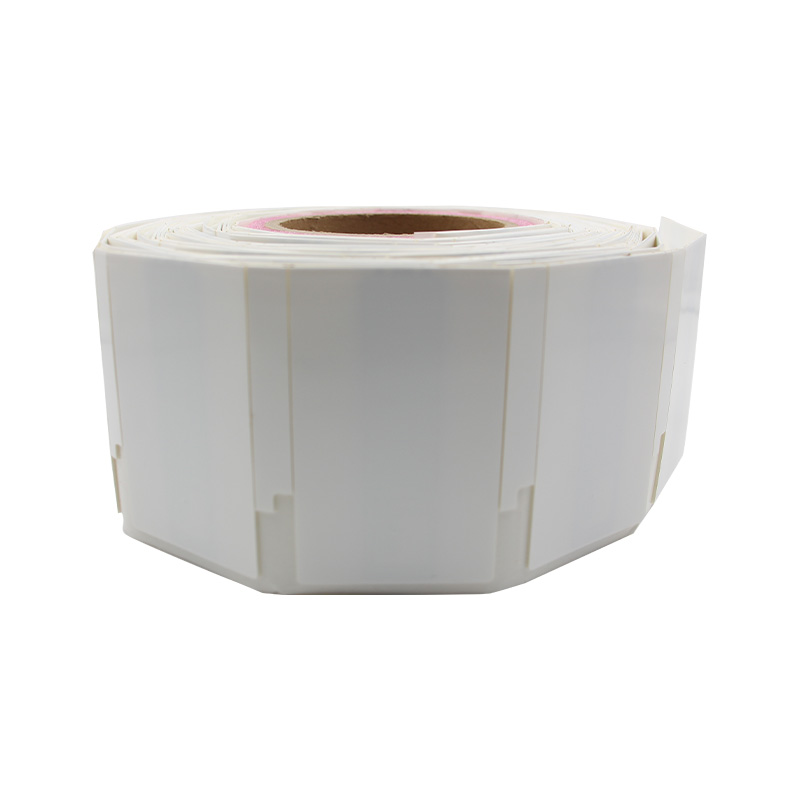

Roll Packaging: 500 Tags/Roll -
Custom Printable White Surface
Specifications
-
Physical Features
Model GZY-R8040

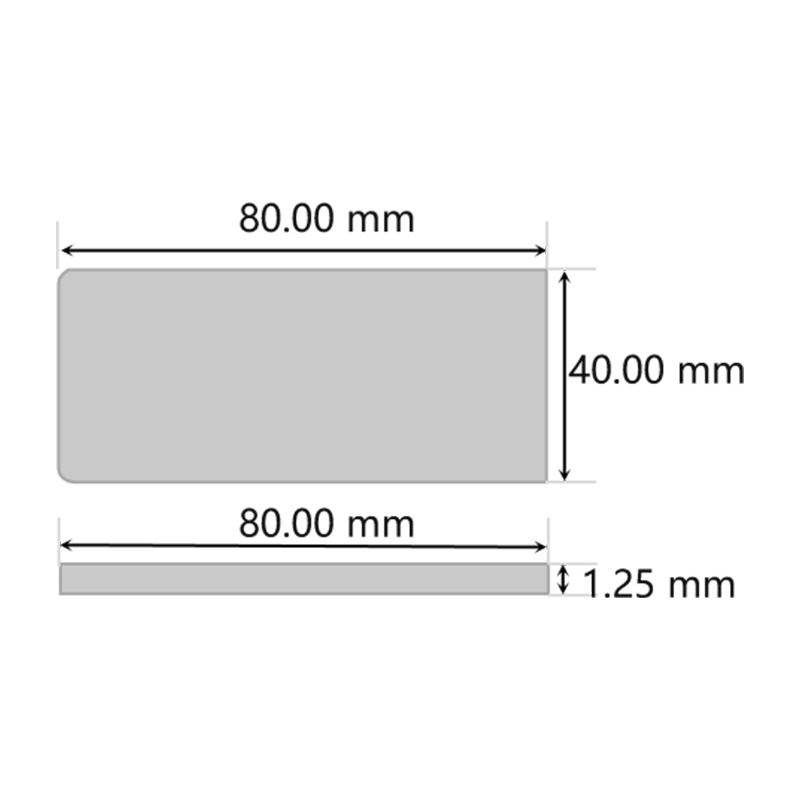

Size 80(L) x 40(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-6m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
