GZY-N2019
Long-Range UHF Anti-Metal RFiD Tags
High-temperature and corrosion-resistant Teflon material label, with a small size of only 20mm and a weight of 1 gram. It supports screw or adhesive installation. The farthest reading distance on the metal surface is 2.7 meters. The working temperature range is -40℃ to +150℃. It is specially designed for harsh industrial environments such as high-temperature molds and pipelines, resistant to acids and alkalis, and oil stains.
/

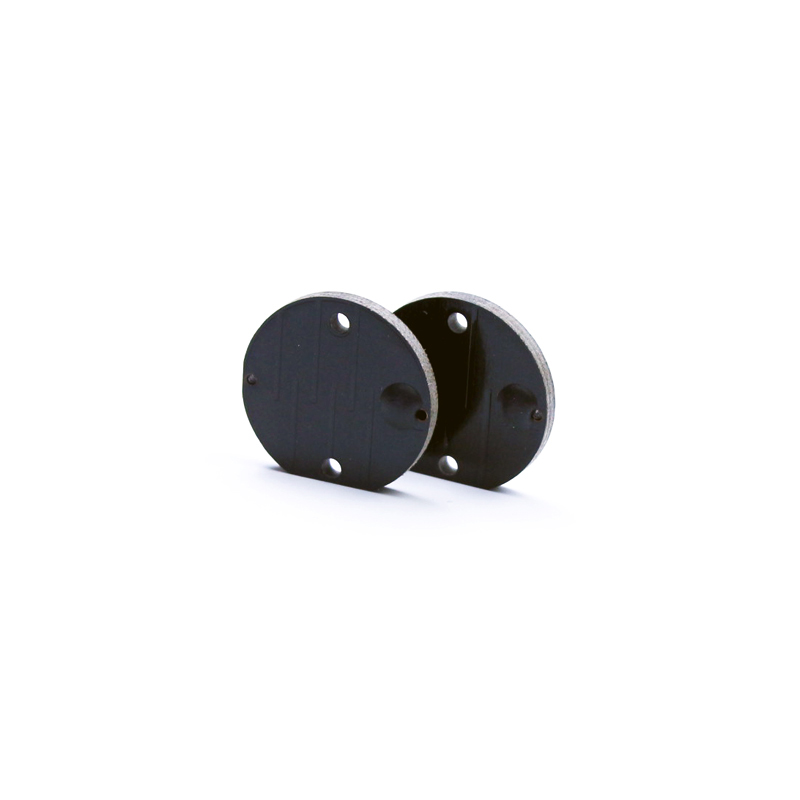

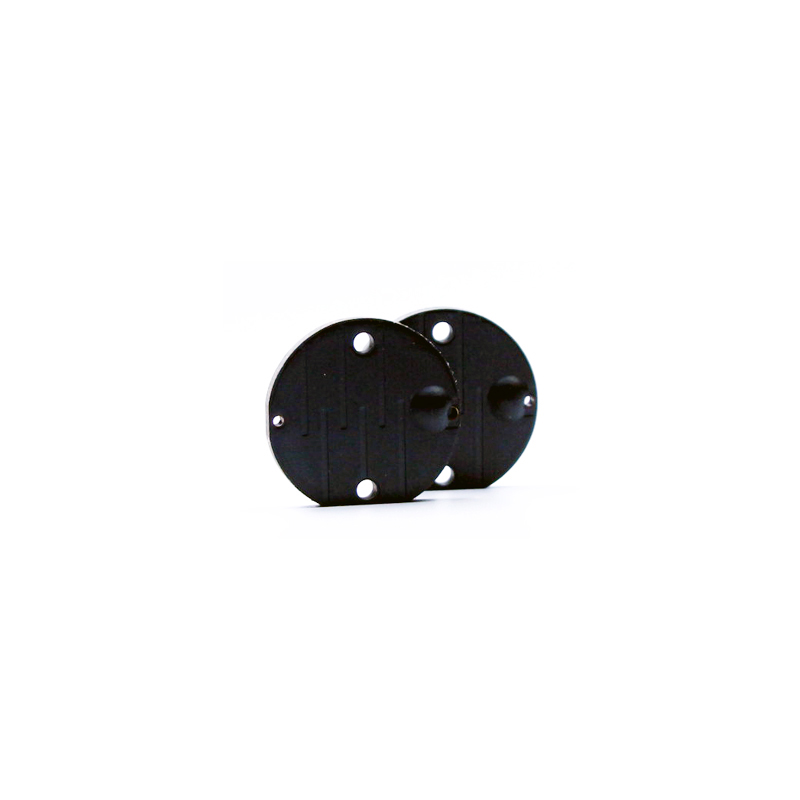

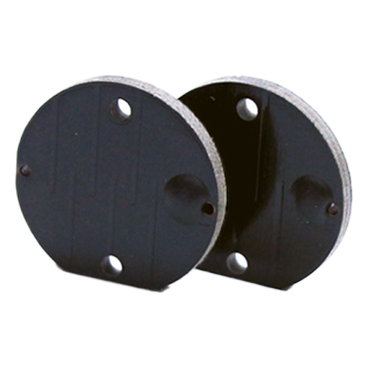

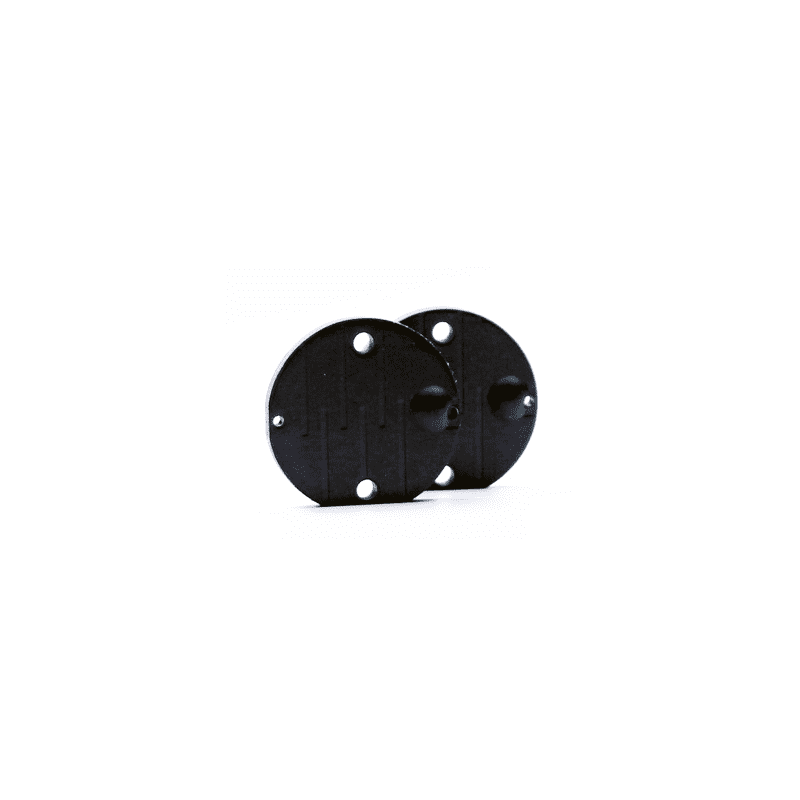

Micro anti - metal RFID tag
Features
-
Large 105x30mm -
Maximum 20 Meters -
IP68 Protection Rating -
Memory Expandable up to 480bit -
Operating Temperature: -40℃ to +85℃ -
Adhesive/Screw/Rivet/Cable Tie
Specifications
-
Physical Features
Model GZY-A105 Size 105(L)x30(W)x7.5(H)mm, (Hole:D5.2mmx2)
Material ABS+PC
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 26.0g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-20.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Applications
