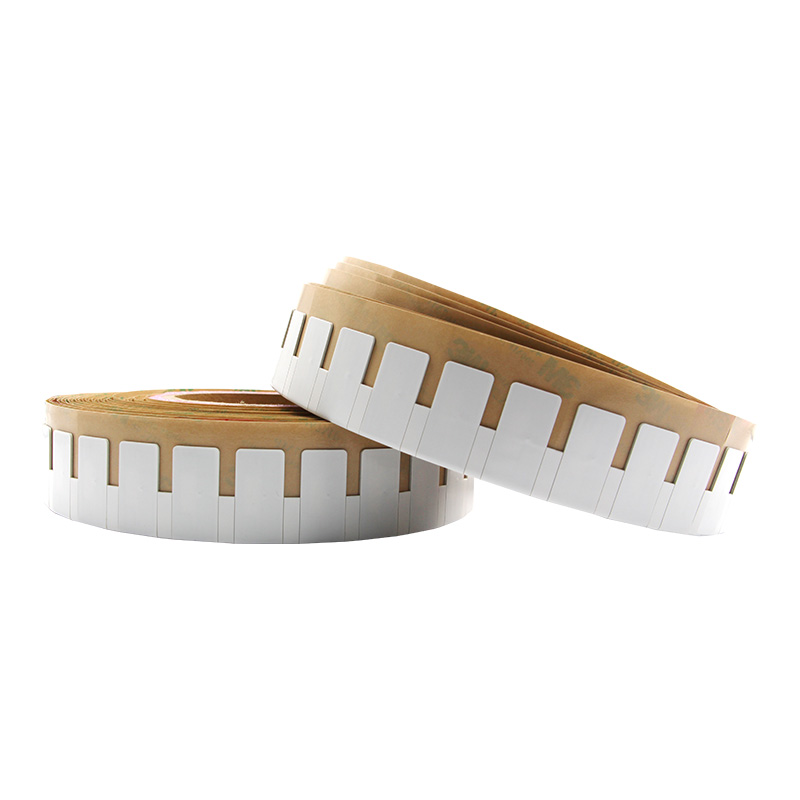

GZY-R3012
Printable on-metal RFID label
Flexible PET material, with a thickness of only 1.25mm and a size of 30×12mm. It supports surface printing and roll packaging. The farthest reading distance on metal surfaces is 0.9 meters. It is applicable to both metal and non-metal surfaces, making it suitable for lightweight scenarios such as IT assets and metal containers that require printing affixation.
/
Micro anti - metal RFID tag
Features
-
30x12mm -
0.9 Meters -
Resistant to Alcohol and Gasoline -
NXP UCODE8/9 / Impinj M730 -
Roll Packaging for Automationa -
Logo printing
Specifications
-
Physical Features
Model GZY-R3012 Size 30(L) x 12(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730，Monza R6-P(Customized） EPC Memory 96-128bit, TID:64bit
Read distance 0.1-0.9m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
