GZY-32
Integrated USB RFID UHF Reader

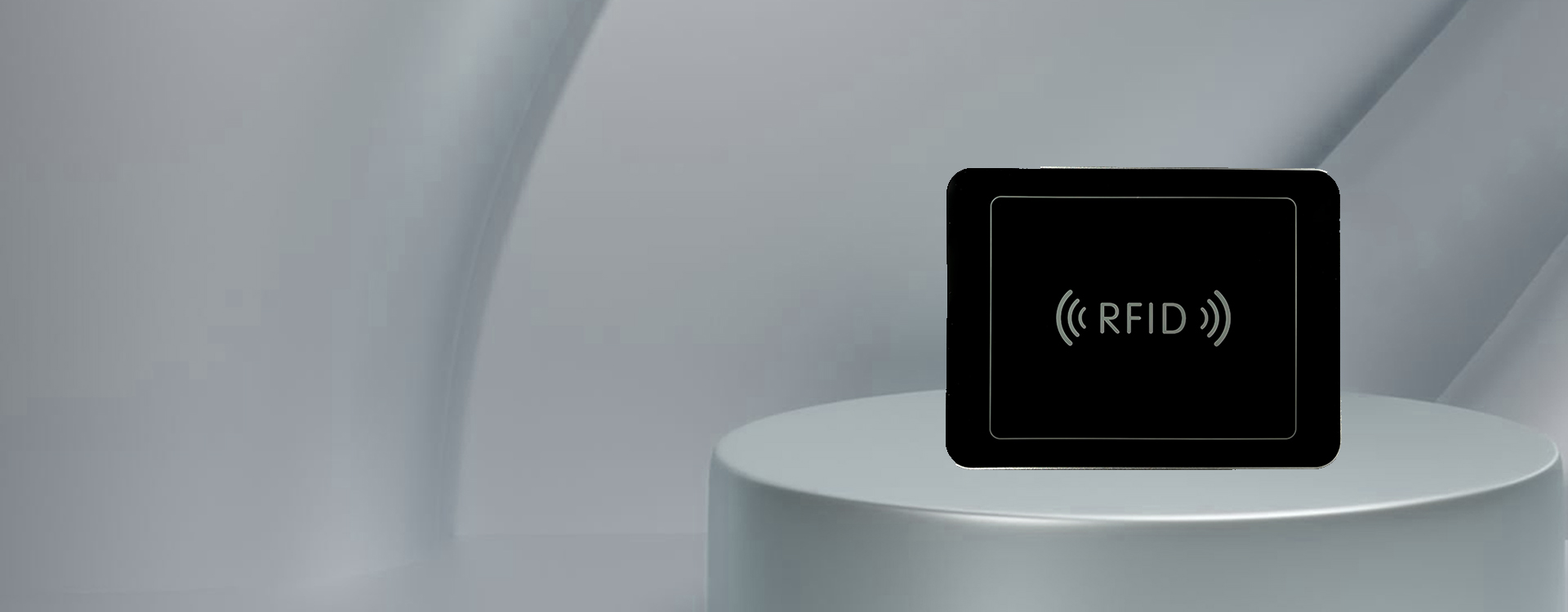

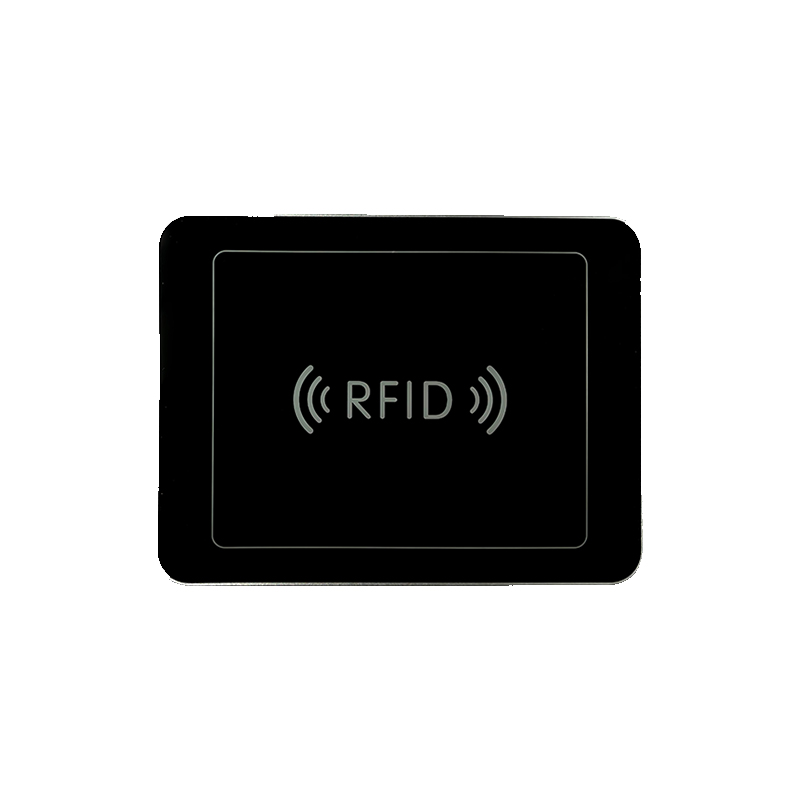

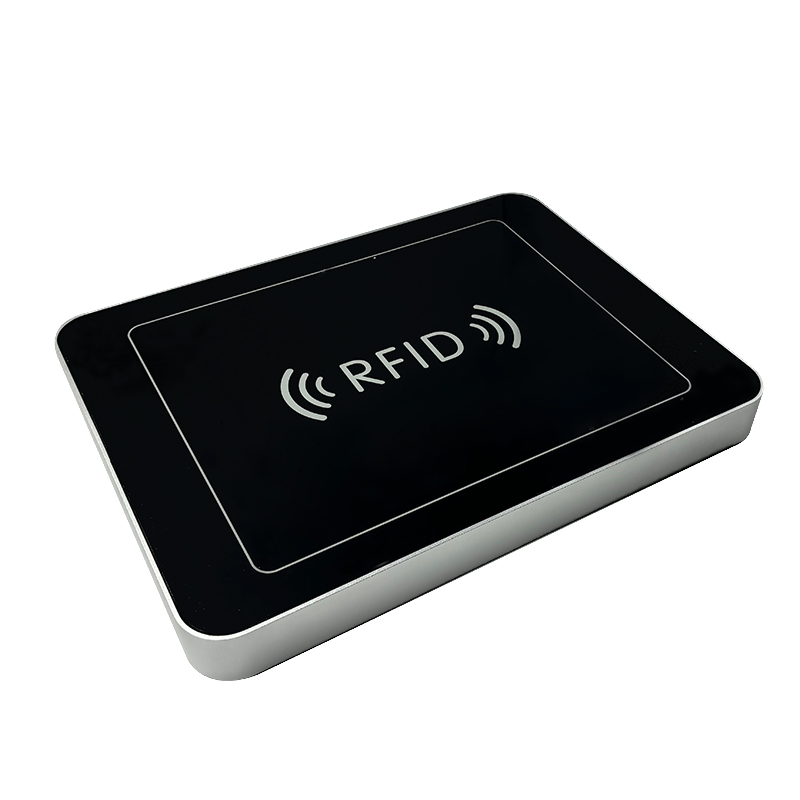

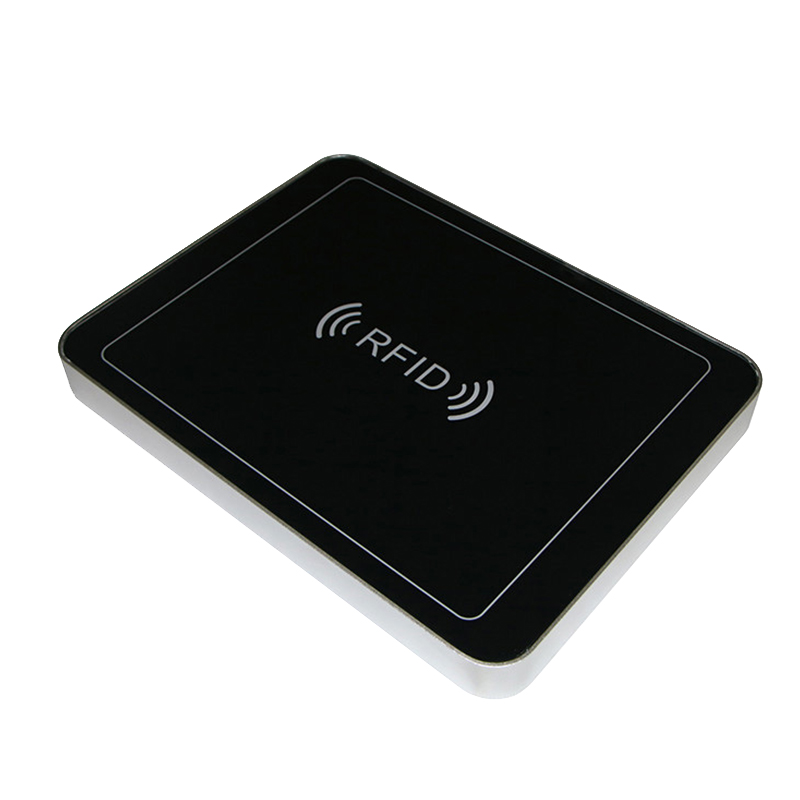

The GZY-32 near-field RFID desktop reader strikes a balance between efficiency and space with its golden dimensions of 370×280mm. Its near-field antenna supports a 300mm radius and can read 50 tags per second. The standard configuration is simulated keyboard/USB-TypeC, and optional Bluetooth/POE network port. With IP54 protection, it is suitable for multiple scenarios such as logistics sorting and library borrowing and returning.
/
USB RFID Desktop Reader/Writer
Features
-
370mm Perfect Fit -
Bluetooth/POE Dual-Mode (Optional) -
Tempered Glass Anti-Scratch Panel -
Simulated Keyboard: Instant Response -
Multi-Protocol Compatibility -
Open-Source Development Examples
Specifications
-
RFID Performance
Air interface ISO-18000-6B、ISO-18000-6C（EPC G2） Frequency range 865-868, 902-928MHZ（customized）
Antenna type Near-field antenna
Polarization mode Circular polarization
Communication interface USB
Application software Provide with DLL, support secondary development
Read distance 0~300mm
Write distance 0~100mm
Chip E310 -
Physical Performance
Dimension 370(L)*280(W)*35(H)mm

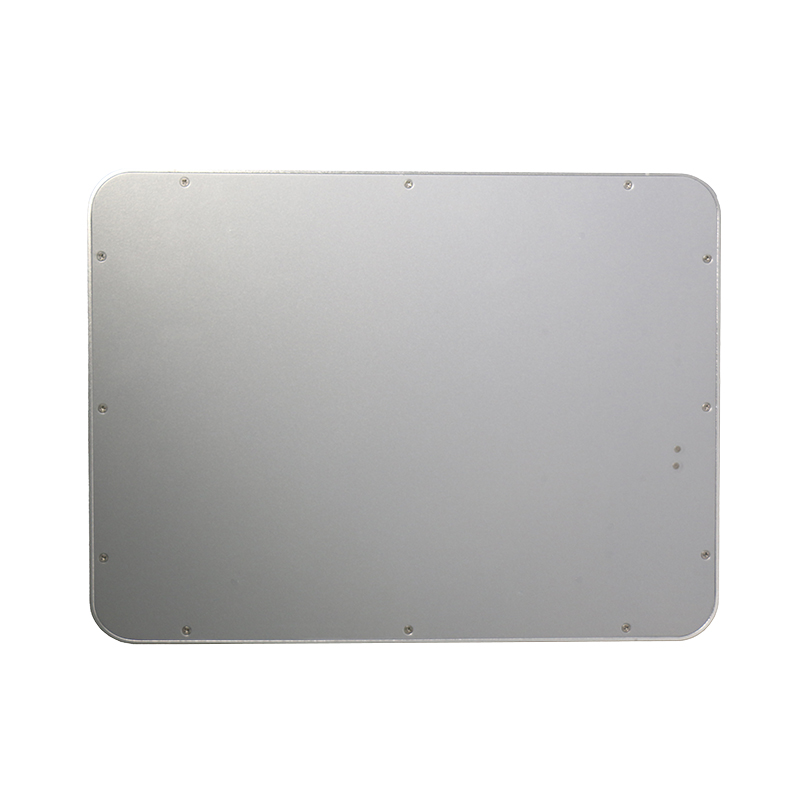

Fuselage material High-strength aluminum profile frame and tempered glass
Weight 1.5Kg Humidity 5% to 95%, non-condensing
Protection grade IEC IP54 Operation temperature -20 ºC to +60 ºC
Storage temperature -40 ºC to 85 ºC
Heat dissipation Air cooled
Applications
