GZY-Z30
Plastic RFlD Tracking Seals Tag

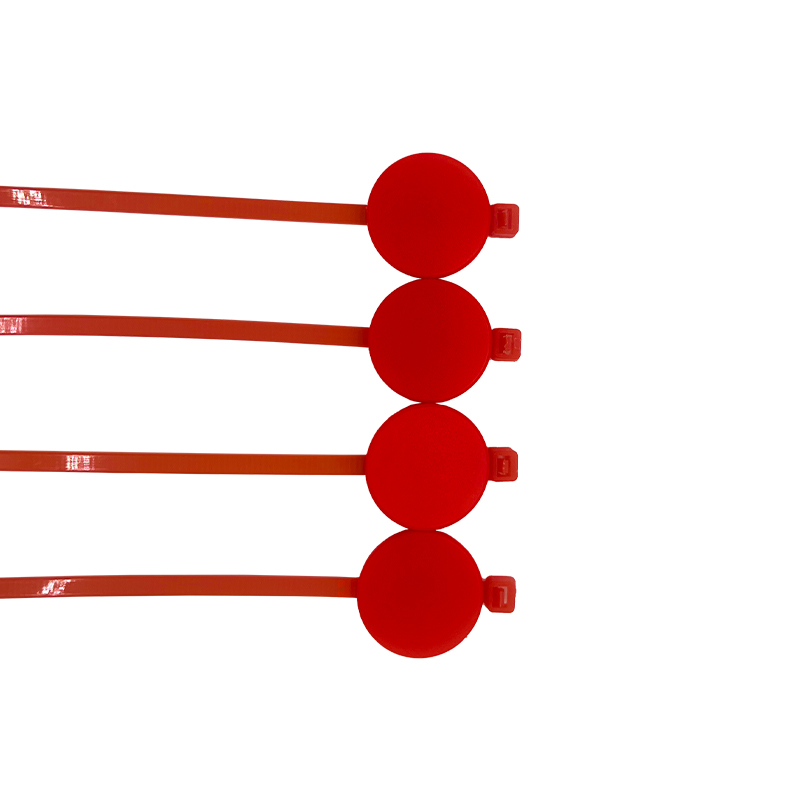

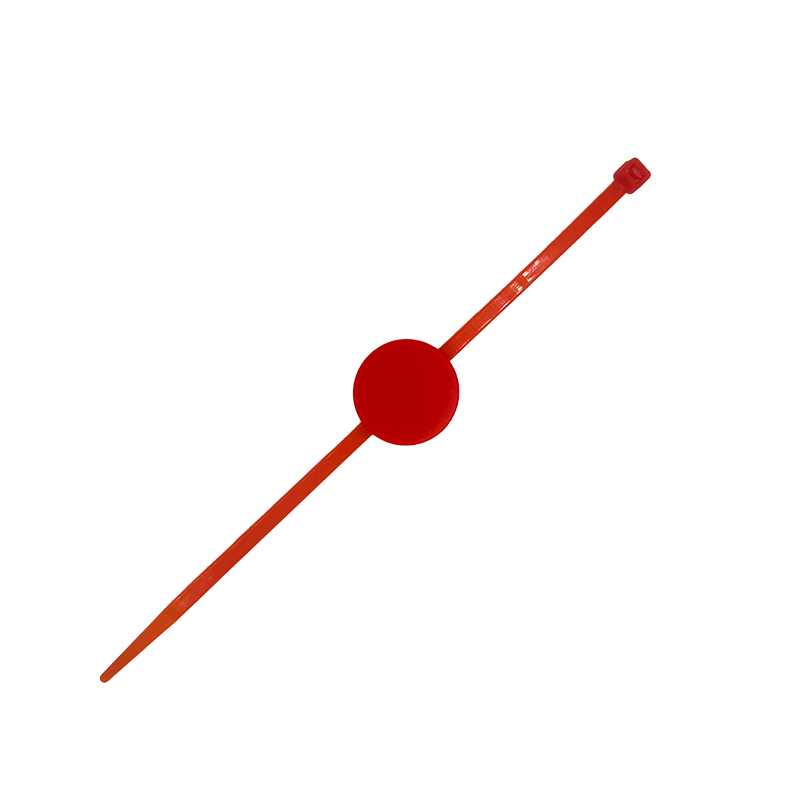

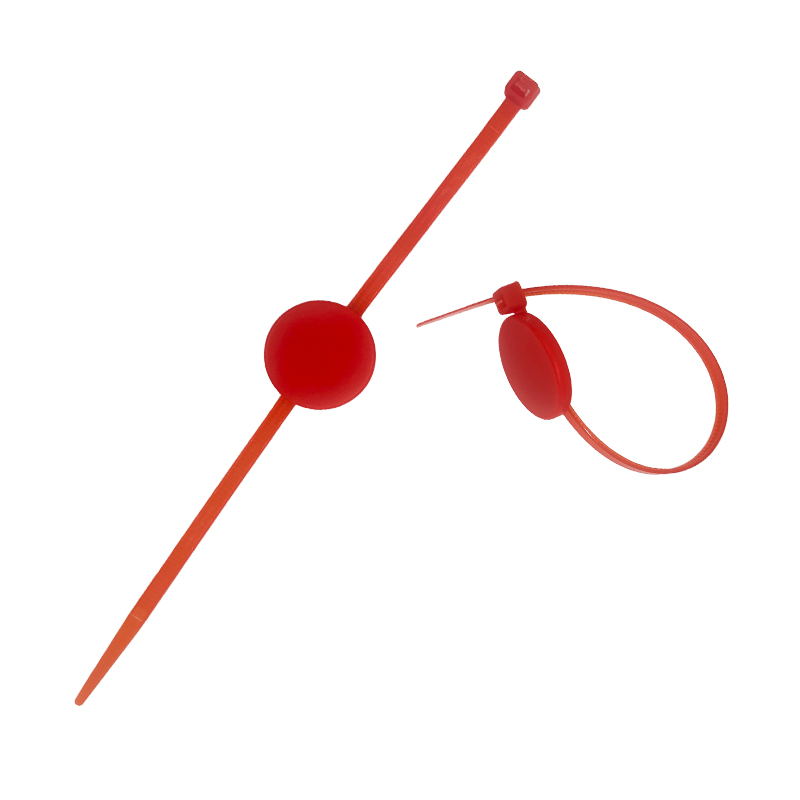

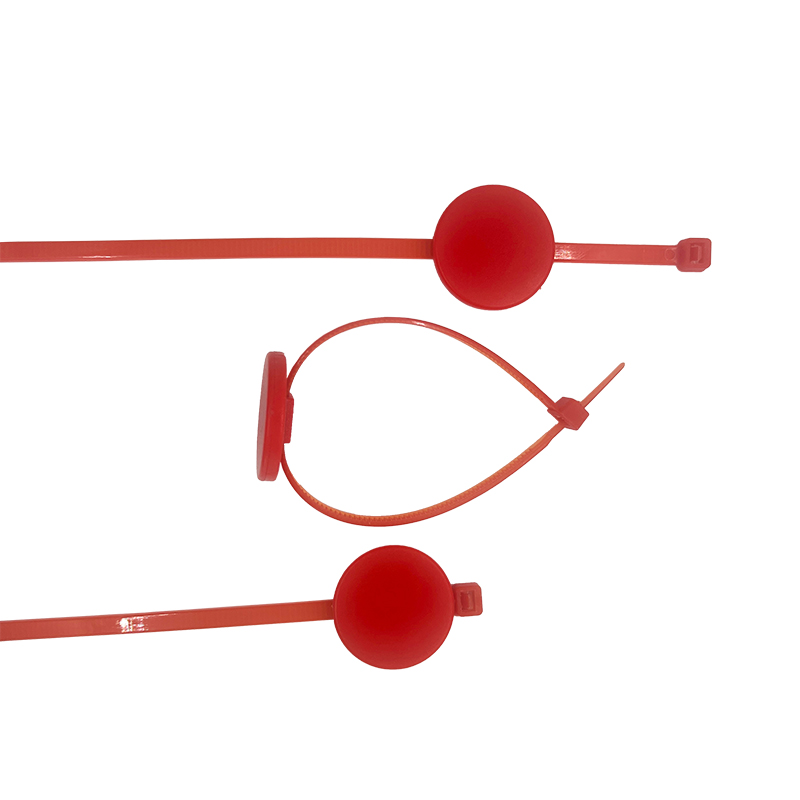

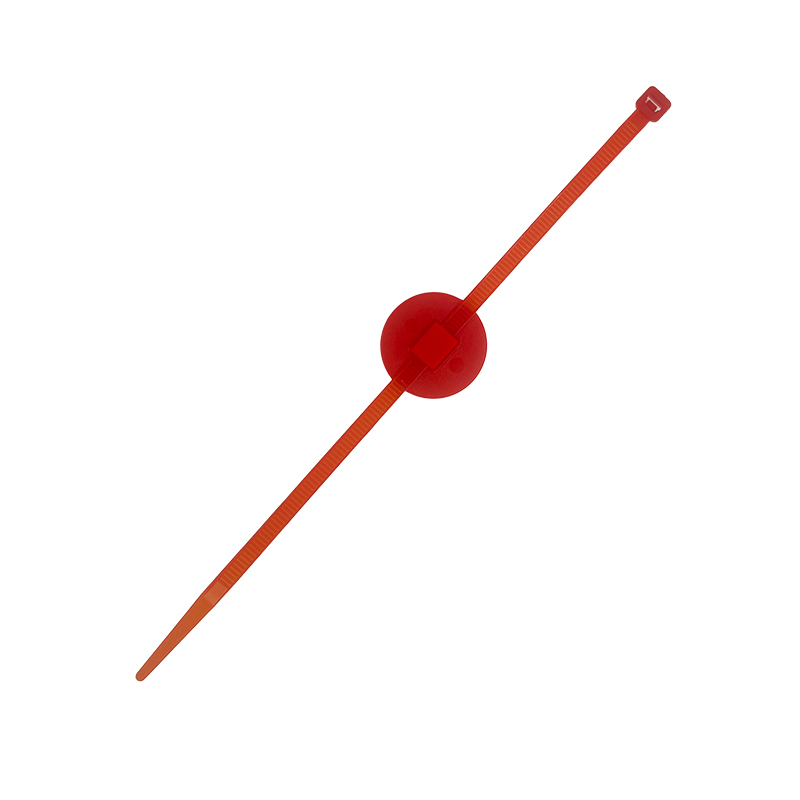

Circular tie label, with a diameter of 30mm, the length is 200mm, and a weight of 3.5 grams. The farthest reading distance is 3.5 meters.Installation is convenient and it is suitable for lightweight bundling and identification scenarios such as food traceability, air parcel transportation, chemical raw material bag closures, etc.
/
Micro anti - metal RFID tag
Features
-
Circular 30mm Diameter -
Maximum 3.5 Meters -
IP67 Protection Rating -
200mm Cable Tie -
Loop Mount Installation -
Suitable for Logistics Warehousing
Specifications
-
Physical Features
Model GZY-Z30
Size 200*30mm
Material PET/Aluminum Foil/Foam
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Seal Package details 500Pcs/bags
Weight 3.5g
Colour White、Black、Blue、Red (Customized)
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9, Alien H3, H9
EPC Memory 96bit, 512bit, 688bit TID:64bit
Read distance 1-3.5m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● Container Management
● Gas Cylinder Tracking
● Warehouse Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
