GZY-P1309
UHF RFID PCB Hard Tag
The 13×9×3mm larger-sized version can optimize the antenna performance. The reading distance on the metal surface is consistent with P1307 (1.5-2.5 meters). It has IP68 protection and is resistant to chemical corrosion. It is suitable for industrial asset management in scenarios requiring stronger signal penetration, such as metal tools and equipment boxes etc.
/
Micro anti - metal RFID tag
Features
-
Dimensions 13x9mm (Enhanced Performance) -
up to 2.5 Meters -
IP68 Protection Rating -
Memory Expandable -
Suitable for Metal Surfaces -
High/Low Temperature Tested
Specifications
-
Physical Features
Model GZY-P1309

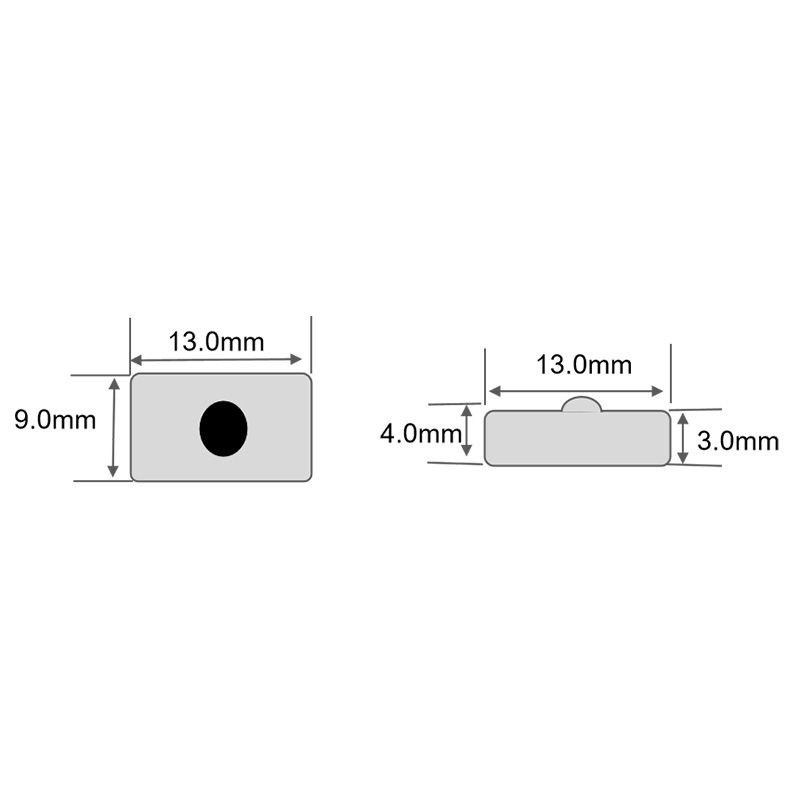

Size 13mmx9mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.7g
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.5m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
