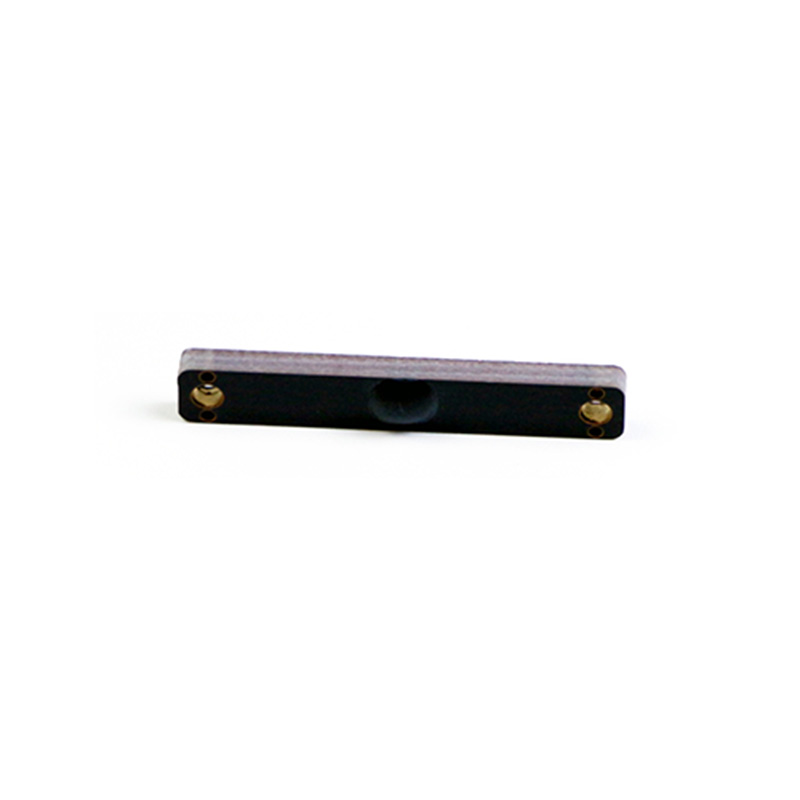

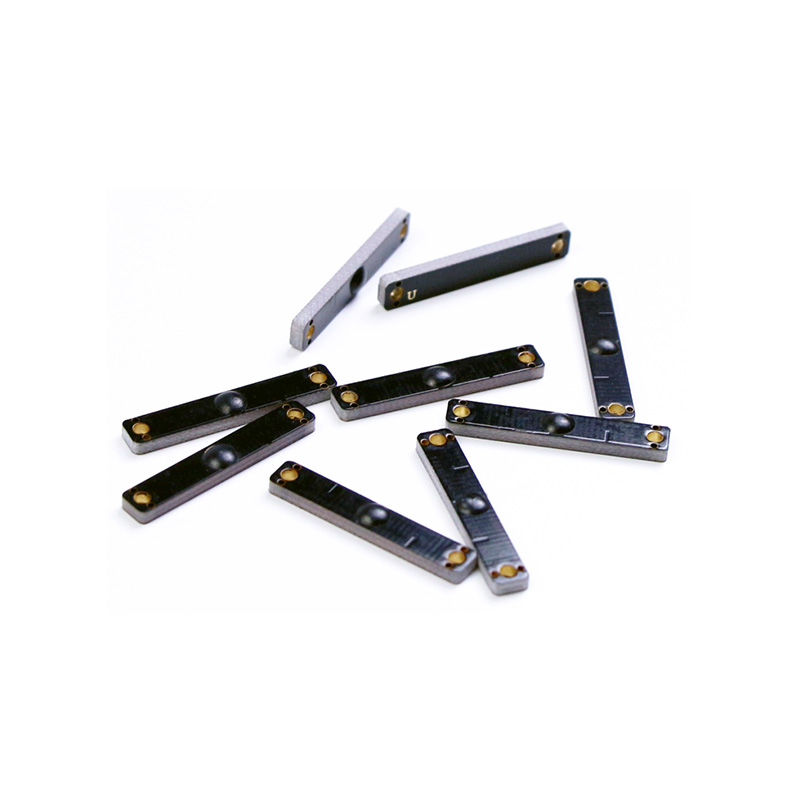

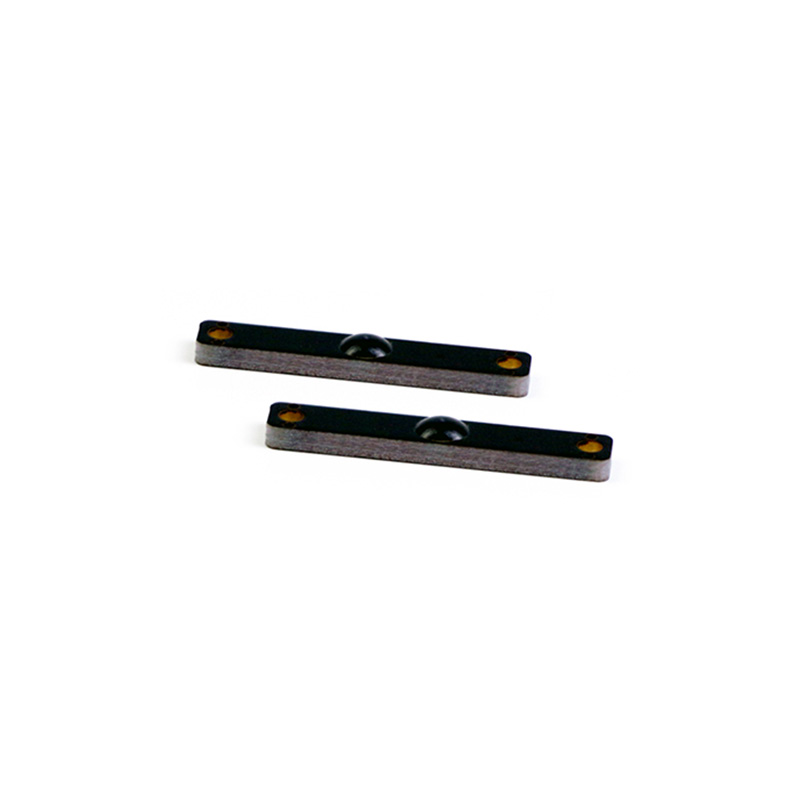

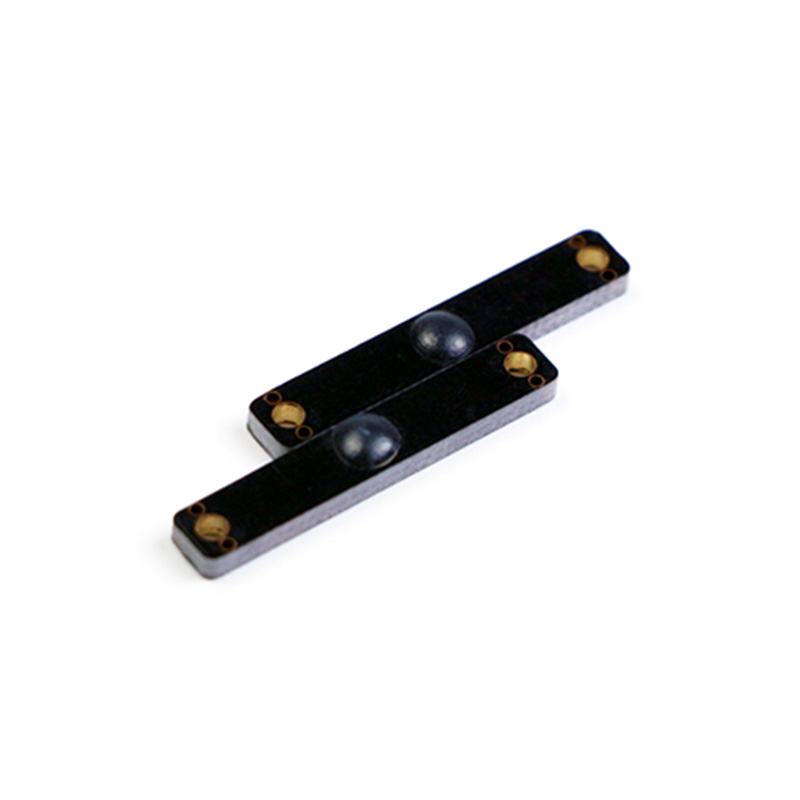

GZY-P305
ISO18000 - 6C RFID PCB tag
Size: 30×5mm, thickness: 2.0mm (including the chip, it is 2.8mm), balanced structure. The farthest reading distance on the metal surface is 3.1 meters.It has passed multiple environmental tests and is suitable for managing metal items such as surgical instruments and small tools that have requirements for size and reliability.
/
Micro anti - metal RFID tag
Features
-
US & EU Standard -
up to 3.1 Meters -
Ultra-Compact for Tight Spaces -
Expandable Memory up to 480bit -
Metal Surface Mountable -
Multiple Mounting Options
Specifications
-
Physical Features
Model GZY-P05
Size 5mmxT4.0mm Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 2g
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.4-1m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
