GZY-R5015
UHF anti-metal RFID tag
Size: 50×15mm, thickness: 1.25mm, flexible for printing. The farthest reading distance on metal surfaces reaches 5.5 meters, making it the farthest reading model in the same series. It is suitable for large and medium-sized metal assets in warehouses, logistics, etc., which have higher requirements for reading distance.
/
Micro anti - metal RFID tag
Features
-
High-Performance 50x15mm -
Metal Surface: 5.5 Meters -
IP68 Protection Rating -
Supports Monza R6-P and other -
Ideal for Warehousing and Asset Management -
Convenient Adhesive
Specifications
-
Physical Features
Model GZY-R5515 Size 55(L) x 15(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive

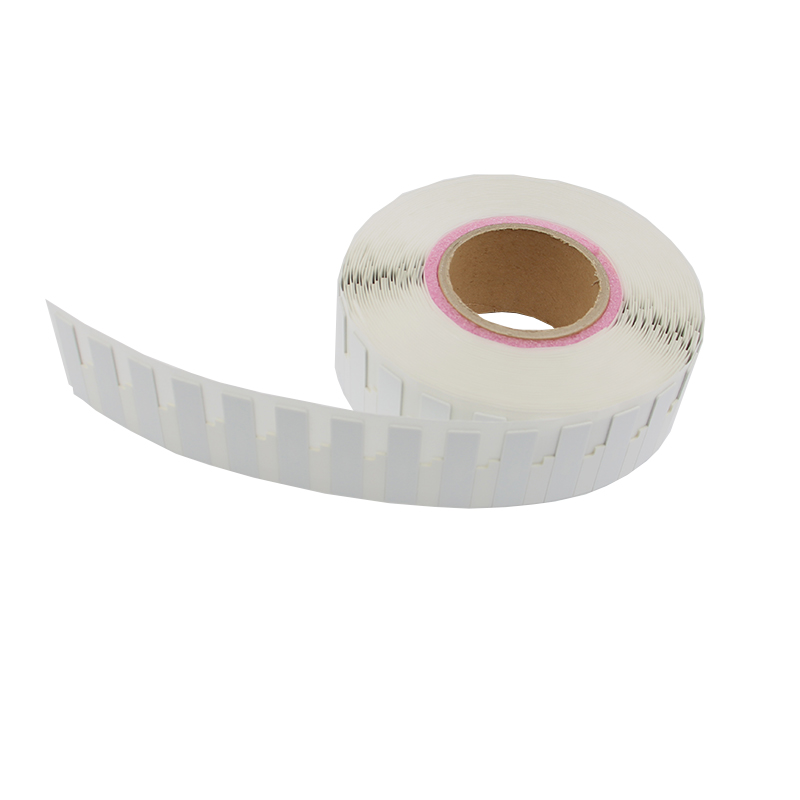

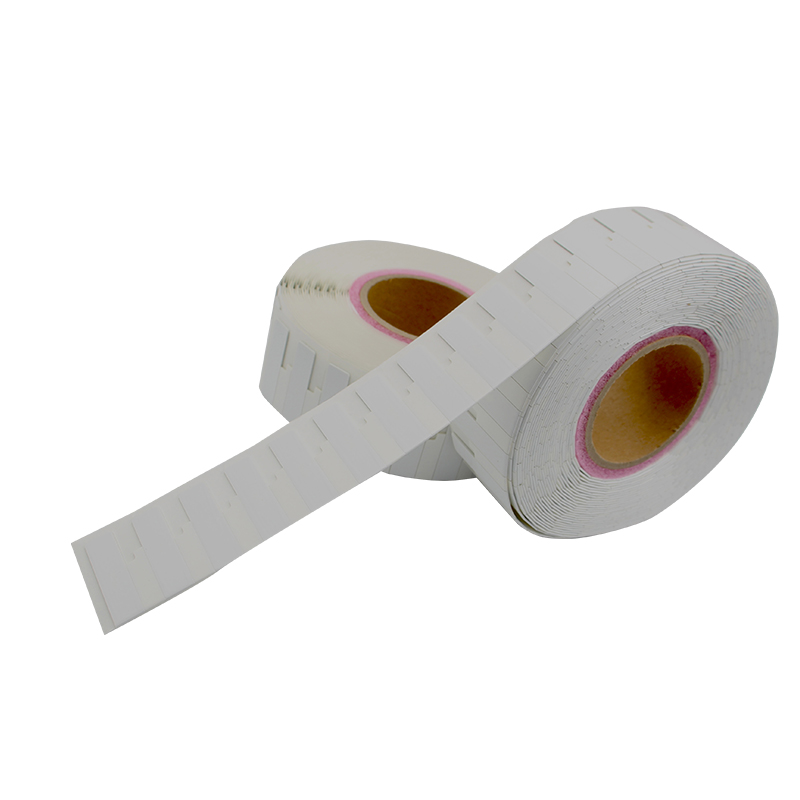

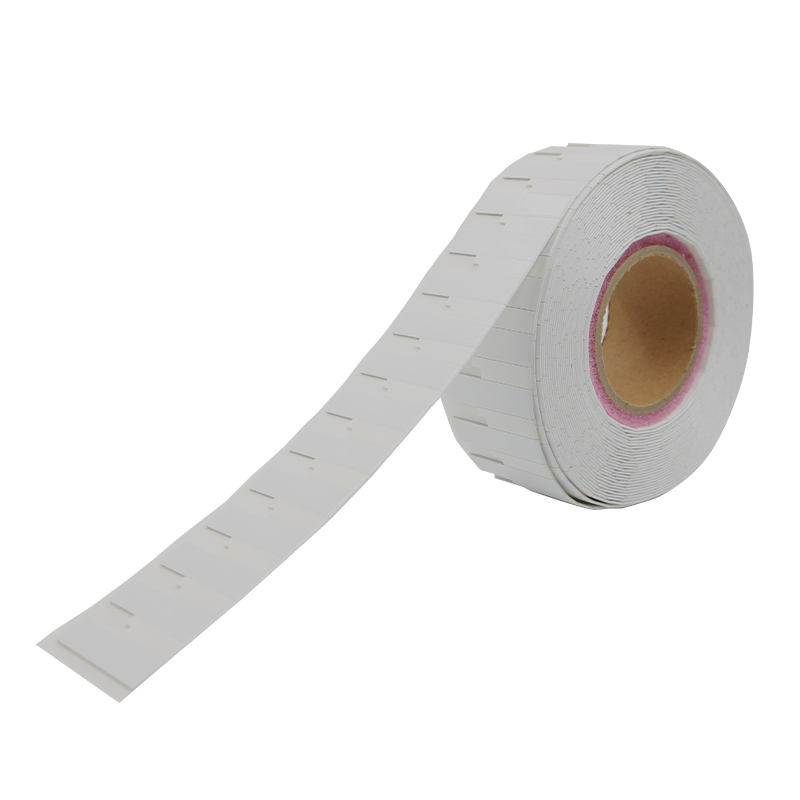

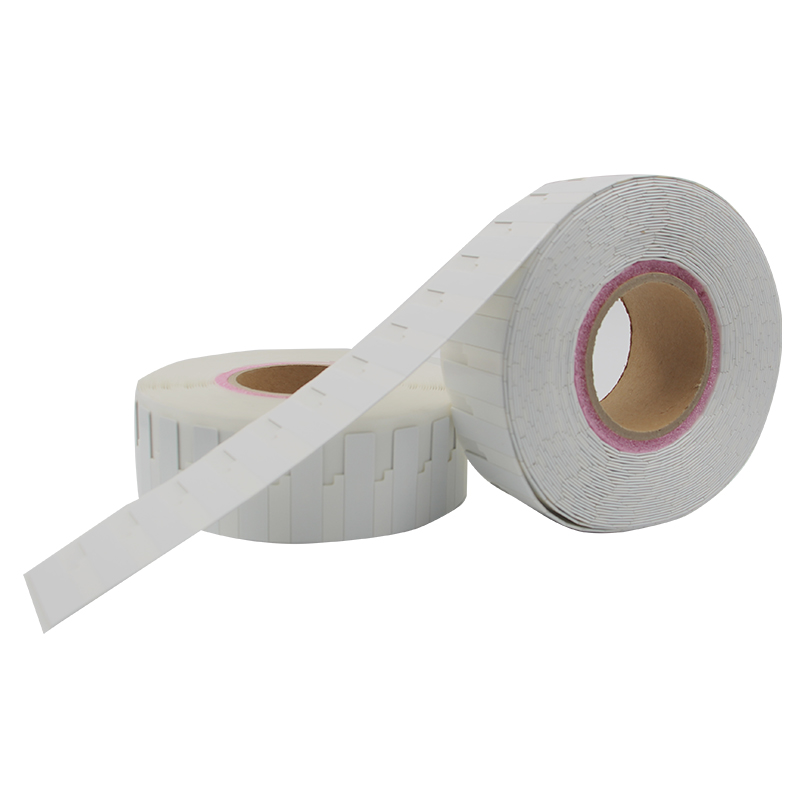

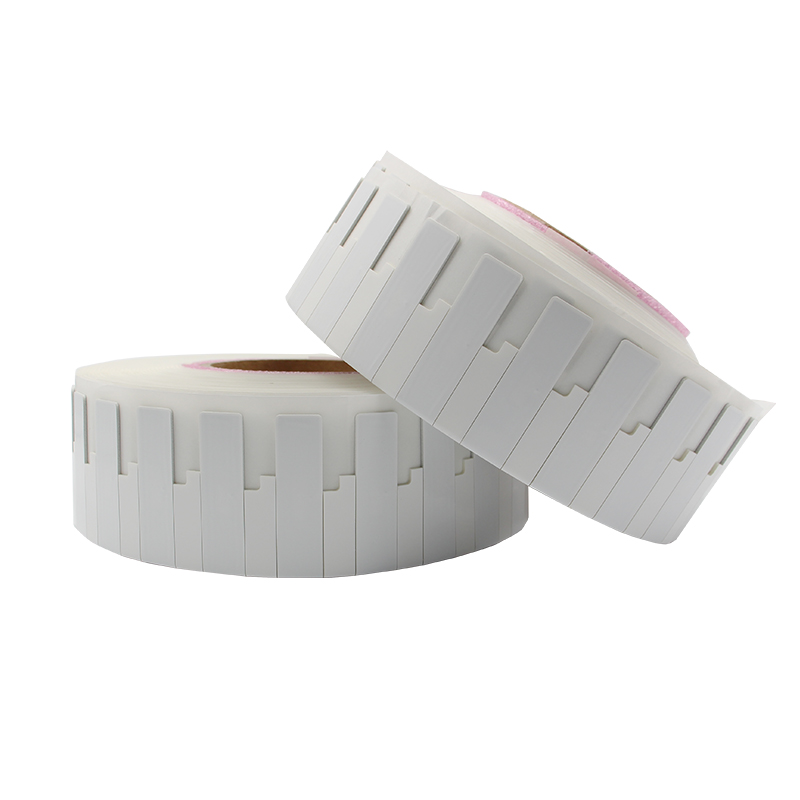

Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-5.5m, On Metal Surfaces (depend on reader performance) Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Warehouse Management
● Medical Laboratory Equipment
● Automotive Components Trackingoptional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
