GZY-A105
Long-Range UHF Anti-Metal RFiD Tags

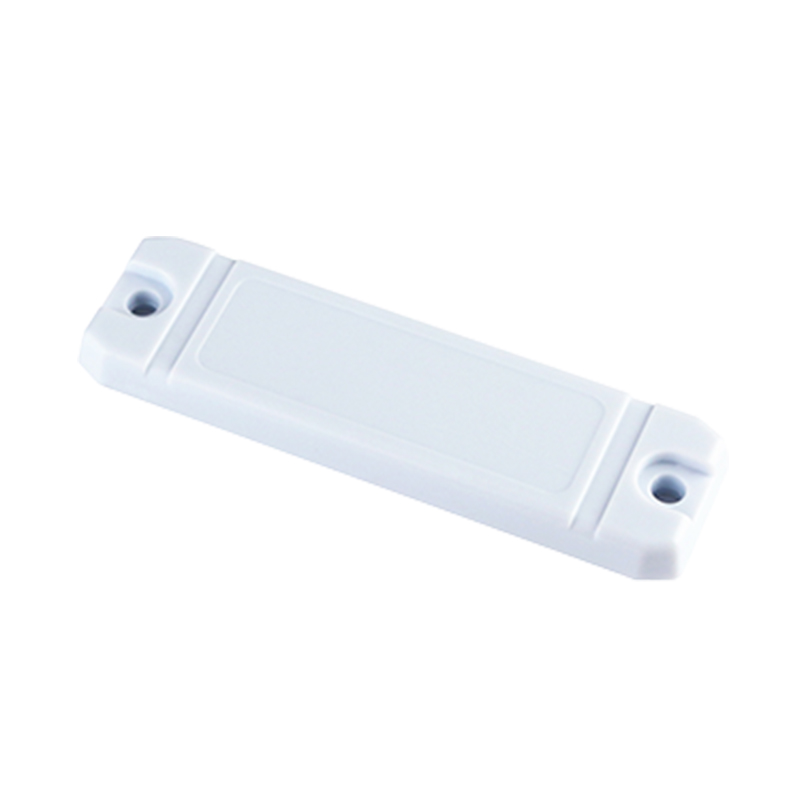

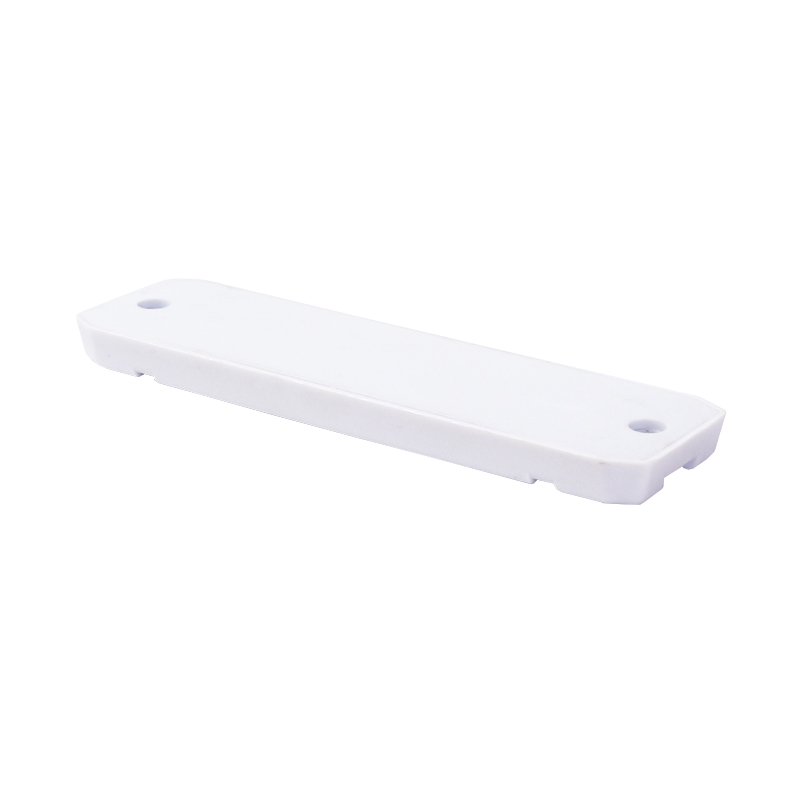

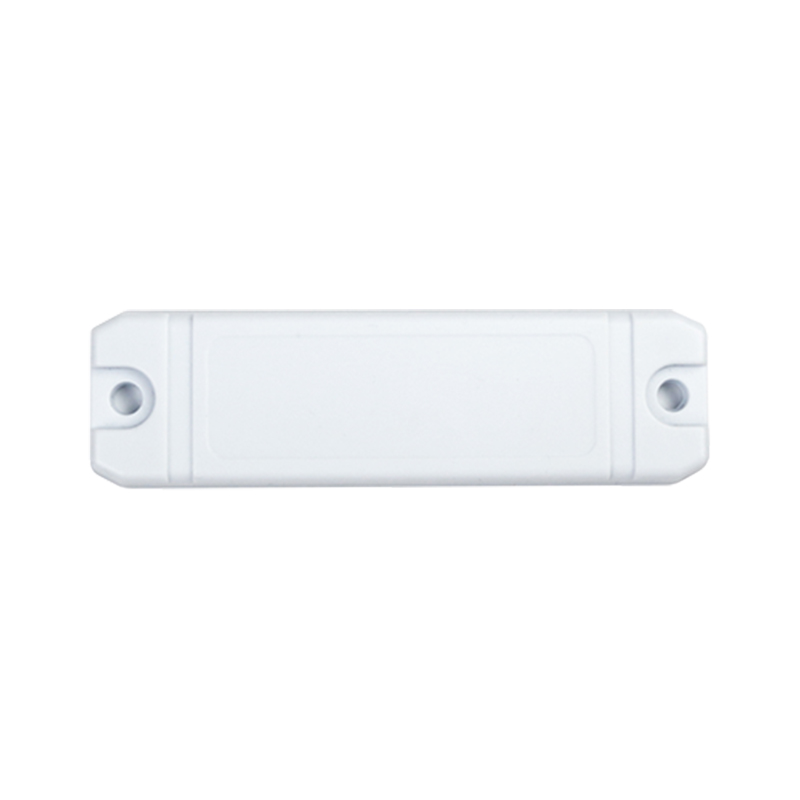

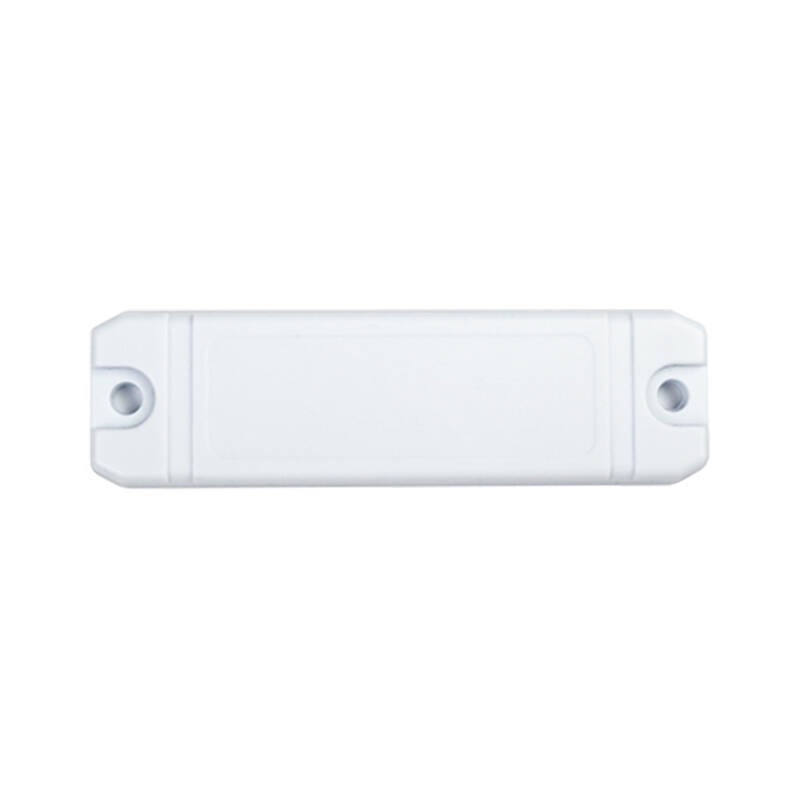

Large-sized ABS label, 105×30×7.5mm, with a sturdy structure and supporting multiple installation methods. The farthest reading distance on the metal surface reaches 20 meters. It has excellent environmental adaptability and is suitable for outdoor assets such as storage, inspection, and public facilities that require ultra-long distance identification.
/
Micro anti - metal RFID tag
Features
-
Large 105x30mm -
Maximum 20 Meters -
IP68 Protection Rating -
Memory Expandable up to 480bit -
Operating Temperature: -40℃ to +85℃ -
Adhesive/Screw/Rivet/Cable Tie
Specifications
-
Physical Features
Model GZY-A105 Size 105(L)x30(W)x7.5(H)mm, (Hole:D5.2mmx2)
Material ABS+PC
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 26.0g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-20.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
