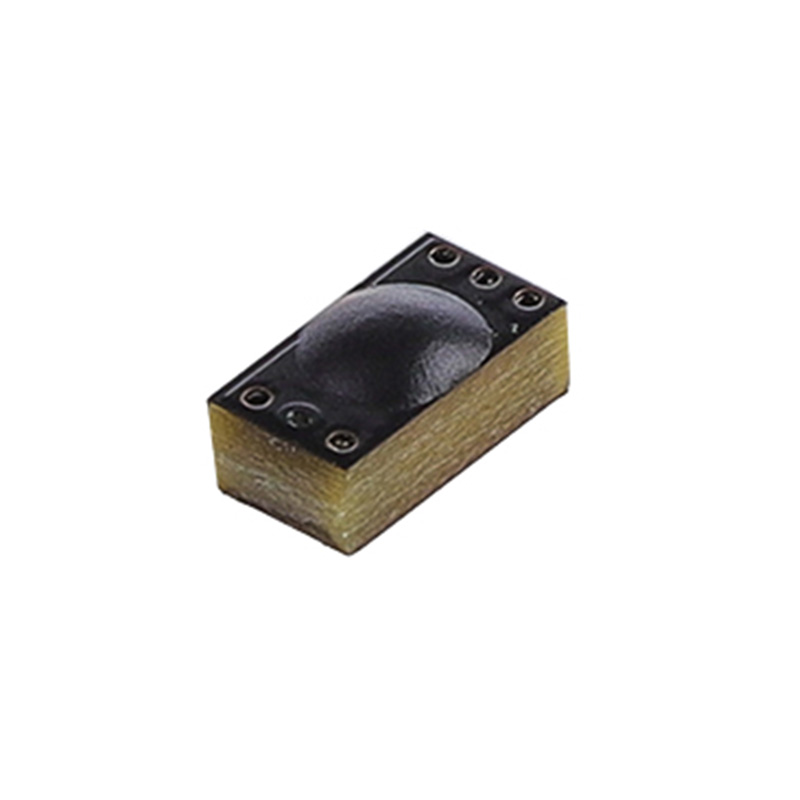

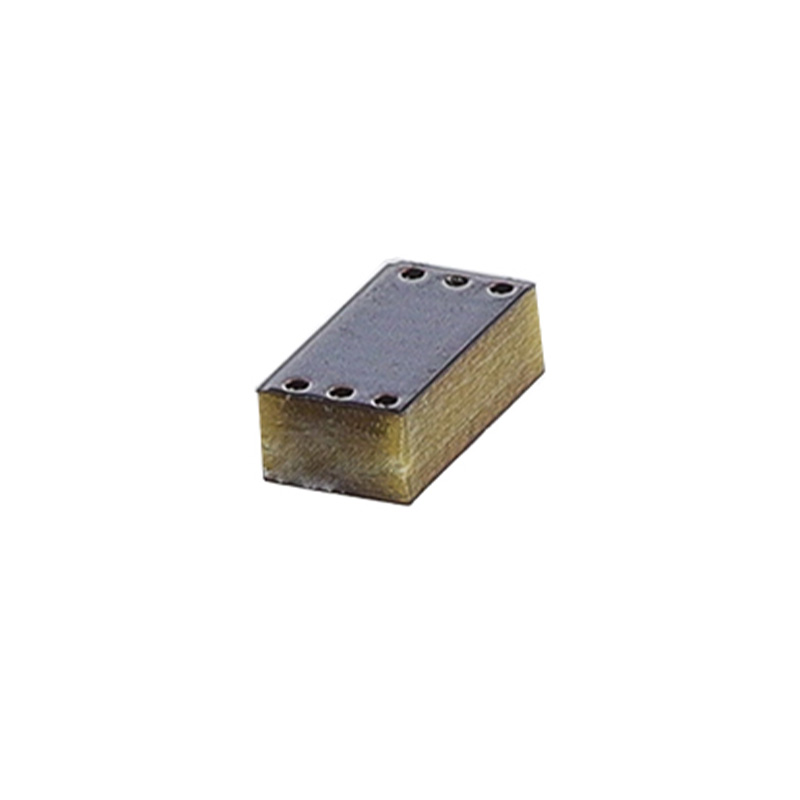

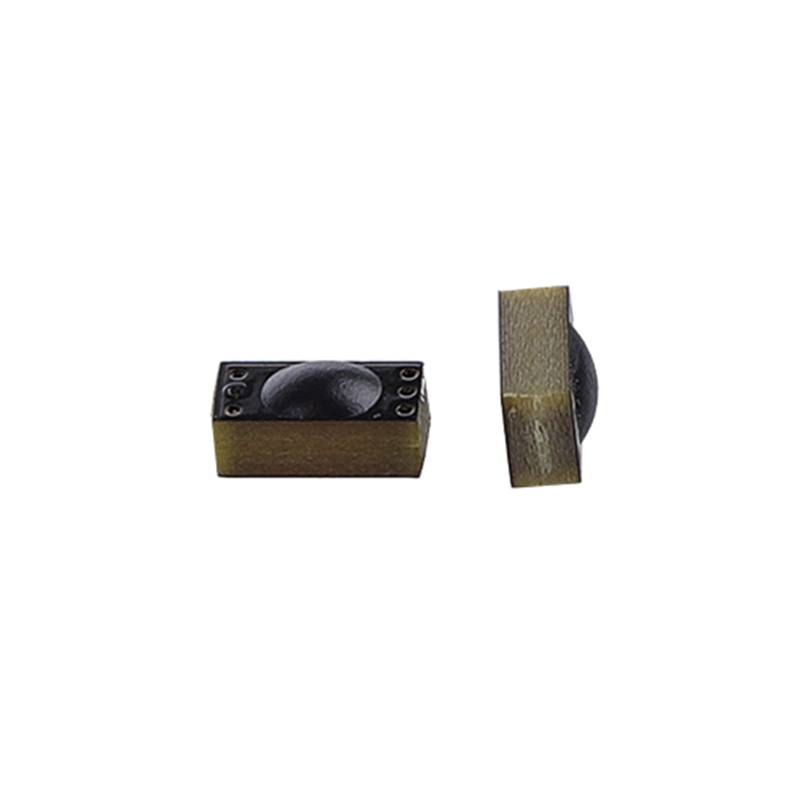

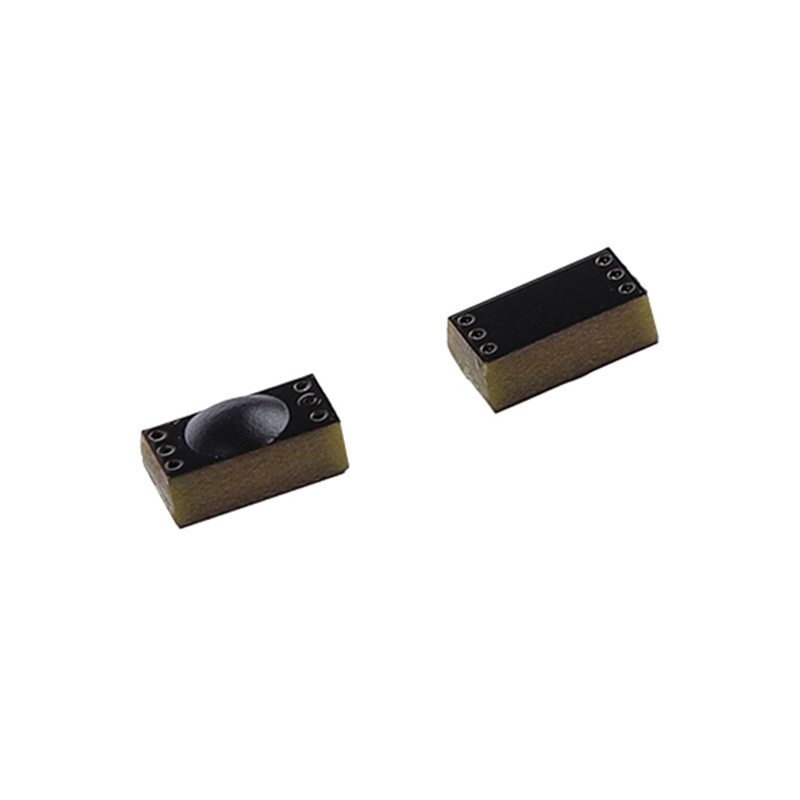

GZY-P1005
FR4 UHF RFID PCB tag
Compact structure of 10×5×3mm, equipped with UCODE 8 chip, supporting 128-bit EPC memory. Reading distance up to 1.4 meters on metal surfaces. Passed the tests of dropping, high and low temperature, and chemical wipe. Suitable for tracking scenarios such as medical devices and metal workpieces.
/
Micro anti - metal RFID tag
Features
-
Dimensions 10x5mm -
up to 1.4 Meters -
Resistant to Alcohol and Gasoline -
EPC Memory 128-bit -
Adhesive & Embedded -
Suitable for Small Equipment
Specifications
-
Physical Features
Model GZY-P1005

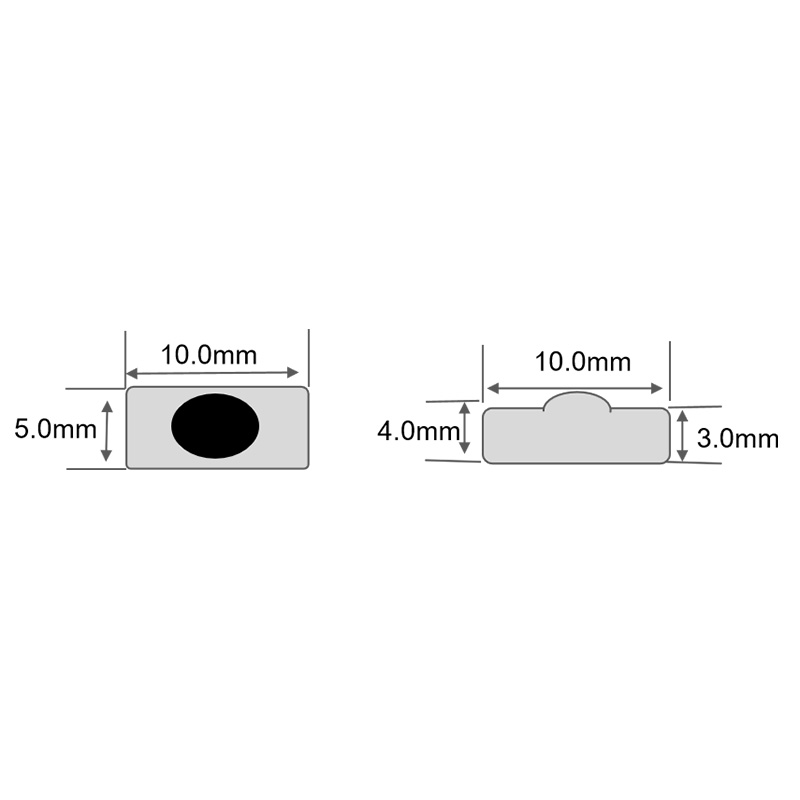

Size 10mmx5mmxT3.0mm Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.6g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-1.4m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
