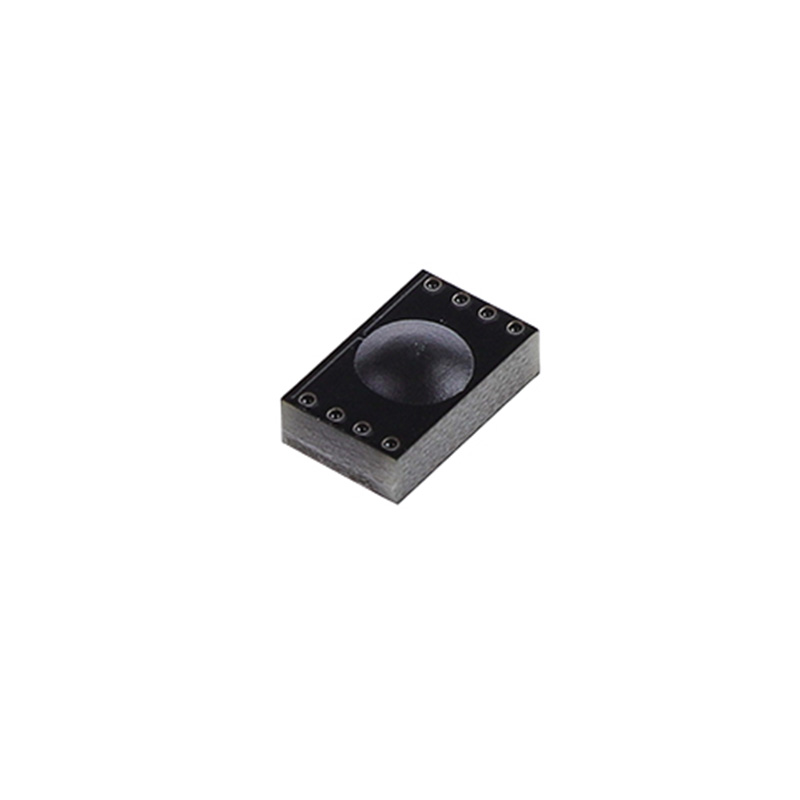

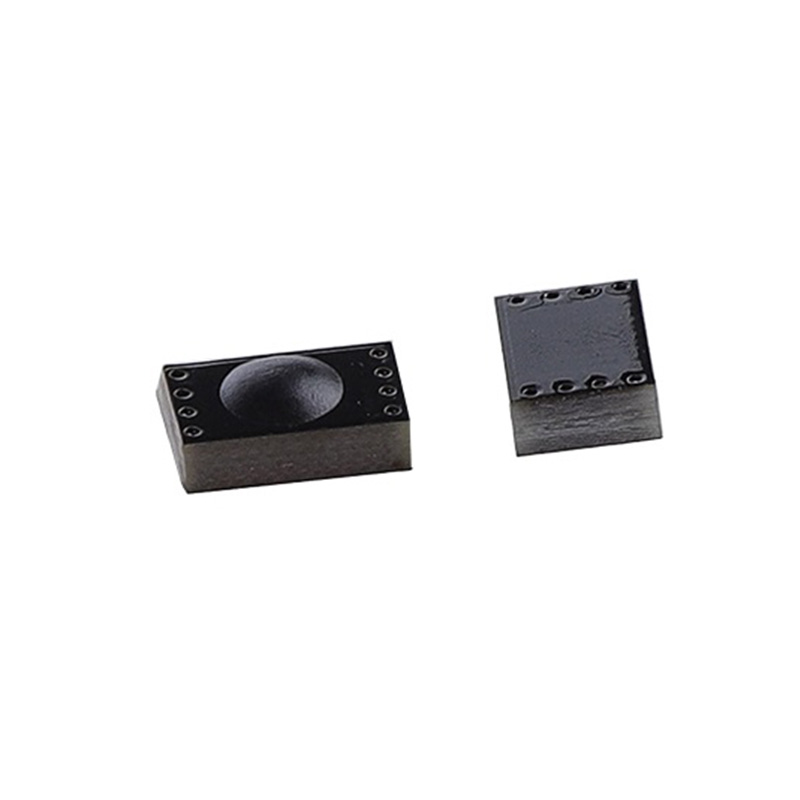

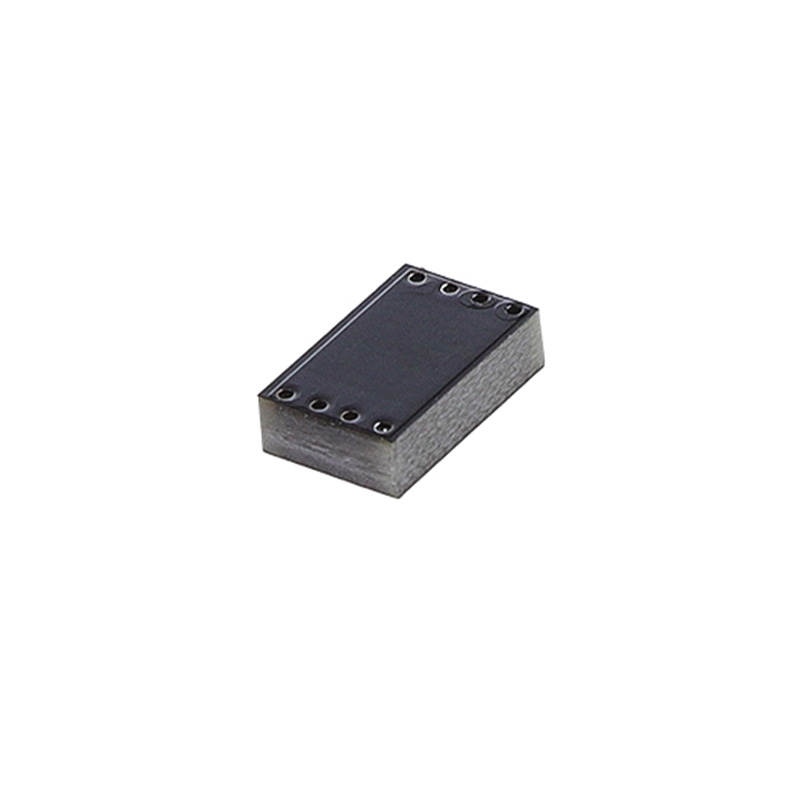

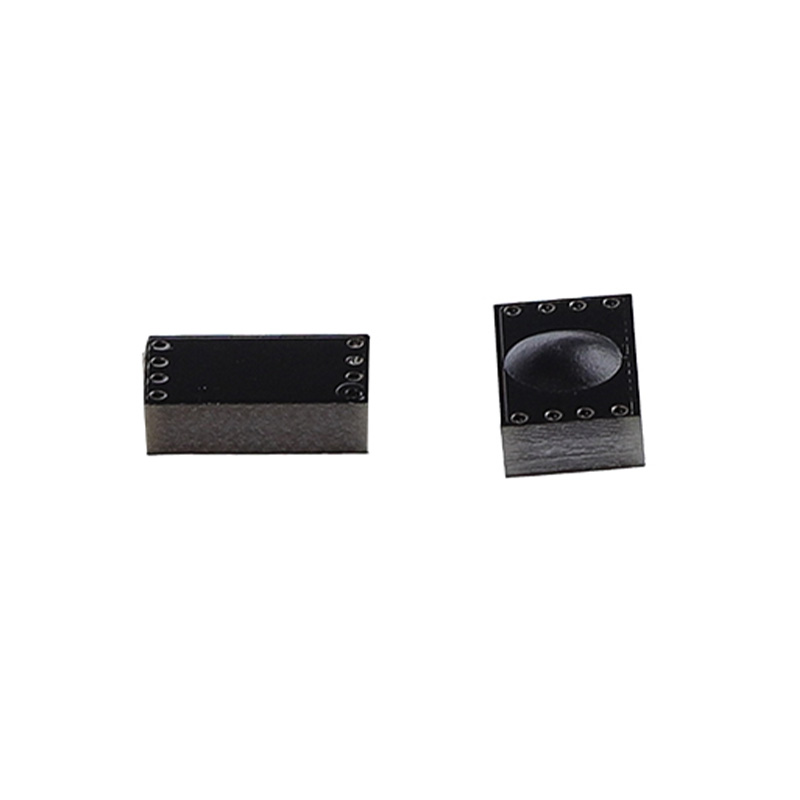

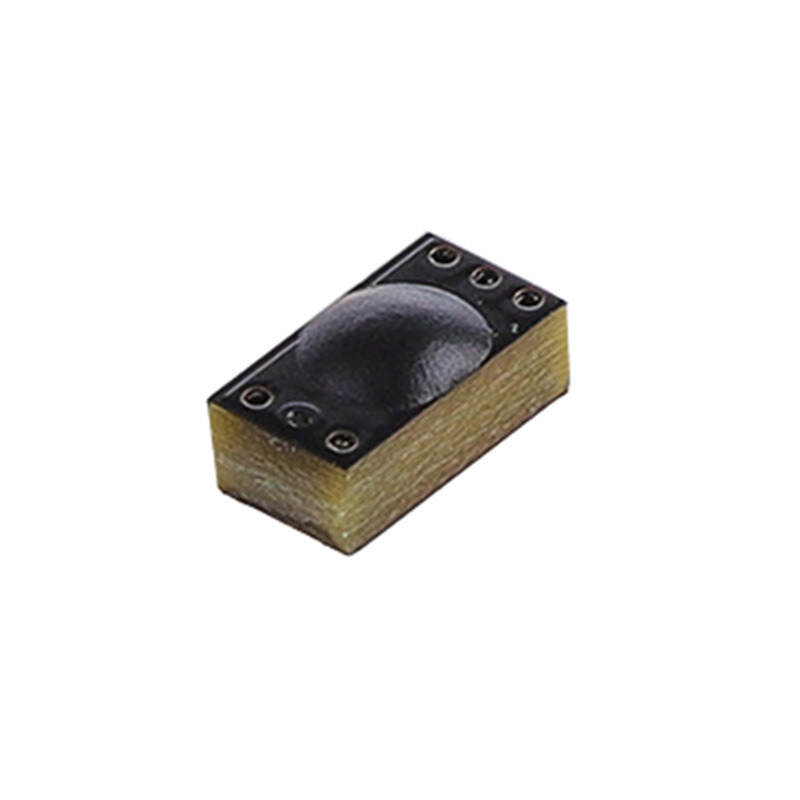

GZY-P1207
Mini RFID anti - metal tag
A 12×7×3mm label, equipped with UCODE 8/9/M730 chip, with the reading distance increased to 2.3 meters, is suitable for medium to long-range metal asset management. It features IP68 protection, corrosion resistance, and shock resistance, and is widely used in industrial environments such as cabinets, molds, and firearms.
/
Micro anti - metal RFID tag
Features
-
Dimensions 12x7mm -
up to 2.3 Meters -
IP68 Protection Rating -
Customizable -
Metal Surface Mountable -
High/Low Temperature Tested
Specifications
-
Physical Features

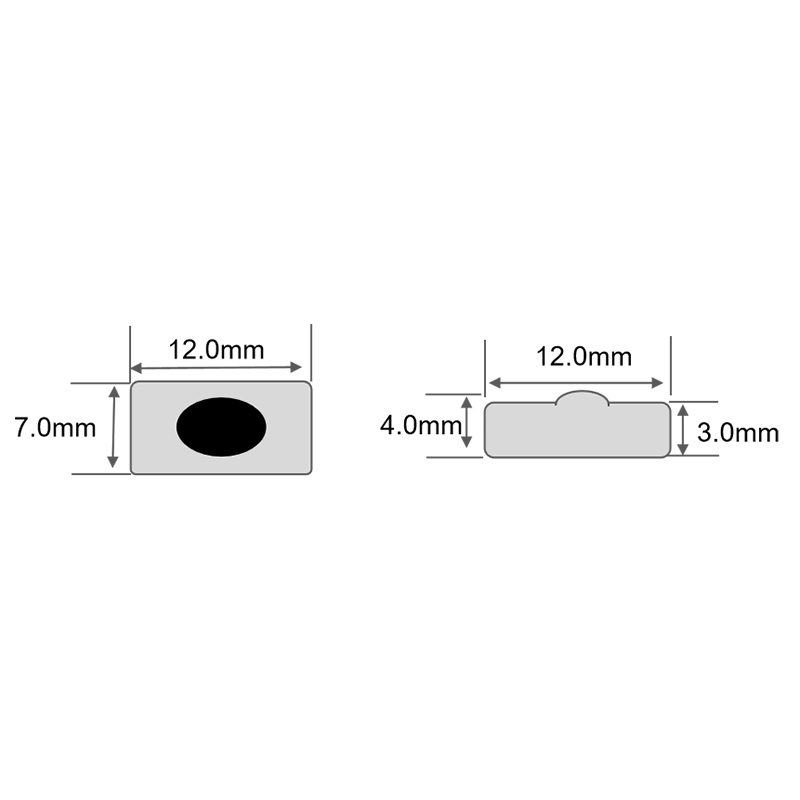

Model GZY-P1207 Size 12mmx7mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.6g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.3m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
