GZY-R6505
waterproof anti-metal RFID label
The flexible design in a long strip shape, with dimensions of 65×5mm,is lightweight and easy to attach. The farthest reading distance on the metal surface reaches 4.0 meters. It has excellent performance and is particularly suitable for liquid surface recognition. It is an ideal choice for special environments such as bottle packaging containers and pipeline assets.
/
Micro anti - metal RFID tag
Features
-
Strip Design 65x5mm -
Metal Surface 4.0 Meters -
Protection Rating IP68 -
White Printable design -
Suitable for Asset Management in Special Environments -
Supports Liquid Surface Reading
Specifications
-
Physical Features
Model GZY-R6505

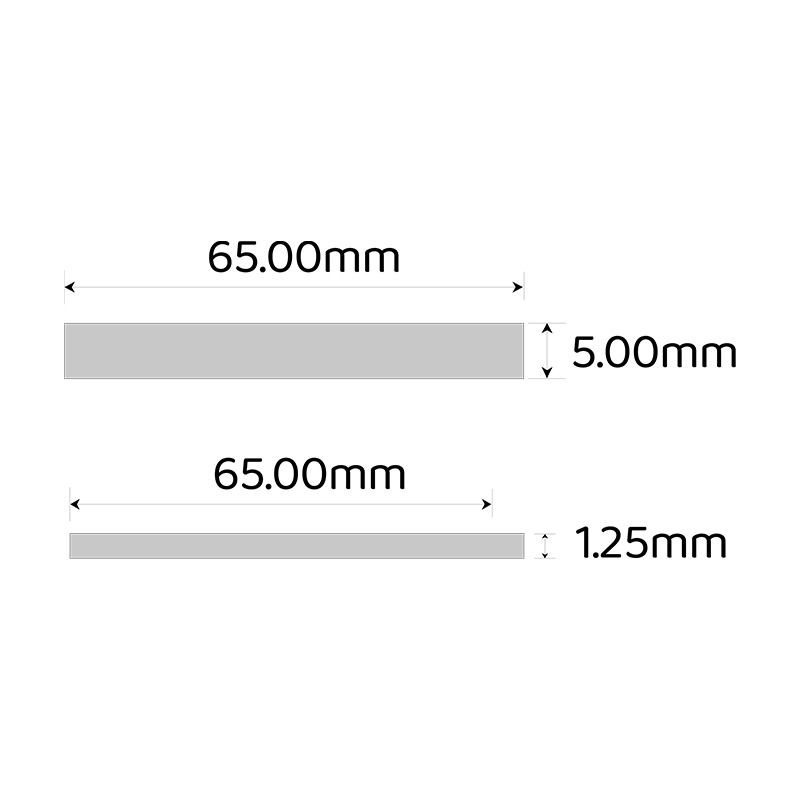

Size 65(L) x 5(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive

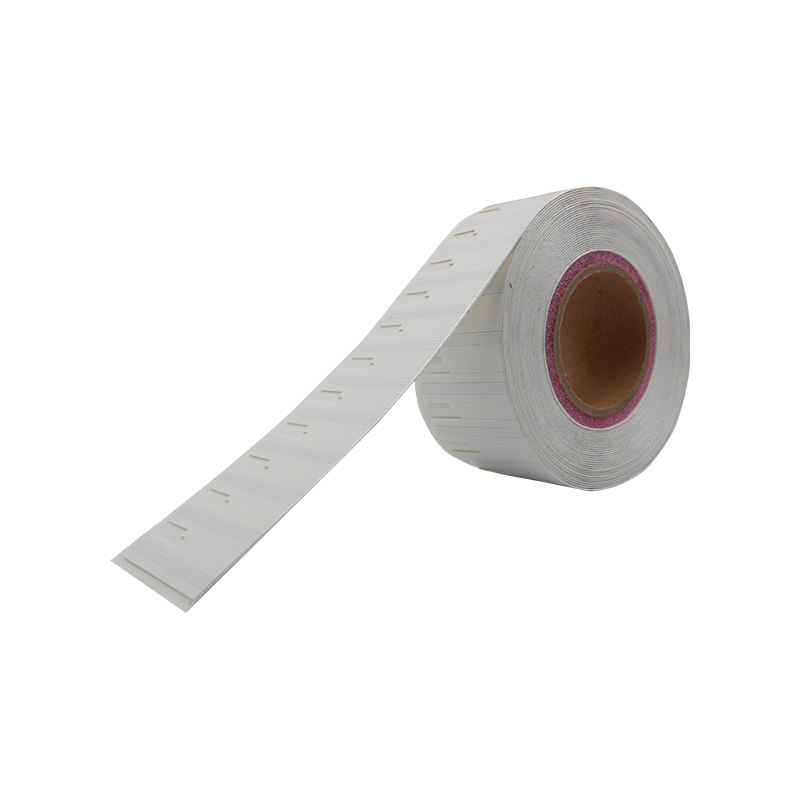

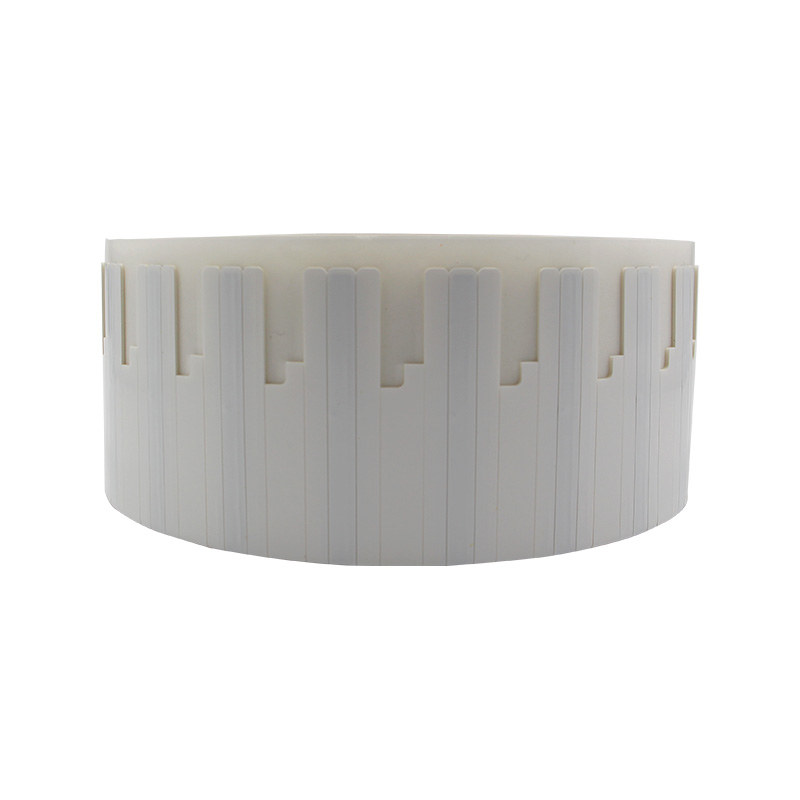

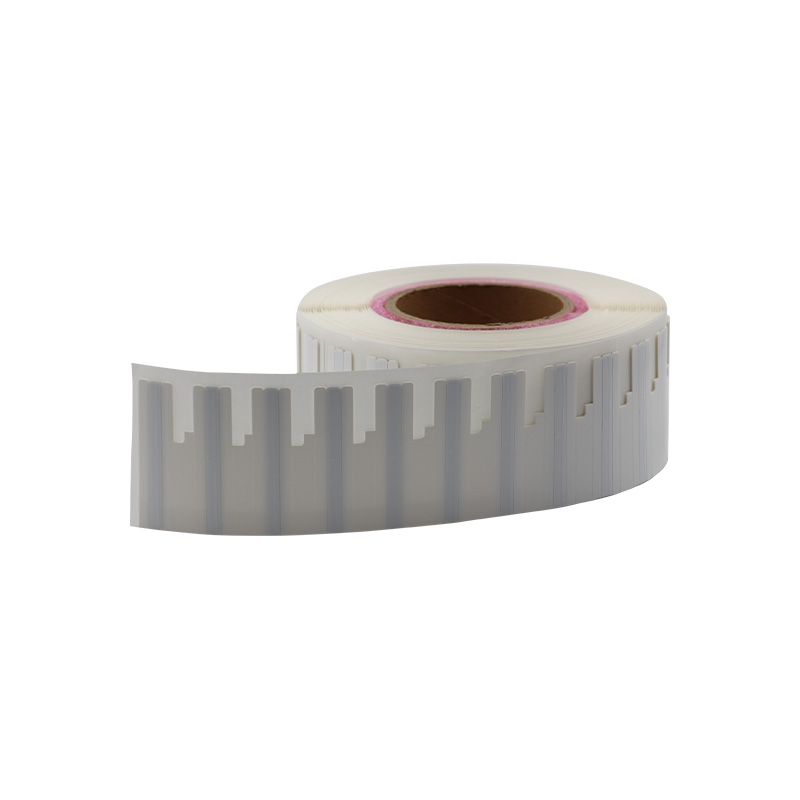

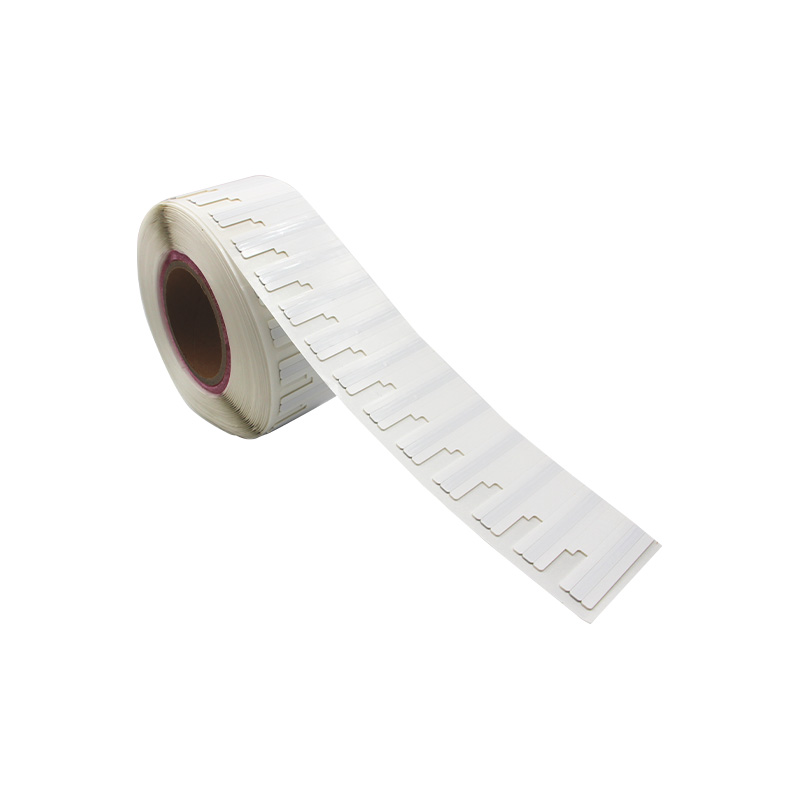

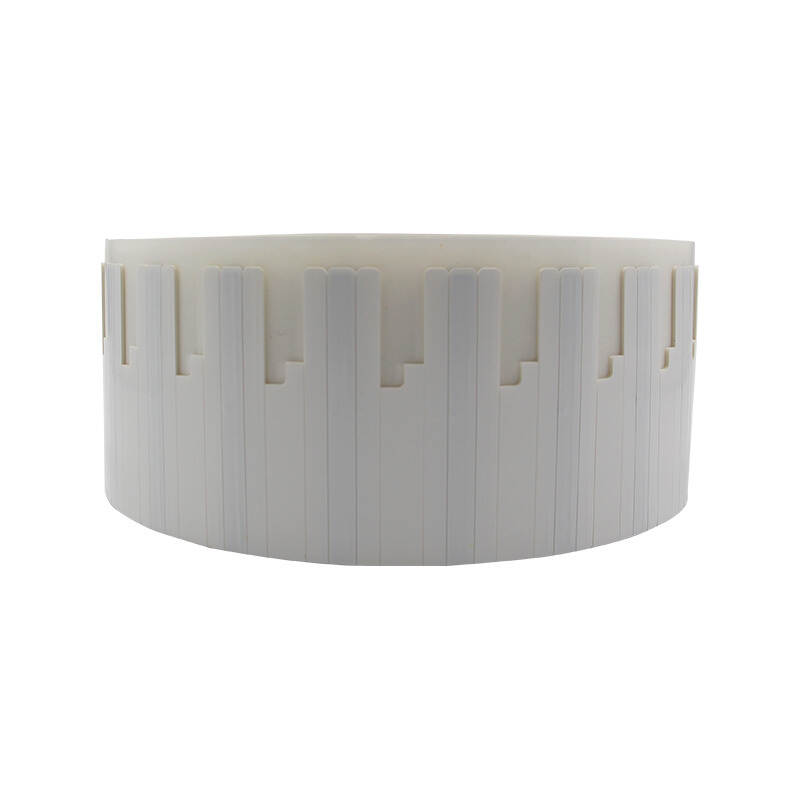

Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-6.5m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
