GZY-X2525

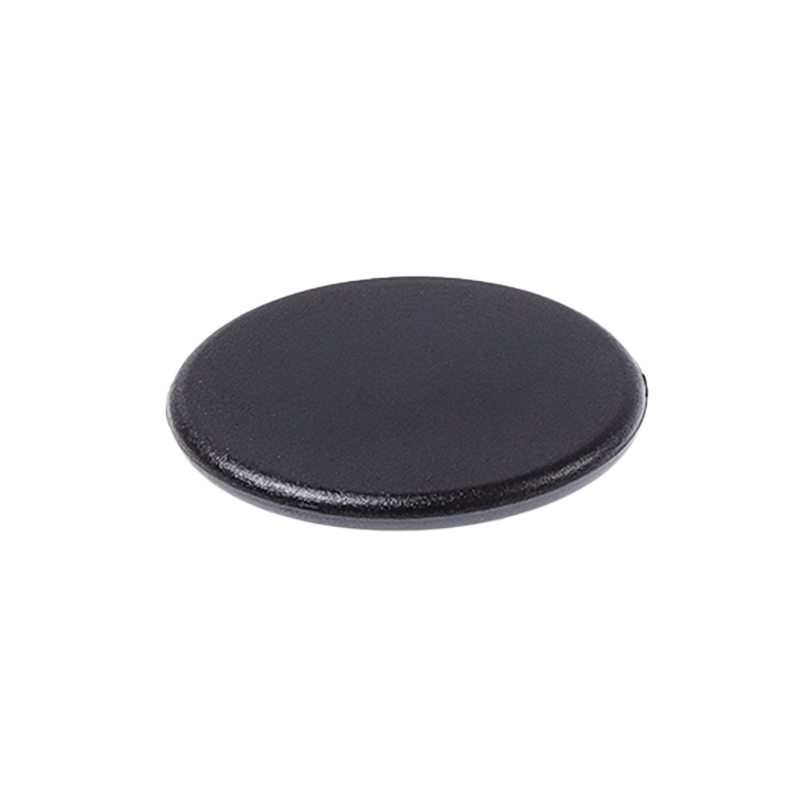

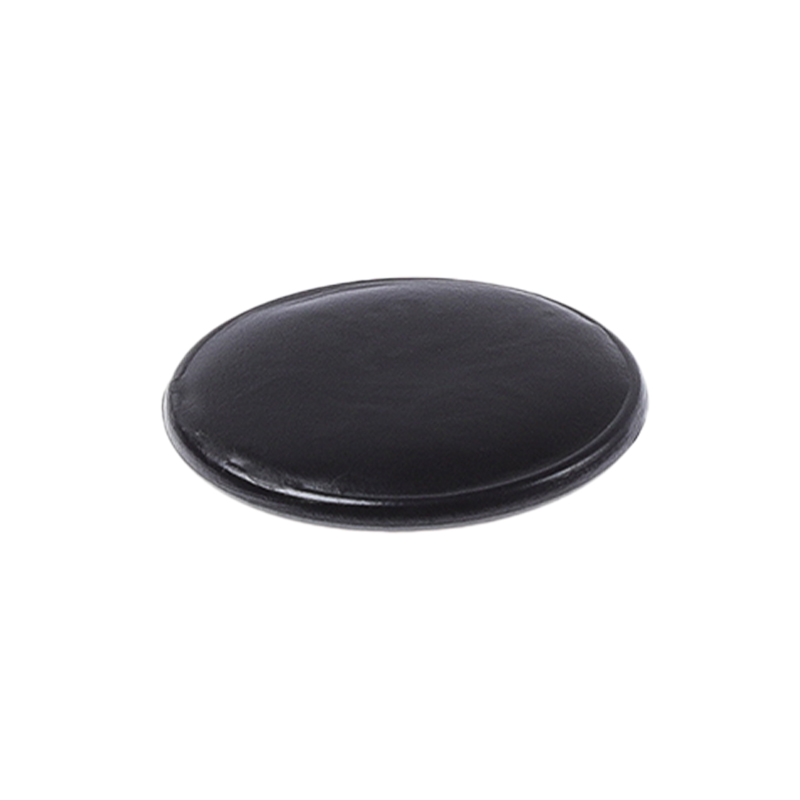

Washable RFID Botton Tags
Size: 25×25mm. Round high-temperature resistant washing label. Suitable for sewing into bags for installation. The farthest reading distance is 50 centimeters. It has excellent pressure resistance and chemical resistance, and can withstand 200 industrial washing cycles. It is suitable for long-term tracking of thick fabrics in fields such as hospitals and fire departments.
/
Micro anti - metal RFID tag
Features
-
25mm Diameter Circular Design -
50cm Maximum Read Range -
200 Wash Cycles Durability -
180℃ Ironing Temperature Resistance -
Ideal for Linen Management -
100,000+ Chip Rewrite Cycles
Specifications
-
Physical Features
Model GZY-X2525 Size 25( Dia) x 2.8 ( H) mm
Material PPS
Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods sewing Package details 500Pcs/bags
Weight 2g
Chemicals Normal common chemicals in the washing processes
Colour Black -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 7, Ucode8; M730
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-0.4m (depend on reader performance) Re-Write >100,000times
Data Storage >10 years
Estimated Lifetime 200 washing cycles or 2 years -
Others Features
Application *Management of uniforms；
*Medical apparel management；
*Military clothing management；
*Personnel patrol management.IP Rating IP68
