GZY-P1307

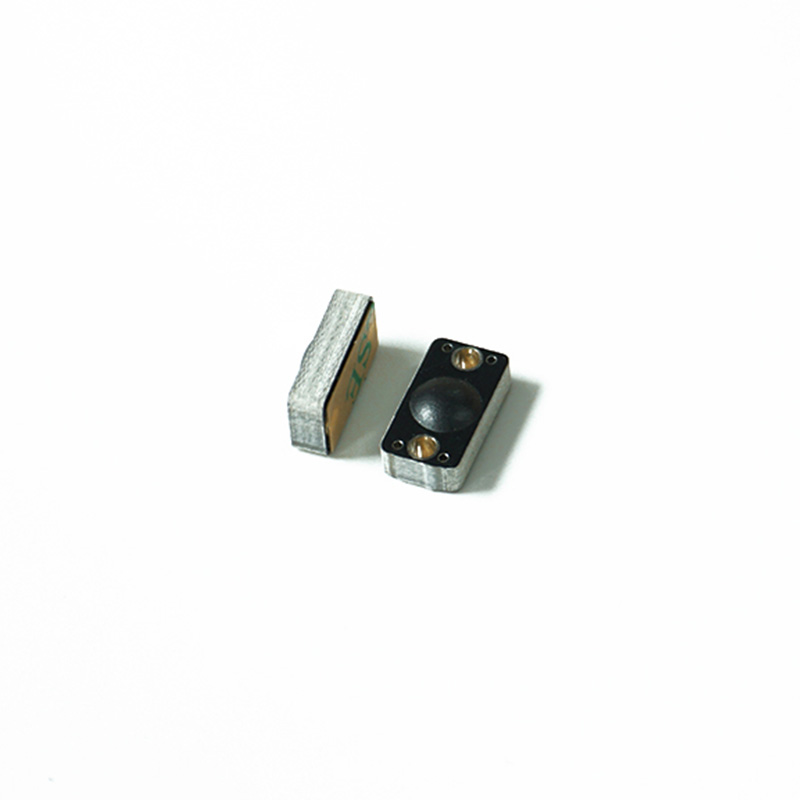

RFID PCB Anti-Metal Tool Tag
The 13×7×3mm design can reach up to 2.5 meters on a metal surface. The chip's memory can be expanded to 480 bits and supports 100,000 erase and write cycles.It has passed rigorous environmental tests and is suitable for high-reliability management of large metal equipment, surgical instruments, etc.
/
Micro anti - metal RFID tag
Features
-
Moderate Size 13x7mm -
up to 2.5 Meters -
Data Retention ≥50 Years -
NXP UCODE 8/9/M730 Chips -
Operating Temperature -40℃ to +100℃ -
Adhesive & Embedded
Specifications
-
Physical Features
Model GZY-P1307 Size 13mmx7mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.7g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.5m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
