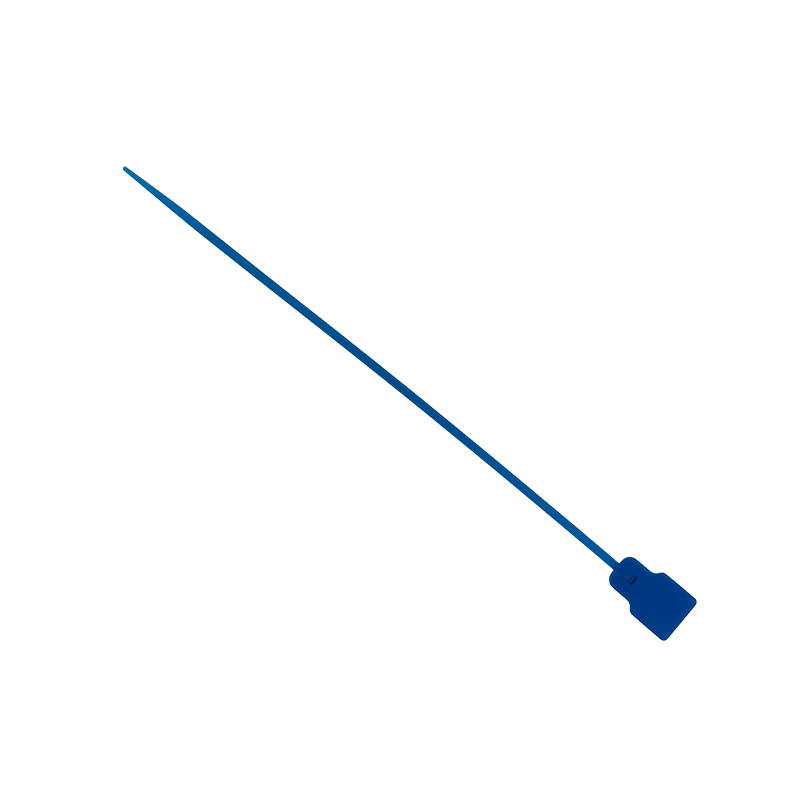

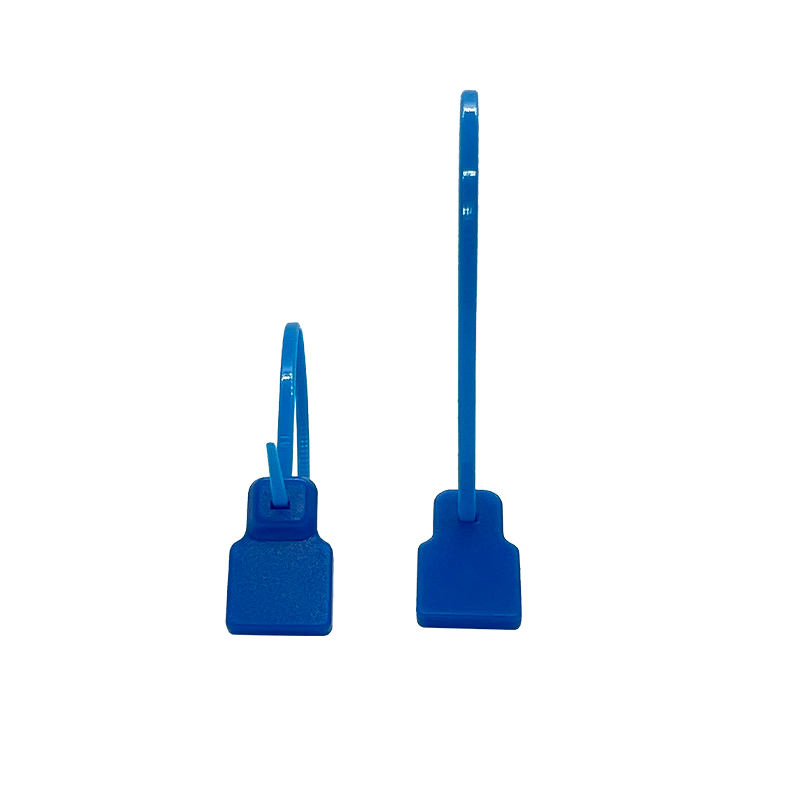

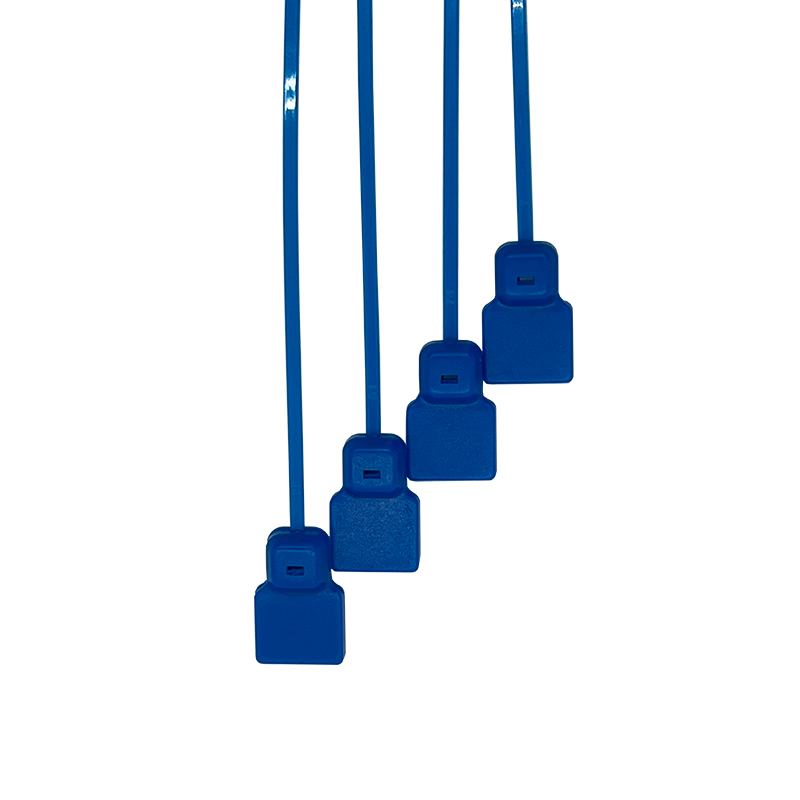

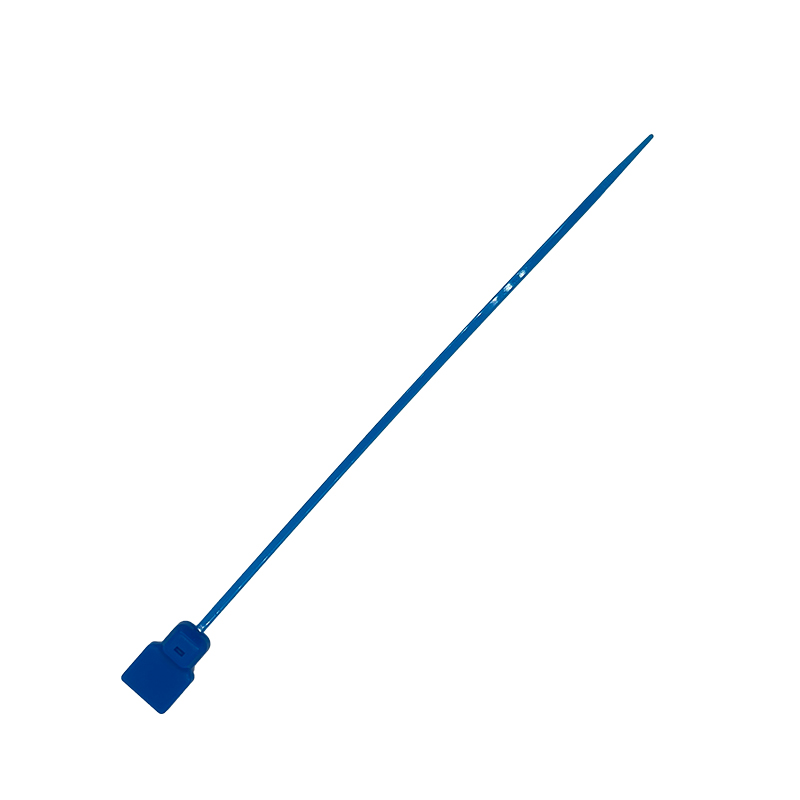

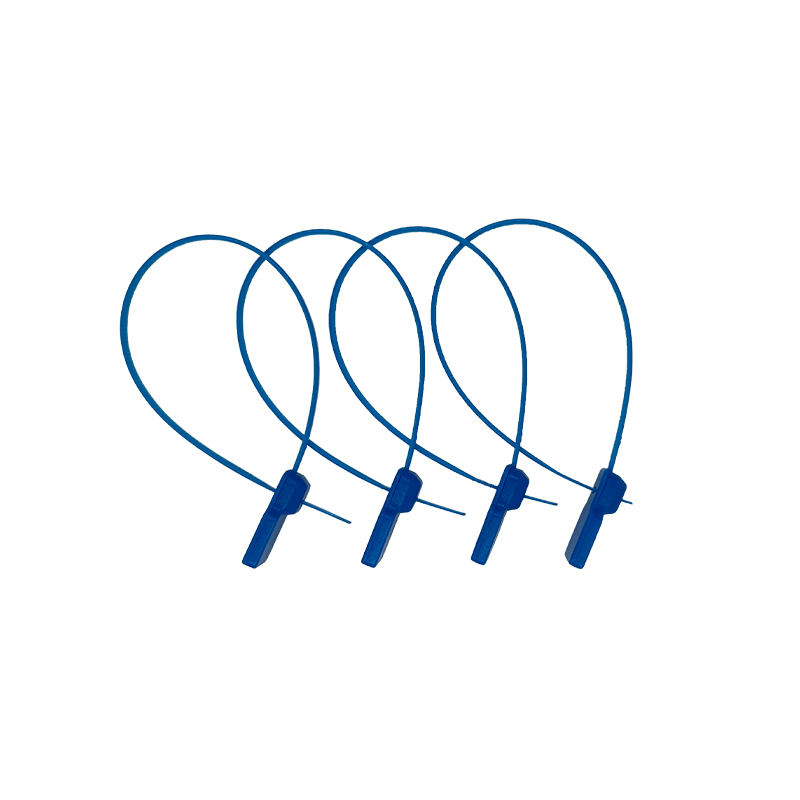

GZY-Z1912
Passive Contactless RFlD Tamper Tags
Compact cable ties label, with dimensions of 19×12×13mm, the length is 165mm and weigh only 1 gram. The farthest reading distance is 2.0 meters. It is small and lightweight, suitable for labeling and managing items such as tools, network cables, and small packages in space-constrained environments.
/
Micro anti - metal RFID tag
Features
-
Compact 19x12mm -
Maximum 2 Meters -
IP67 Protection Rating -
165mm Cable Tie Length -

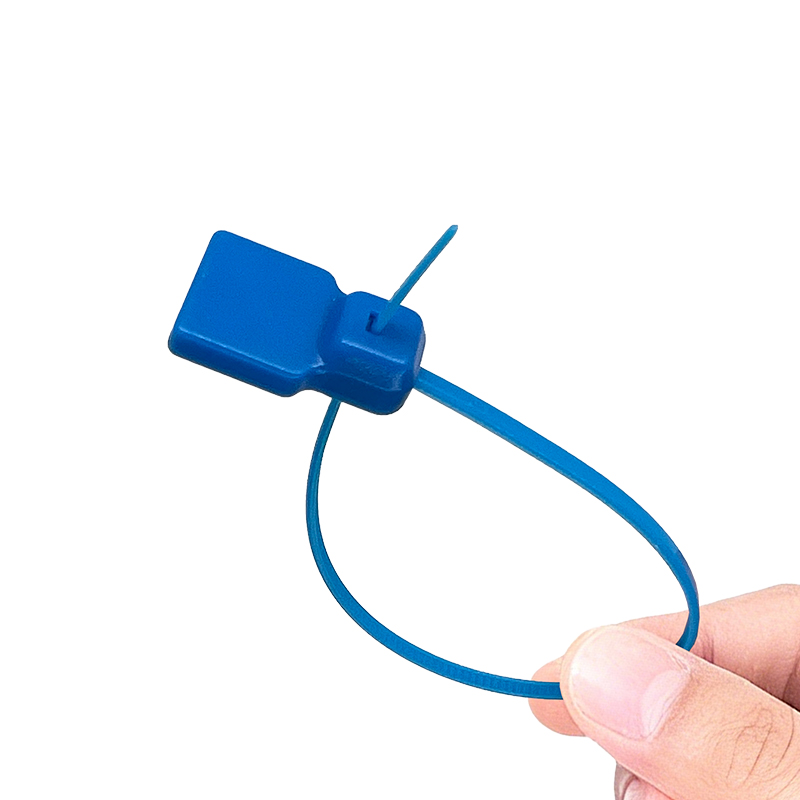

Easy Loop Mounting -
Suitable for Tool Tracking
Specifications
-
Physical Features
Model GZY-Z1912 Size 165*12*19mm
Material ABS
Working Temp -25~+85℃
Storage Temp -40~+85℃
Installation Methods Seal Package details 500Pcs/bags
Weight 1.0g
Colour White、Black、Blue、Red (Customized)
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9, Alien H3, H9
EPC Memory 96bit, 512bit, 688bit TID:64bit
Read distance 1-2m (depend on reader performance) Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● Container Management
● Gas Cylinder Tracking
● Warehouse Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
