GZY-P7020

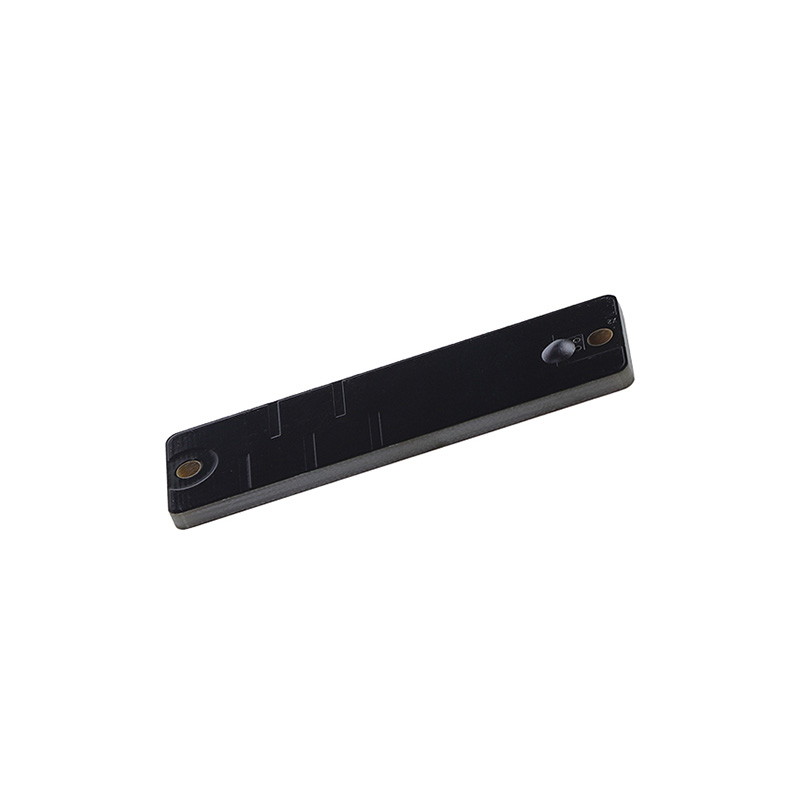

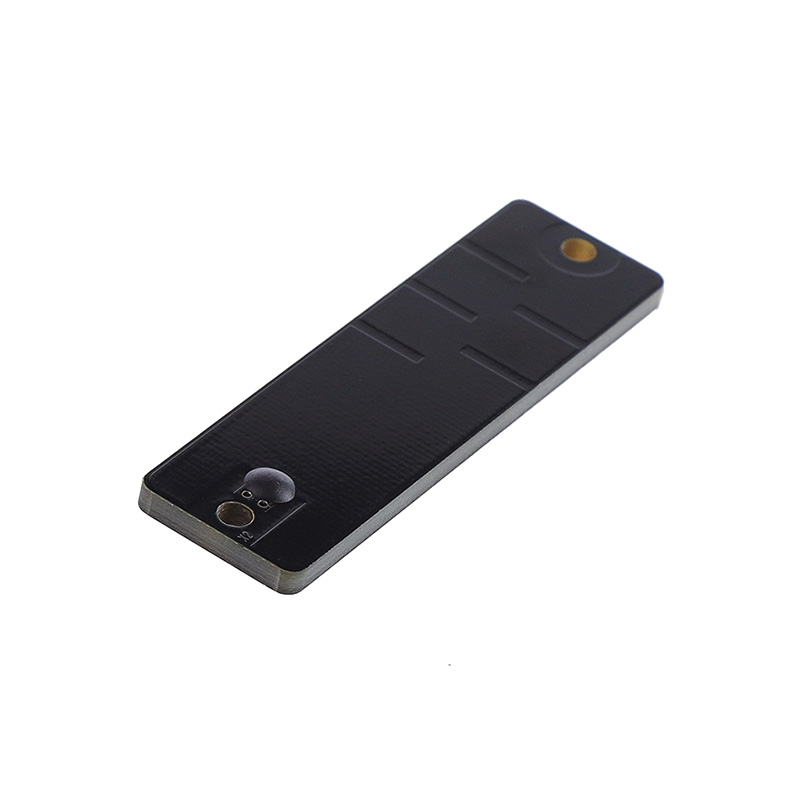

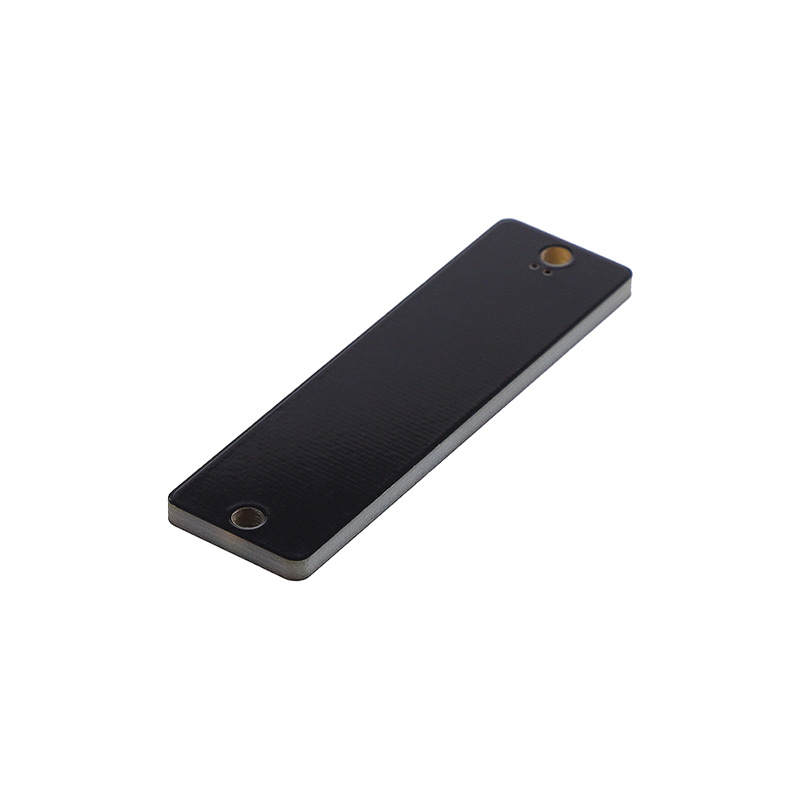

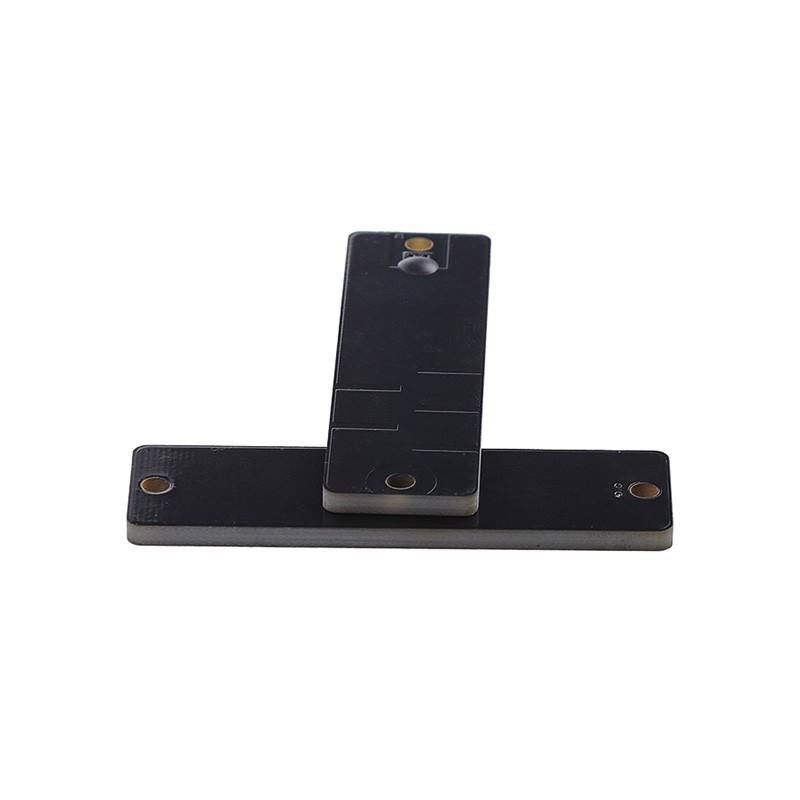

RFID PCB tag for asset management

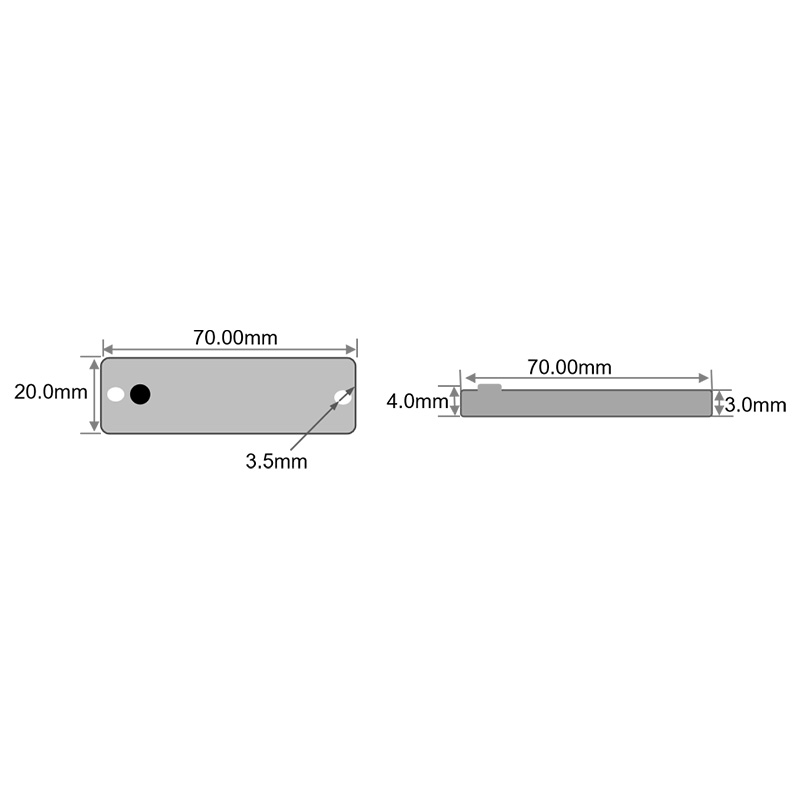

Size: 70×20mm, thickness: 3.0mm (including the chip,the thickness is 4.0mm). It supports installation of adhesive mounting, riveting and screw. The surface can be custom-printed. The maximum reading distance is up to 9 meters. It is specially designed for long-distance and large-volume metal asset identification,such as medium and large-sized equipment, storage shelves and pallets, etc.
/
Micro anti - metal RFID tag
Features
-
Dimensions 70x20mm -
up to 9 Meters -
IP68 Protection Rating -
Surface Customization Printing -
Rivets/Screws -
Ideal for Pallet Asset Management
Specifications
-
Physical Features
Model GZY-P7020
Size 70mmx20mmxT3mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 12.0g Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-9.0m (depend on environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
