GZY-P305
Soft RFID anti-metal label
Size: 30×15mm. Ultra-thin flexible design of 1.25mm thickness. Supports customized printing by mainstream printers. The farthest reading distance is 0.9 meters. It has excellent anti-metal performance and is suitable for fields such as fixed asset management, etc. It also takes into account the flexibility of identification and environmental adaptability.
/

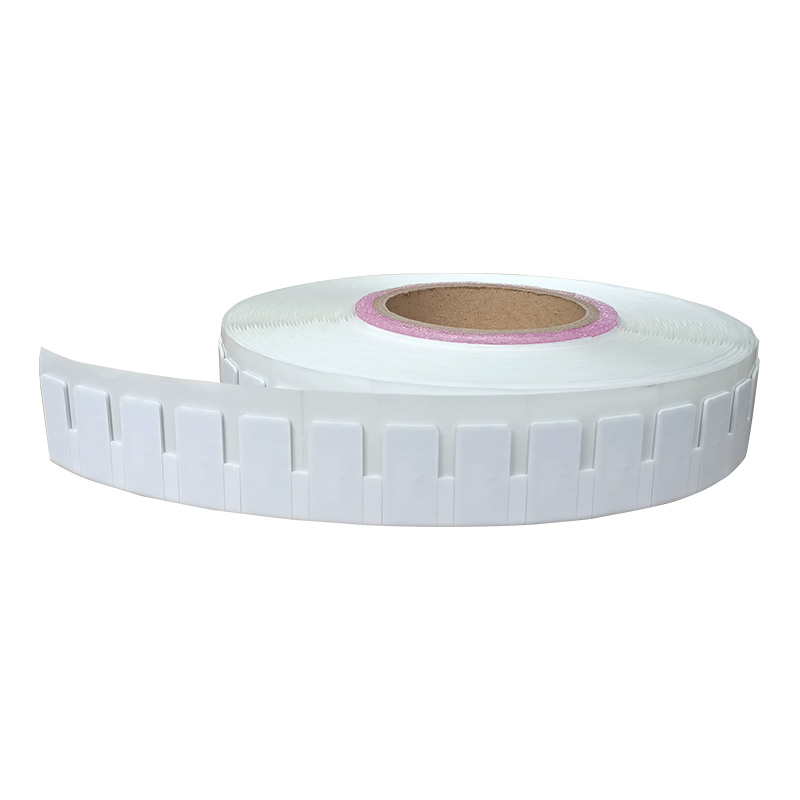

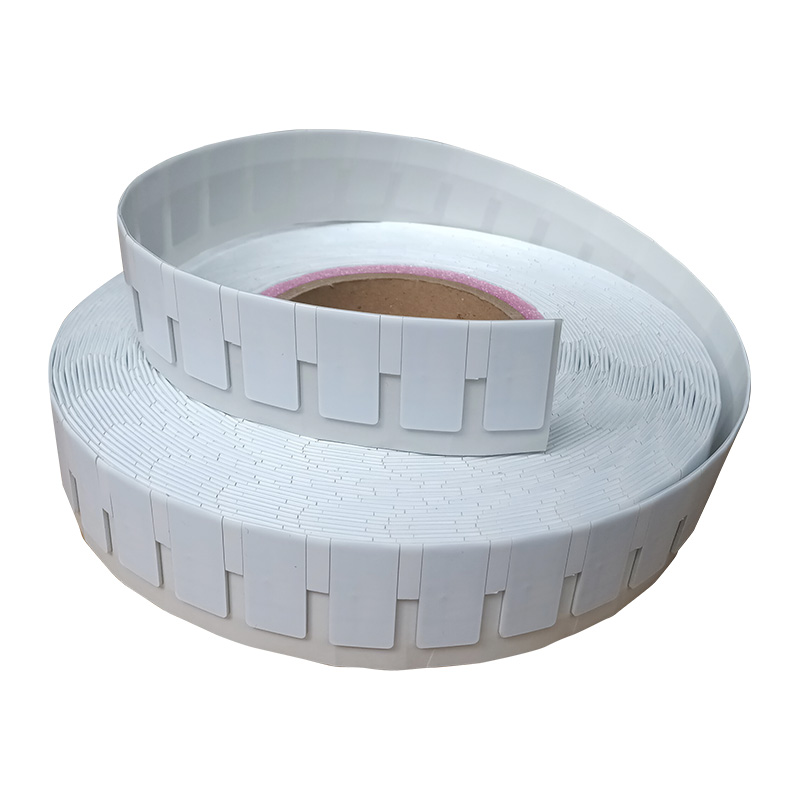

Micro anti - metal RFID tag
Features
-
Slightly Larger 30x15mm -
0.9 Meters -
85°C/85% RH high-temperature & humidity test -
Memory Expandable up to 480bit -
Secure Adhesive -
Suitable for Metal/Non-Metal Surfaces
Specifications
-
Physical Features

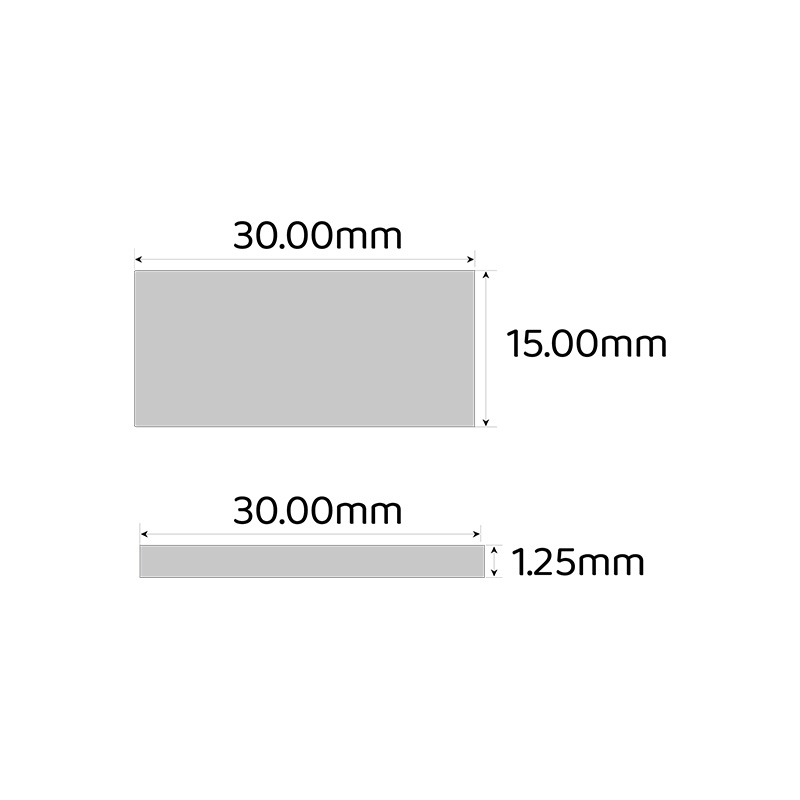

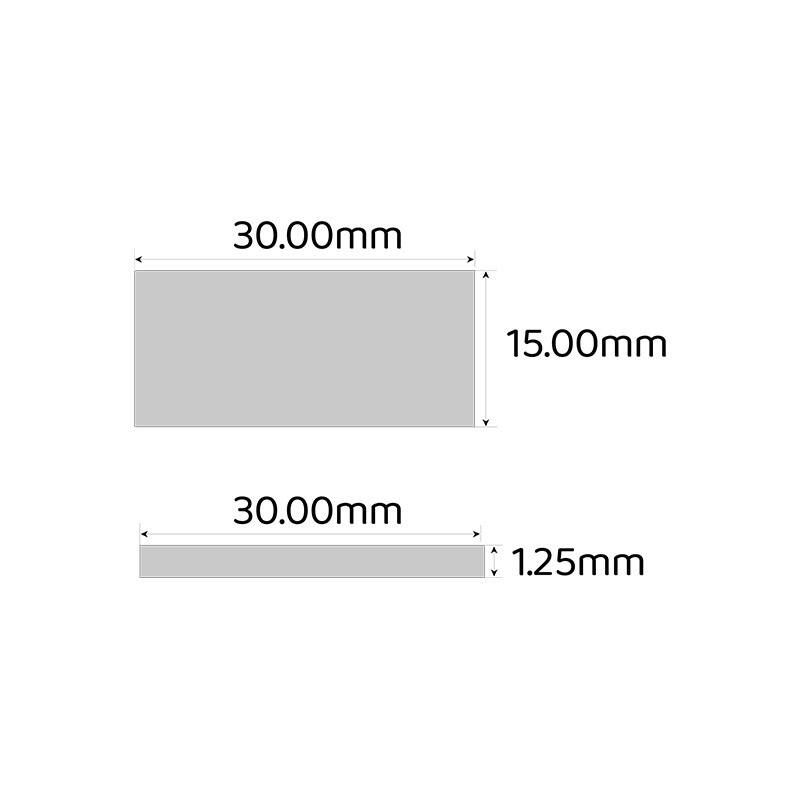

Model GZY-R3015 Size 30(L) x 15(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-0.9m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
