GZY-A13042

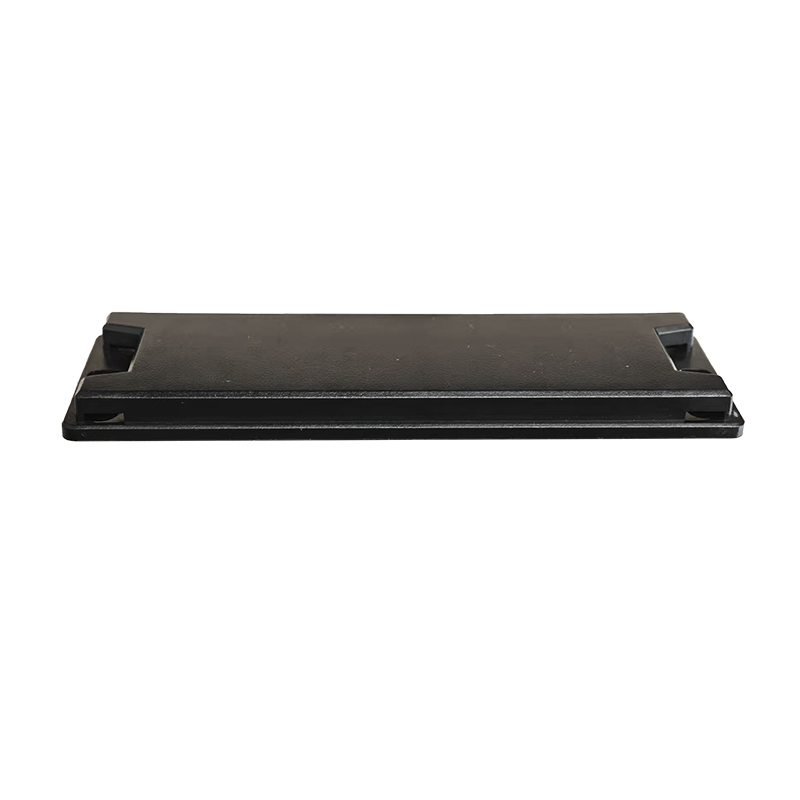

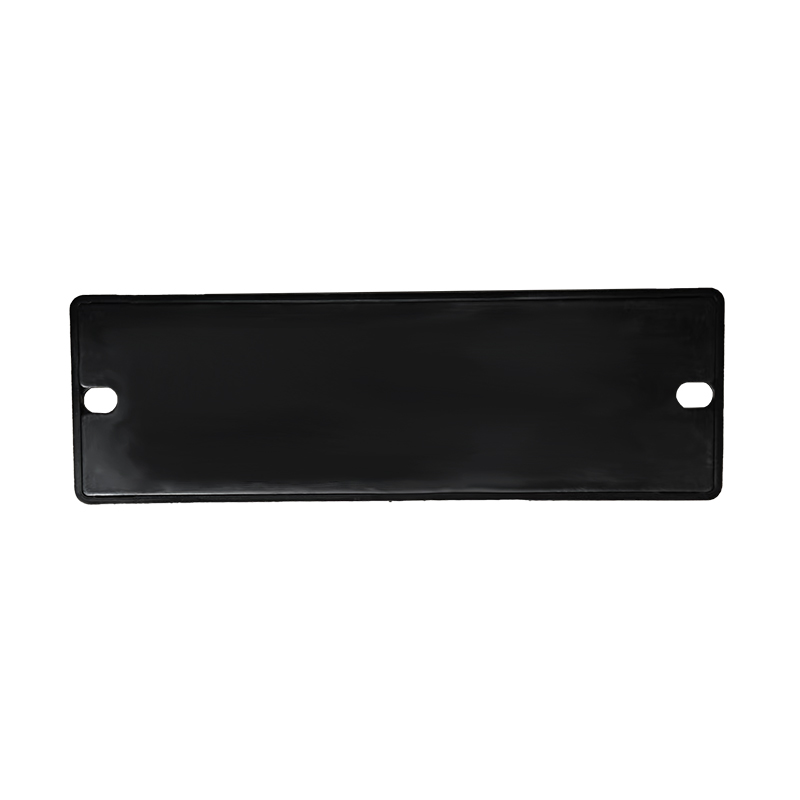

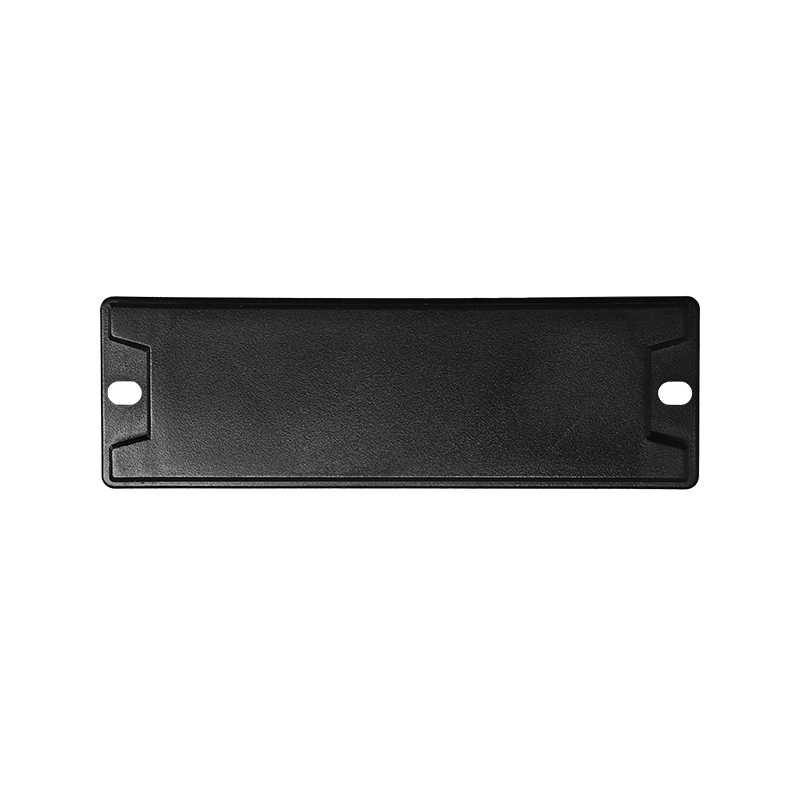

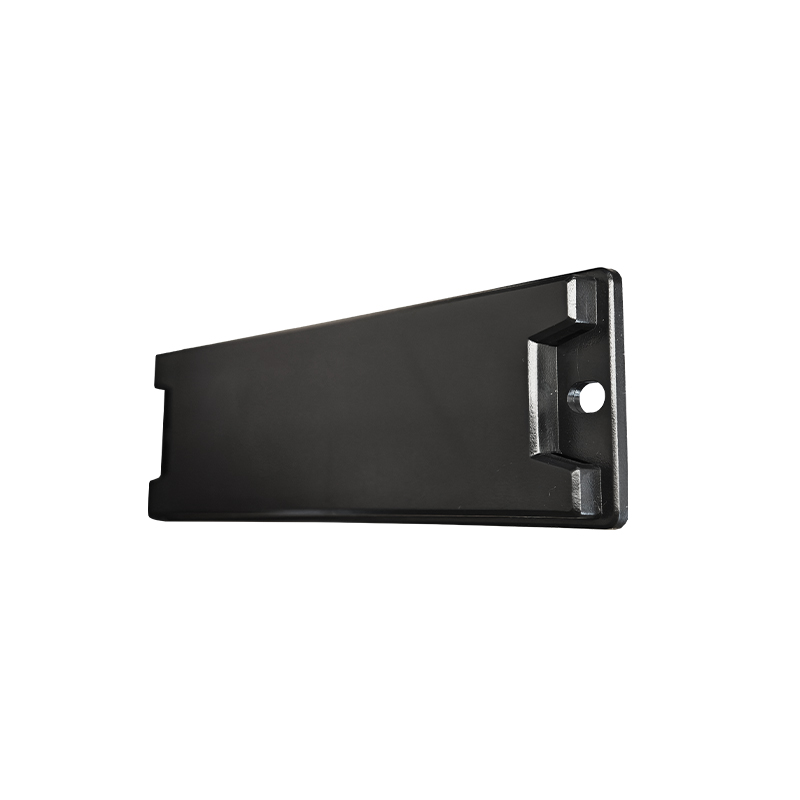

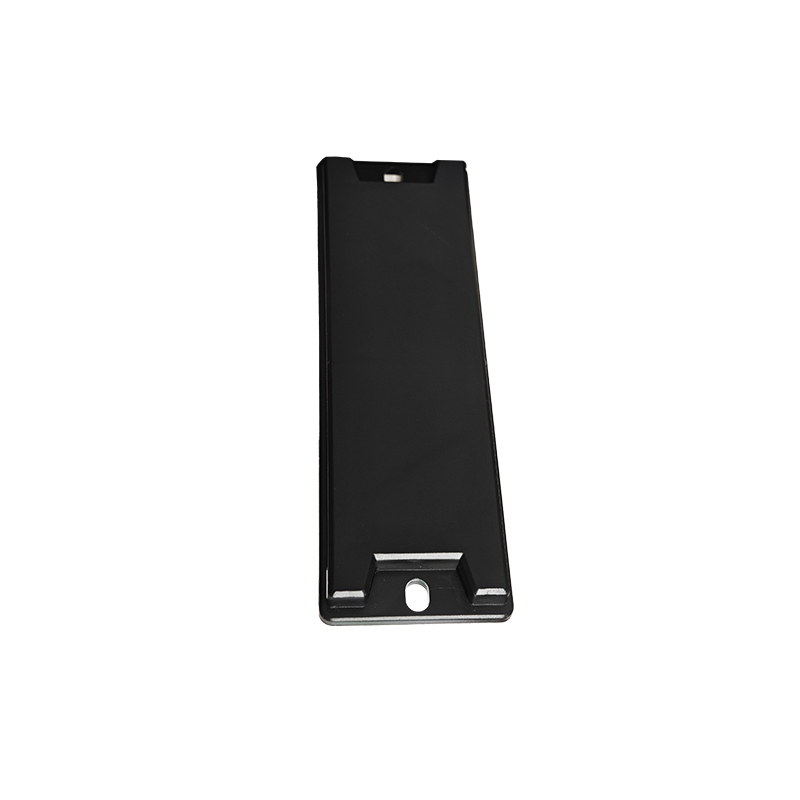

12m UHF Rugged RFID Tags
Large aluminum + PET shell label, with dimensions of 130×42×9.5mm, featuring high structural strength. Equipped with Impinj M781 chip, the farthest reading distance on the metal surface reaches 22 meters, designed for ultra-long-distance identification scenarios such as outdoor large assets, warehousing and logistics.
/
Micro anti - metal RFID tag
Features
-
Large 130x42mm -
Maximum 22 Meters -
IP68 Protection Rating -
IMPINJ M781 Chip -
Suitable for Large Outdoor Assets -
Rivet/Screw/Cable Tie
Specifications
-
Physical Features
Model GZY-A13042
Size 130(L)x42(W)x10.5(H)mm, (Hole:D5.2mmx2)
Material Aluminum+PET
Working Temp -25~+55℃
Storage Temp -20~+85℃
Installation Methods Adhesive, Screw, binding
Package details 500Pcs/bags
Weight 40.0g
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type IMPINJ M781
EPC Memory 96-128bit, TID:64bit
Read distance 1-22.0m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Applications
