GZY-R7030
Soft flexible UHF on-metal RFID label
Size: 70×30mm, flexible and attachable. The maximum reading distance on a metal surface is 7.0 meters.It has good environmental adaptability and is suitable for various metal containers, cabinets and other asset management scenarios that require a large identification area and reliable reading distance.
/
Micro anti - metal RFID tag
Features
-
Slightly Wider 70x30mm -
Metal Surface 7.0 Meters -
85°C/85% RH high-temperature & humidity test -
Memory Expandable up to 480bit -
Printable White Surface -
Adhesive Multi-Surface
Specifications
-
Physical Features
Model GZY-R7030

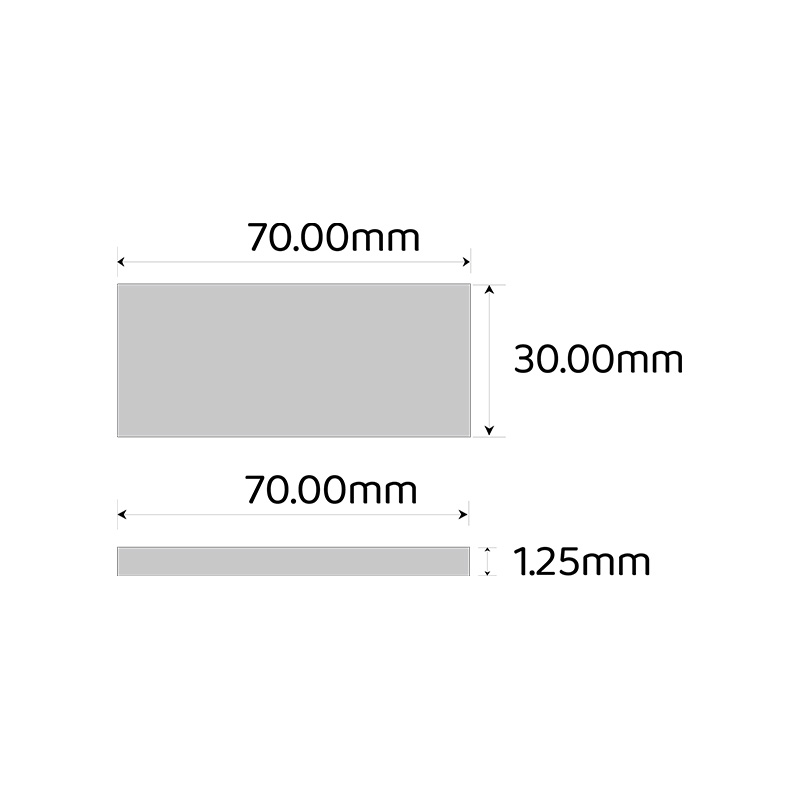

Size 70(L) x 30(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730(Customized)
EPC Memory 96-128bit, TID:64bit
Read distance 1-7m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
