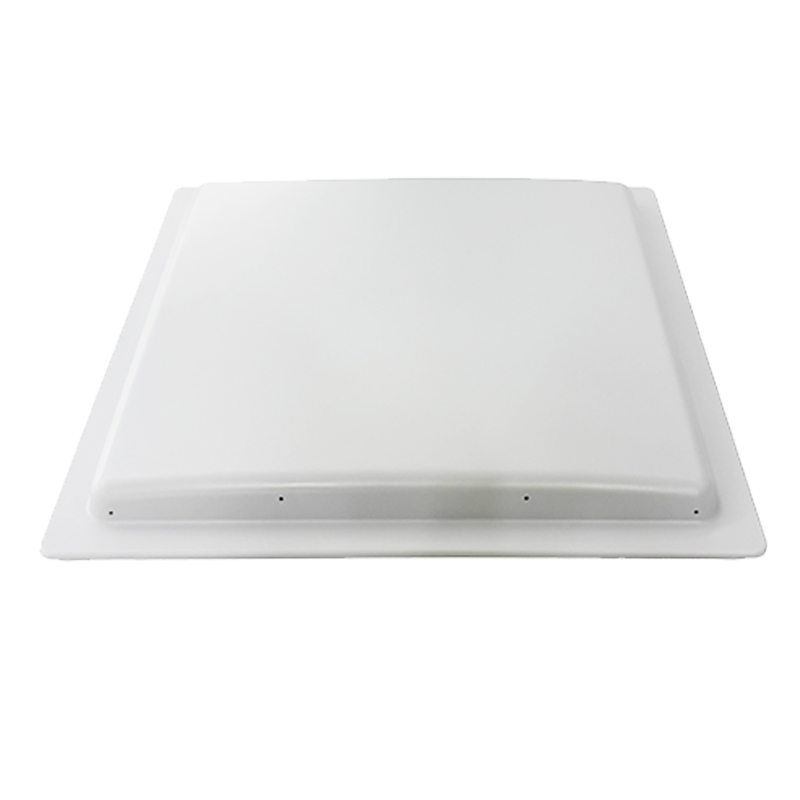

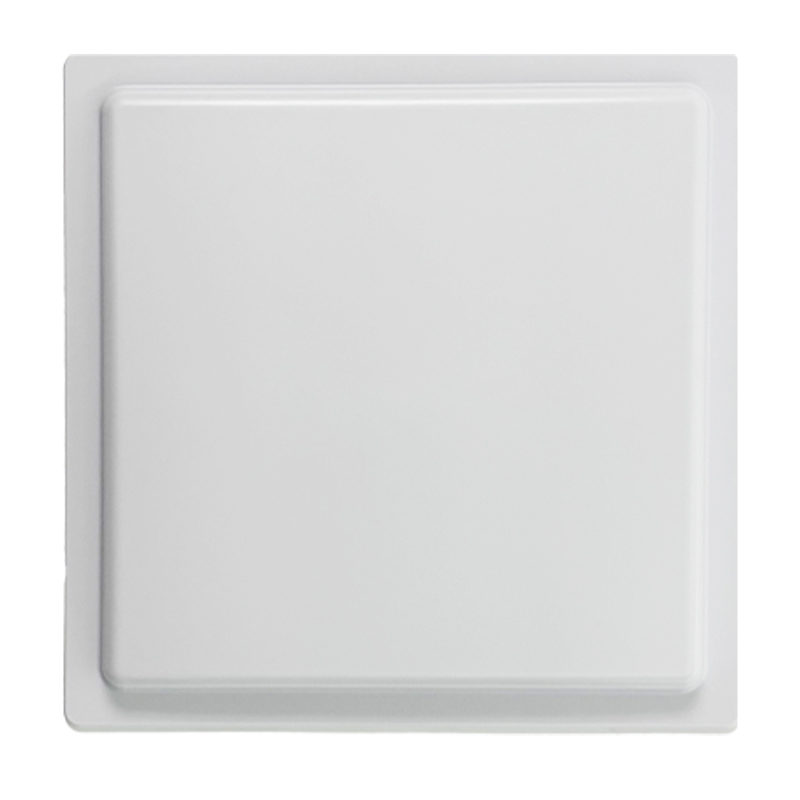

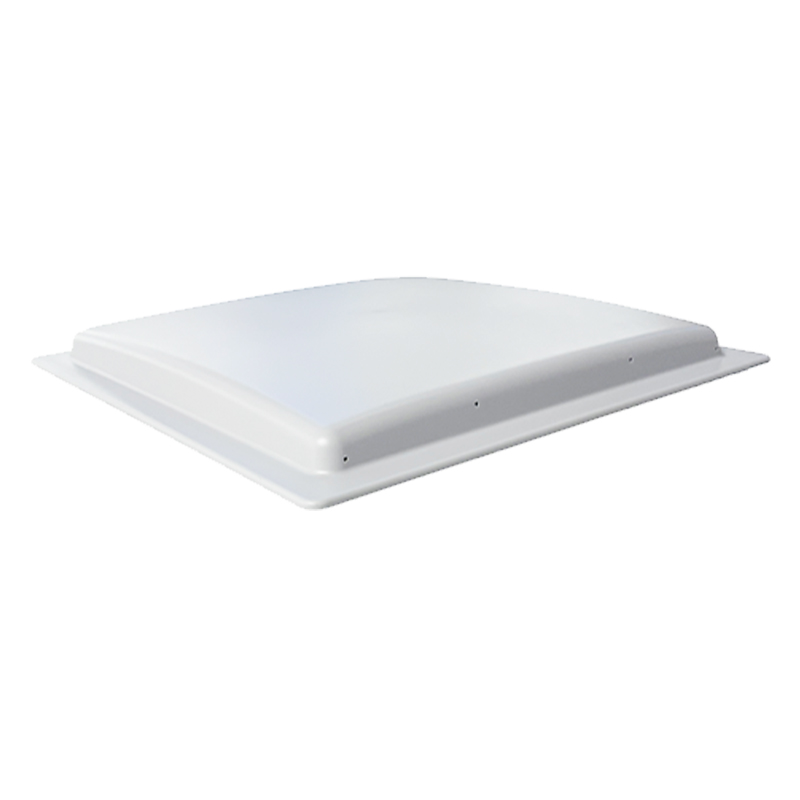

GZY-T512

High-Gain UHF RFID Antenna

GZY-T512 is a large-diameter, ultra-high-gain antenna with dimensions of 445×445×30mm and a gain of 12dBi. Its IP67 protection and operating temperature range of -40°C to 60°C ensure its stable operation outdoors for a long time. With a 65-degree narrow beam angle, it can achieve precise reading and writing over extremely long distances,and is specifically designed for scenarios such as logistics gateways, large warehouse entrances and exits, and traffic line management that require ultra-long d
9dbi RFID Circularly Polarized Antenna
Features
  • Industrial-Grade Weather-Resistant
  • IP67 High Protection

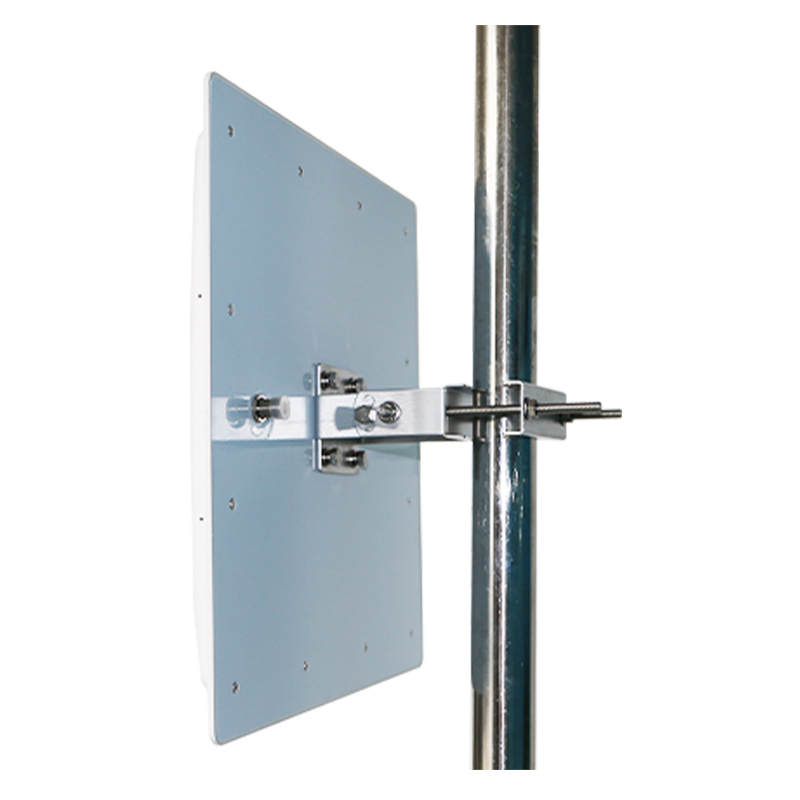

  • Flexible Pole Mounting
  • -40℃ to 60℃
  • Circular Polarization
  • 12dBi High Gain
Get Quote
Specifications
  • RFID Performance
    RFID Frequency 865-868Mhz /920-928Mhz(Can be customized)
    Gain 12dBi
    Beam width Hor:70° Ver:70°
    Polarization Circular
    VSWR ≤1.4
    F/B Ratio ≥20
    Impedance 50Ω
    Maximum power 50W
    Lightning protection DC Ground
    Connector N-Female
  • Physical Performance
    Working Temperature -40ºC to +70ºC
    Rated wind velocity 60m/s
    Pole Diameter Φ30-50mm
    Colour White
    Material ABS
    Dimension 445*445*42mm
Applications
