GZY-R9522
anti-metal RFID labels for tools tracking

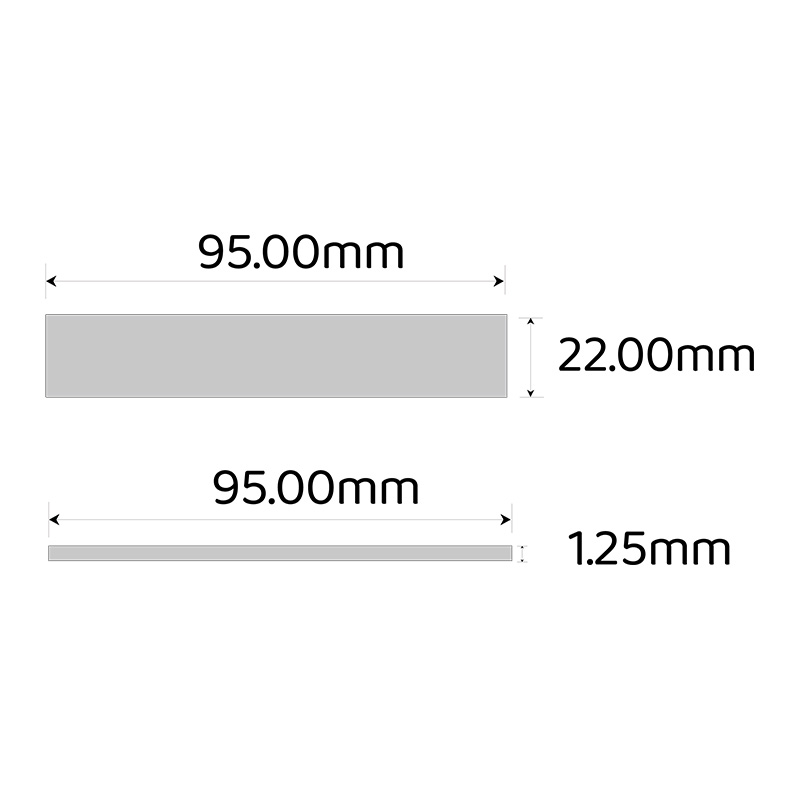

The flexible strip-shaped label measures 95×22mm in size and has a thickness of 1.25mm. It has excellent printing adaptability. The farthest reading distance on a metal surface is 5.0 meters. The performance is balanced and it is suitable for asset management scenarios such as shelves and metal containers that require medium reading distance and large identification area.
/
Micro anti - metal RFID tag
Features
-
Large Elongated 95x22mm -
Metal Surface 5.0 Meters -
Multiple Environmental Tests Passed -
Memory Expandable -
Industrial Printer Compatible -
Adhesive
Specifications
-
Physical Features
Model GZY-R9522 Size 95(L) x 22(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-12m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
