GZY-P2309
On Metal RFID Industrial Tag

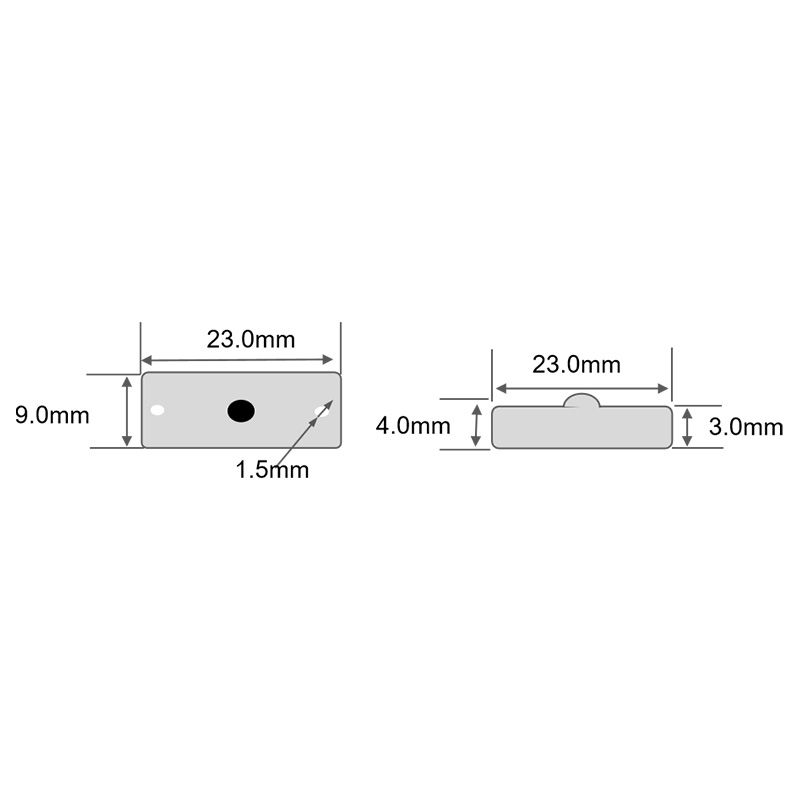

The size is 23×9mm, and the thickness is 3.0mm (including the chip,the thickness is 4.0mm). The maximum reading distance on the metal surface is also 4.5 meters. It has strong anti-interference ability and has passed tests of alcohol, gasoline and drop. It is suitable for metal environments such as tools and molds that require strong adhesion and durability.
/
Micro anti - metal RFID tag
Features
-
Dimensions 23x9mm -
up to 4.5 Meters -
Adhesive & Embedded Installation -
Memory Expandable -
Multiple Environmental Tests -
Suitable for Firearm Management
Specifications
-
Physical Features
Model GZY-P2309
Size 23x9mmxT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 1.3g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-4.5m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
Applications
