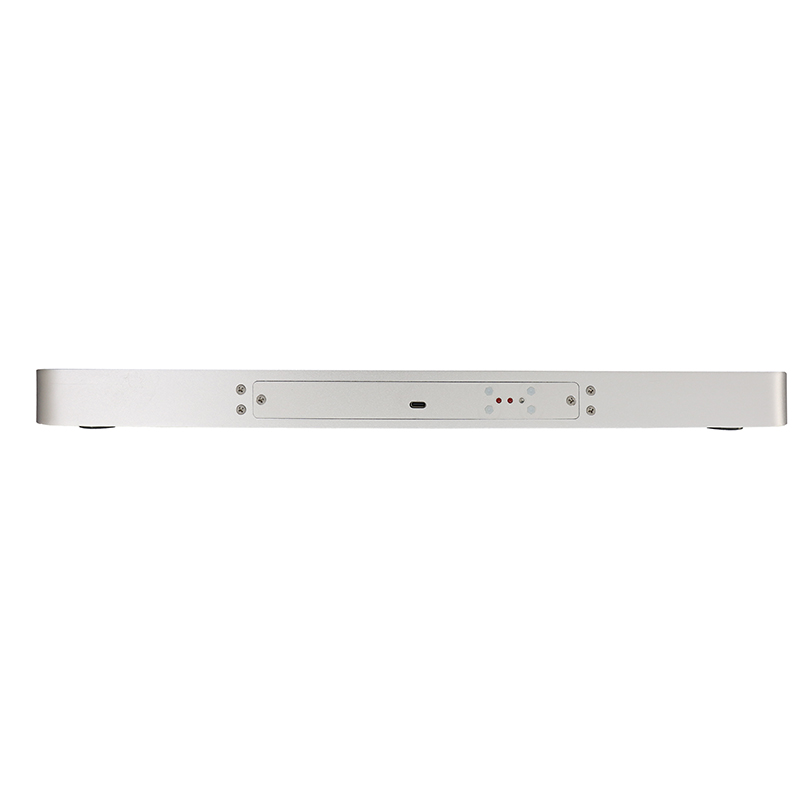

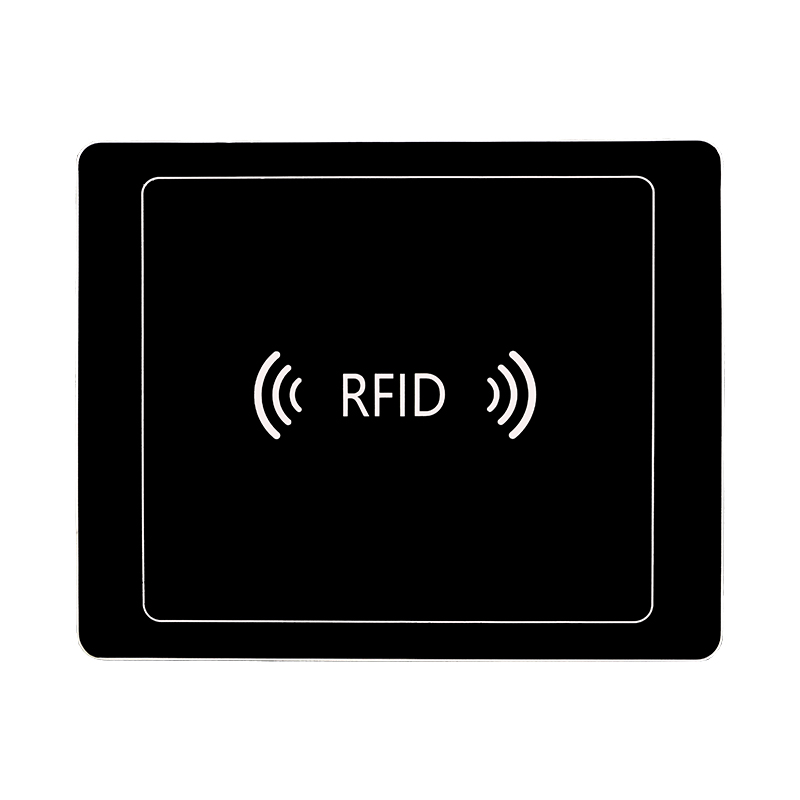

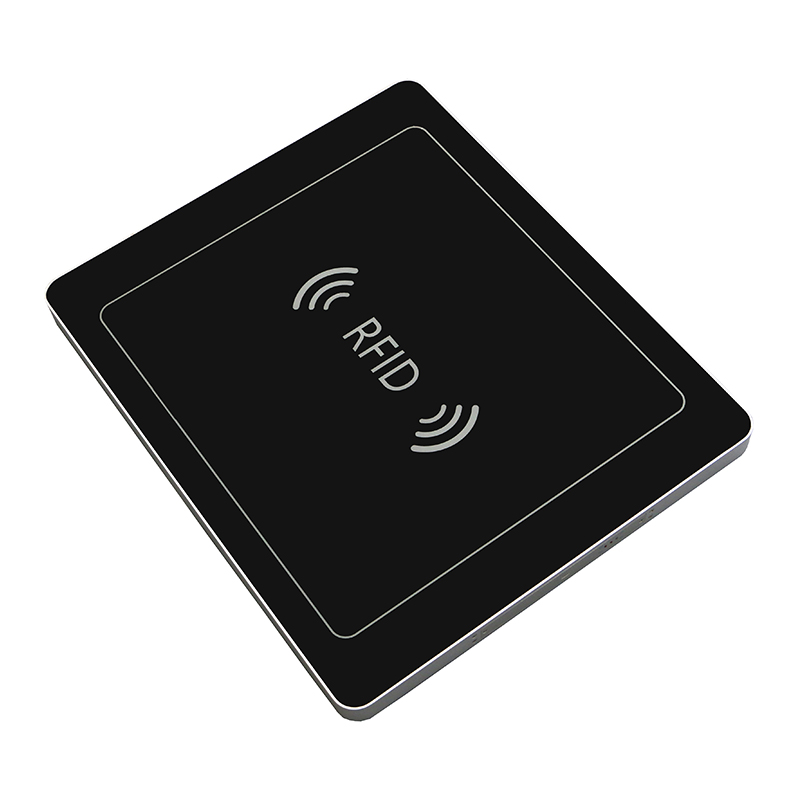

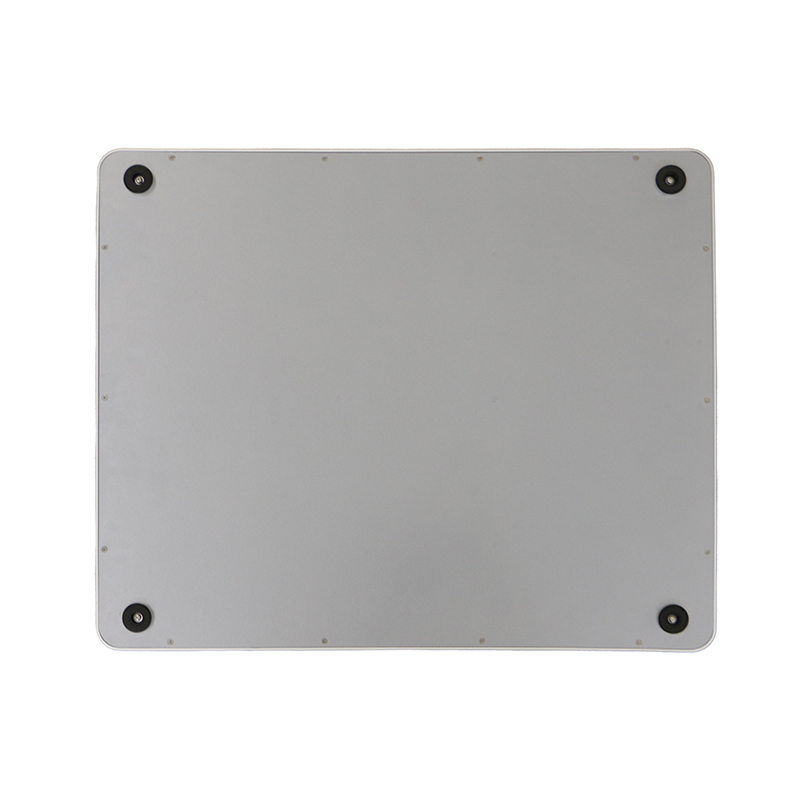

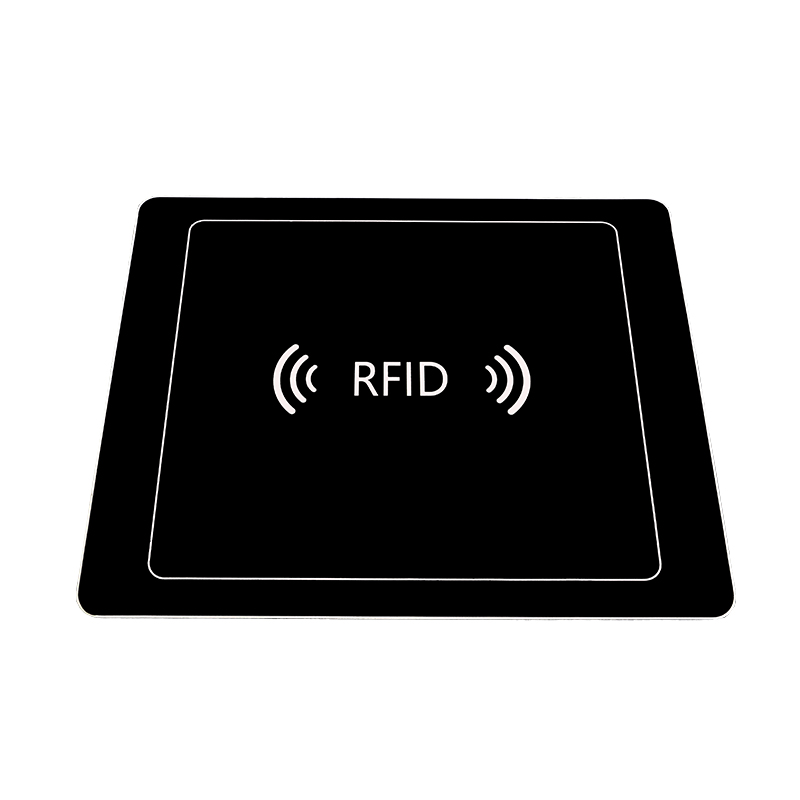

GZY-36
Contactless UHF Desktop Reader
The GZY-36 desktop large tabletop RFID settlement counter features a 600×300mm large tabletop, which supports the batch processing of dense labels. The near-field antenna enables precise reading and writing of up to 50 tags per second within a 500mm radius. The aluminum frame and tempered glass body are protected by IP54 standards, and it supports POE power supply / Bluetooth as an optional feature. It is suitable for scenarios such as warehouse logistics, libraries, and large-capacity label ent
/
USB RFID Desktop Reader/Writer
Features
-
400mm Platform -
33dBm Adjustable -
0-500mm Reading Range -
Anti-Corrosion Tempered Glass Surface -
Optional PoE -
Evidence Management Demo SDK
Specifications
-
RFID Performance
Air interface ISO-18000-6B、ISO-18000-6C（EPC G2） Frequency range 865-868, 902-928MHZ（customized）
Antenna type Near-field antenna
Polarization mode Circular polarization
Communication interface USB
Application software Provide with DLL, support secondary development
Read distance 0~300mm
Write distance 0~100mm
Chip E310 -
Physical Performance
Dimension 370(L)*280(W)*35(H)mm
Fuselage material High-strength aluminum profile frame and tempered glass
Weight 1.5Kg Humidity 5% to 95%, non-condensing
Protection grade IEC IP54 Operation temperature -20 ºC to +60 ºC
Storage temperature -40 ºC to 85 ºC
Heat dissipation Air cooled
Applications
