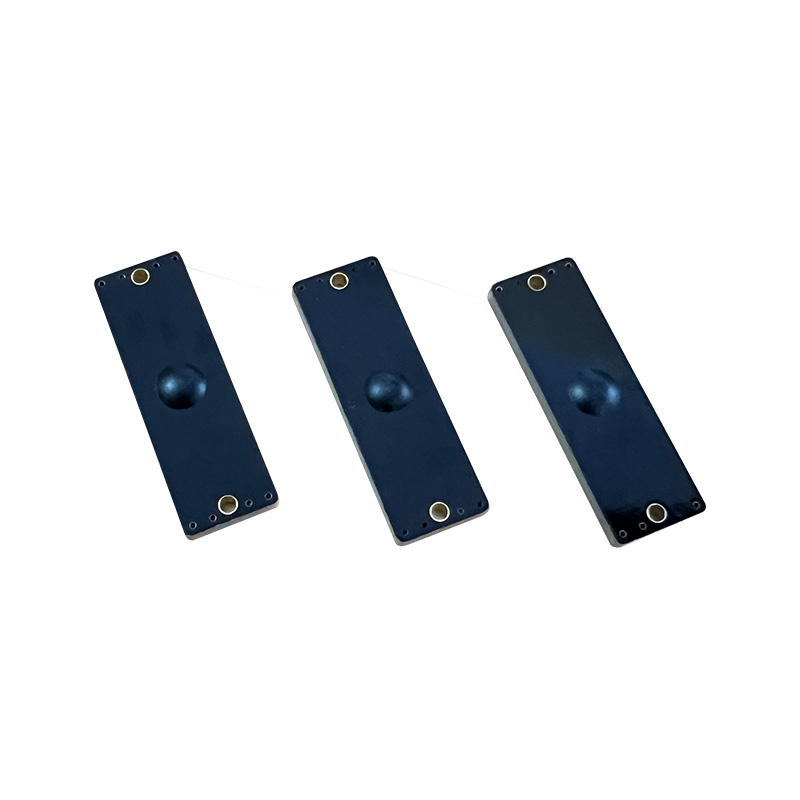

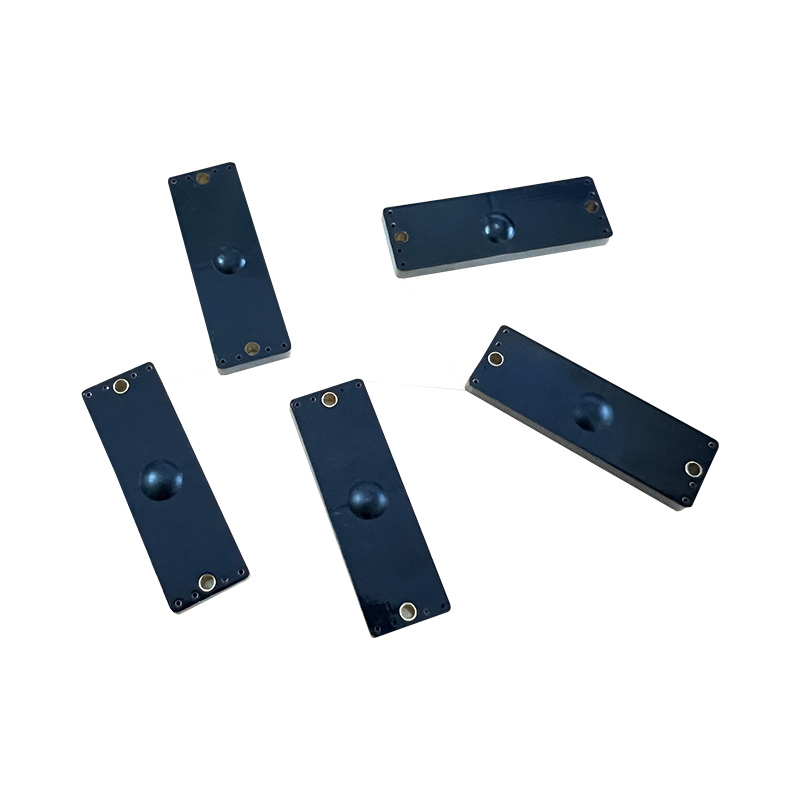

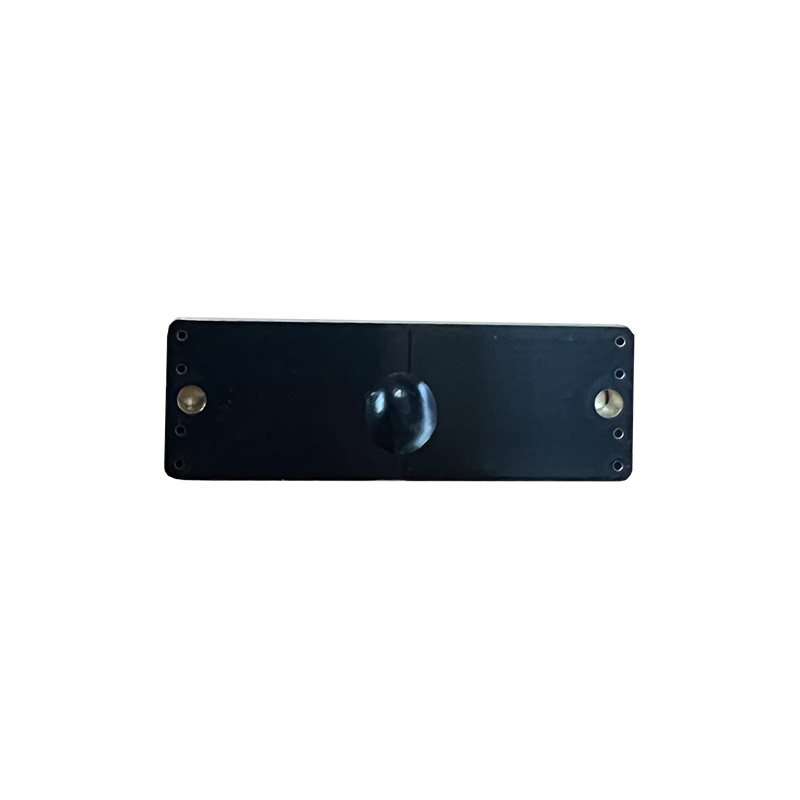

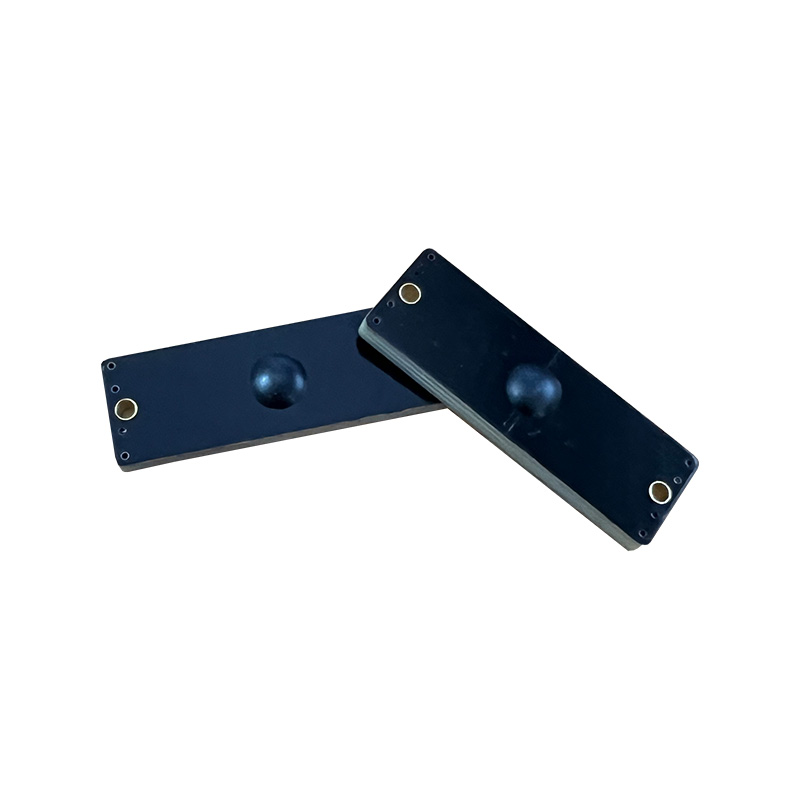

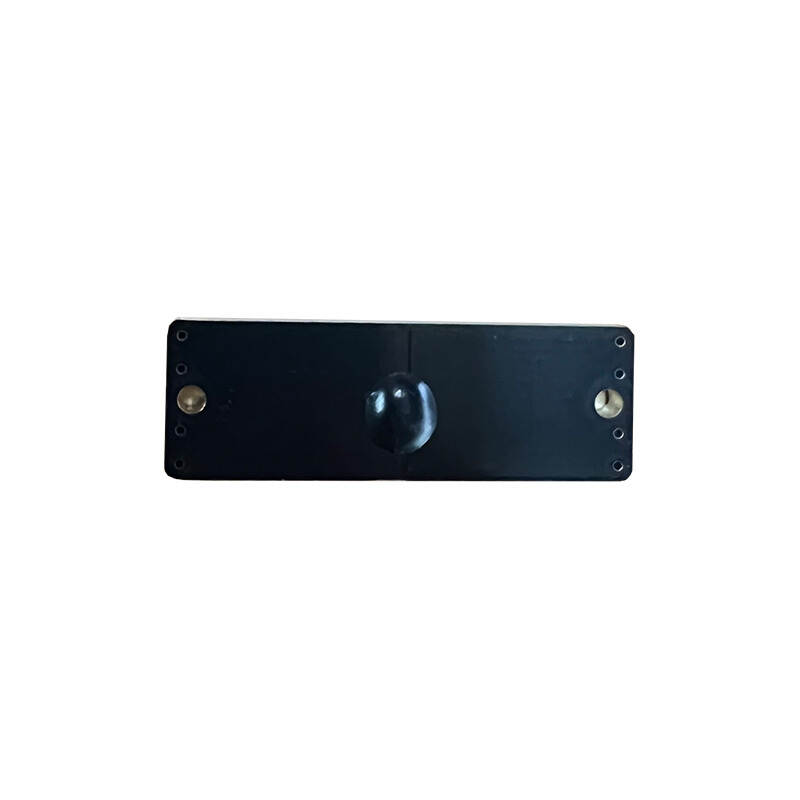

GZY-P3612
Waterproof RFID PCB tag

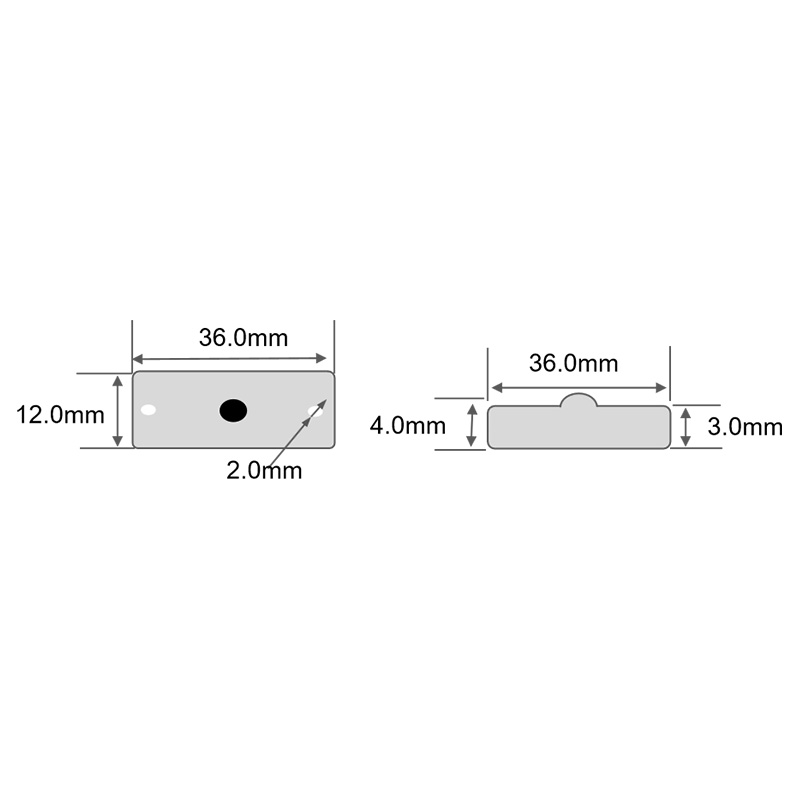

Size: 36×12mm, thickness: 3.0mm (including the chip, it is 4.0mm). It supports three installation methods: back adhesive, embedding and screws. The farthest reading distance reaches 5.0 meters, which is the strongest in the series. It is suitable for large metal equipment, cabinets and other scenarios requiring long-distance batch identification.
/
Micro anti - metal RFID tag
Features
-
Dimensions 36x12mm -
up to 5.0 Meters -
IP68 Protection Rating -
Memory Expandable -
Screws -
Suitable for Medium/Large Equipment
Specifications
-
Physical Features
Model GZY-P3612
Size 36x12xT3.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 3.5g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-4.7m (depend on working environment)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
