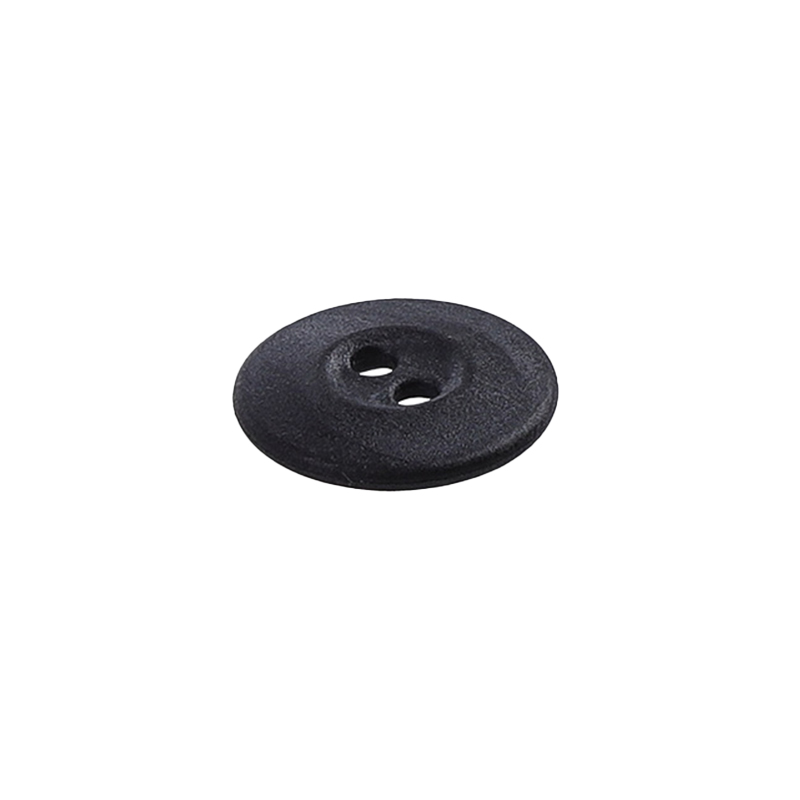

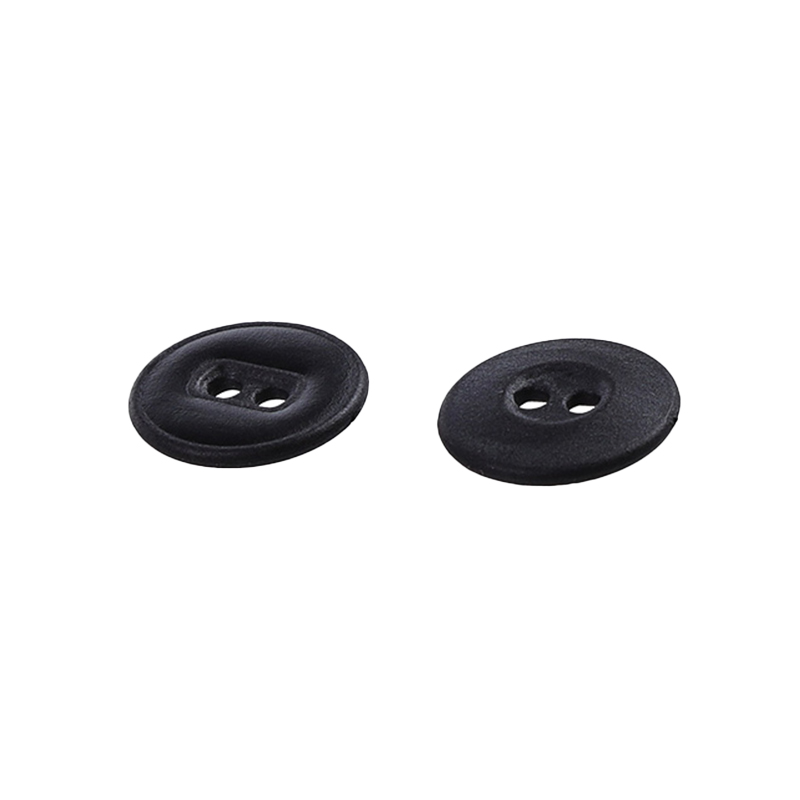

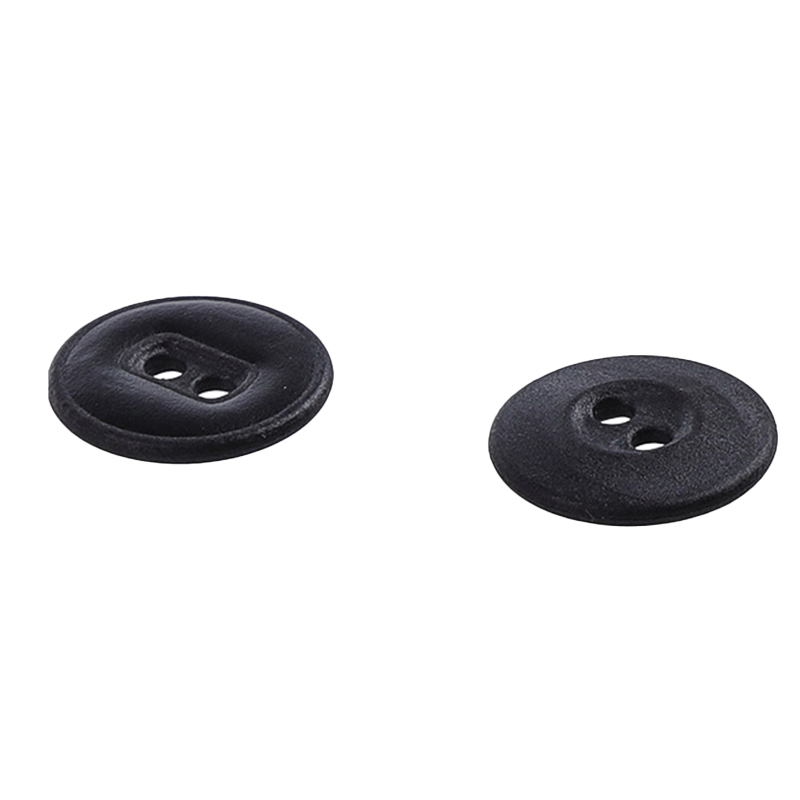

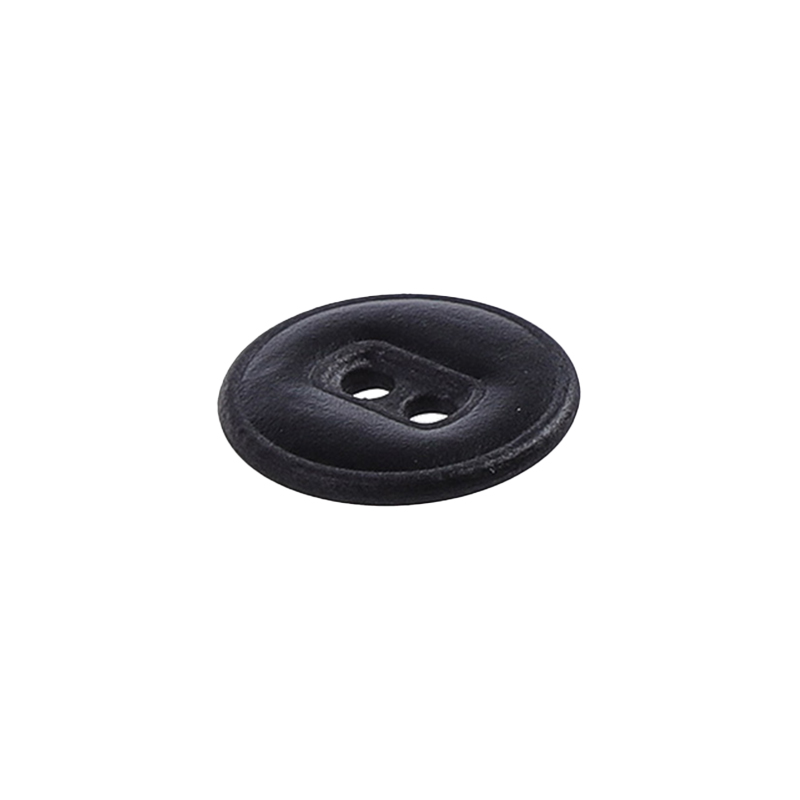

GZY-X1818
UHF RFID Washable Tags for Garments
Designed specifically for industrial washing environments, the circular label has a diameter of 18mm. It is made of PPS material with high-temperature resistance and is installed with double-hole stitching. The maximum reading distance is 1.5 meters. It can withstand 90℃ water washing, 180℃ ironing and 135℃ high-temperature sterilization. It is suitable for the repeated washing tracking of hotel, hospital linen and work clothes.
/
Micro anti - metal RFID tag
Features
-
Secure Two-Hole Stitch Installation -
Maximum Read Range: 1.5 Meters -
High Temperature Resistance: 110℃ -
Withstands 200 Industrial Washes -
IP68 Rating -
Expandable Chip Memory
Specifications
-
Physical Features
Model GZY-X1818
Size 18( Dia ) x 2 . 8 (H)mm
Material PPS
Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods sewing Package details 500Pcs/bags
Weight 2g
Chemicals Normal common chemicals in the washing processes
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 7, Ucode8; M730/Ntag213
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-0.4m (depend on reader performance) Re-Write >100,000times
Data Storage >10 years
Estimated Lifetime 200 washing cycles or 2 years -
Others Features
Application *Management of uniforms；
*Medical apparel management；
*Military clothing management；
*Personnel patrol management.IP Rating IP68
