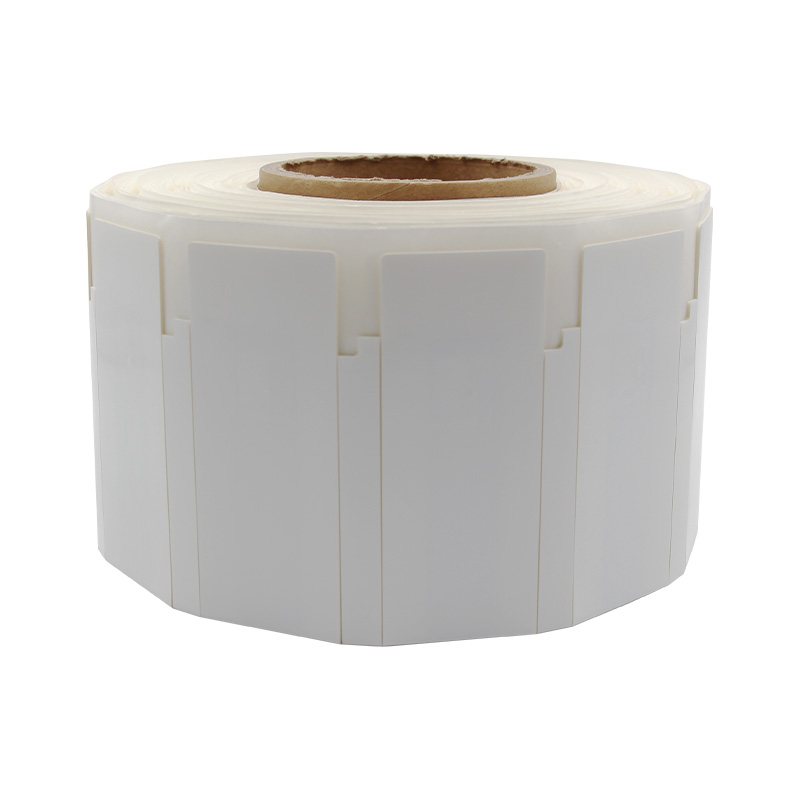

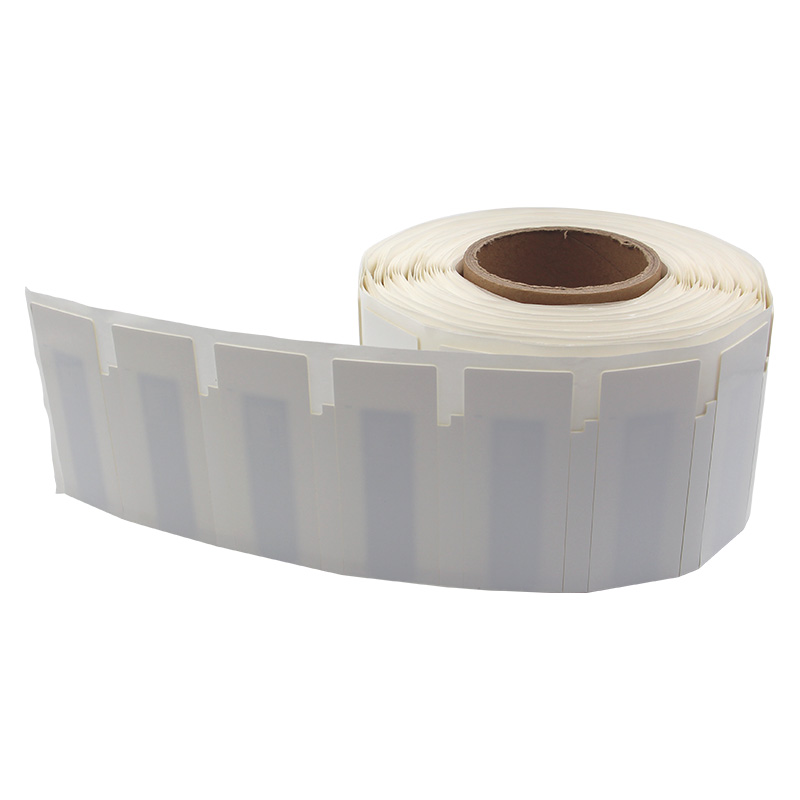

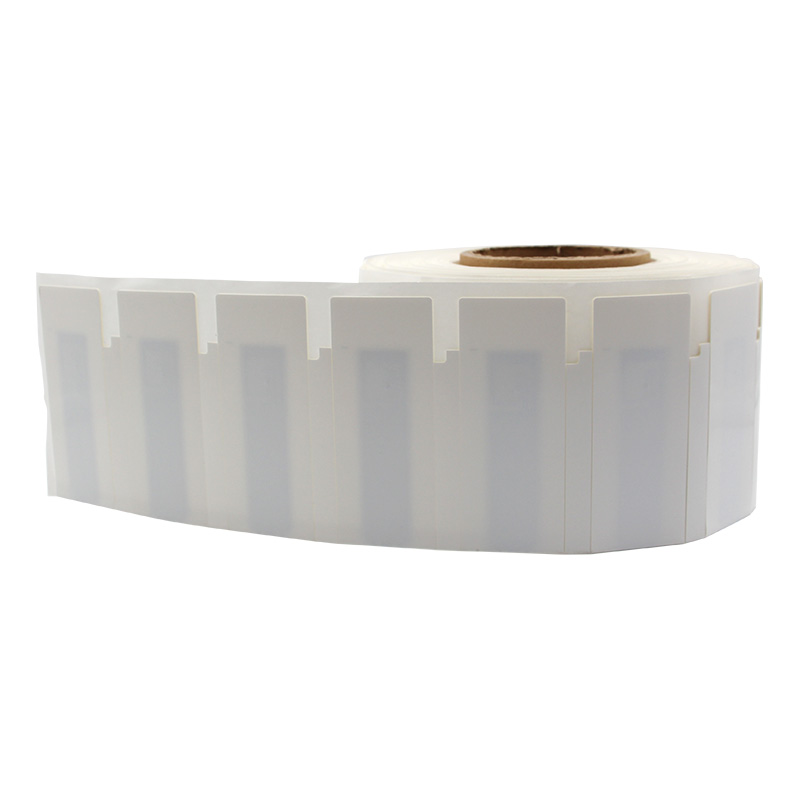

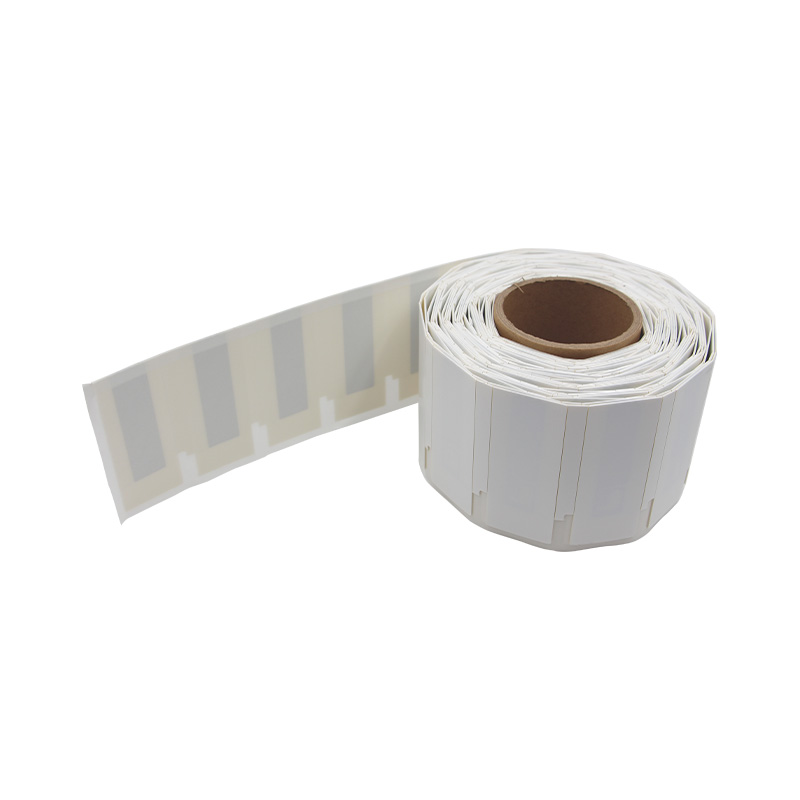

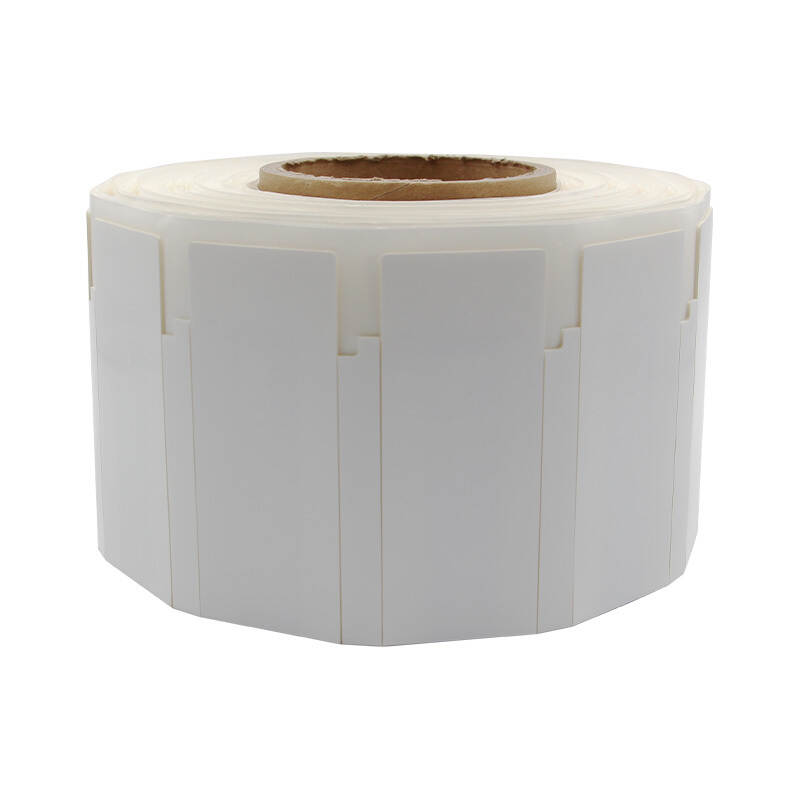

GZY-R10040
Anti-metal labels for warehouse metal rack
This model is the largest in the series, measuring 100×40mm, with a thickness of only 1.0mm. It is a flexible printable label. The farthest reading distance on the metal surface reaches 8.0 meters,it has excellent performance. It is suitable for industrial scenarios where ultra-long distance identification is required, such as large metal assets and warehouse shelves.
/
Micro anti - metal RFID tag
Features
-
Extra-Large 100x40mm -
Metal Surface 8.0 Meters -
IP68 Protection Rating -
Custom Printing Supported -
Ultra-Thin 1.0mm -
Ideal for Large Container Management
Specifications
-
Physical Features
Model GZY-R10040

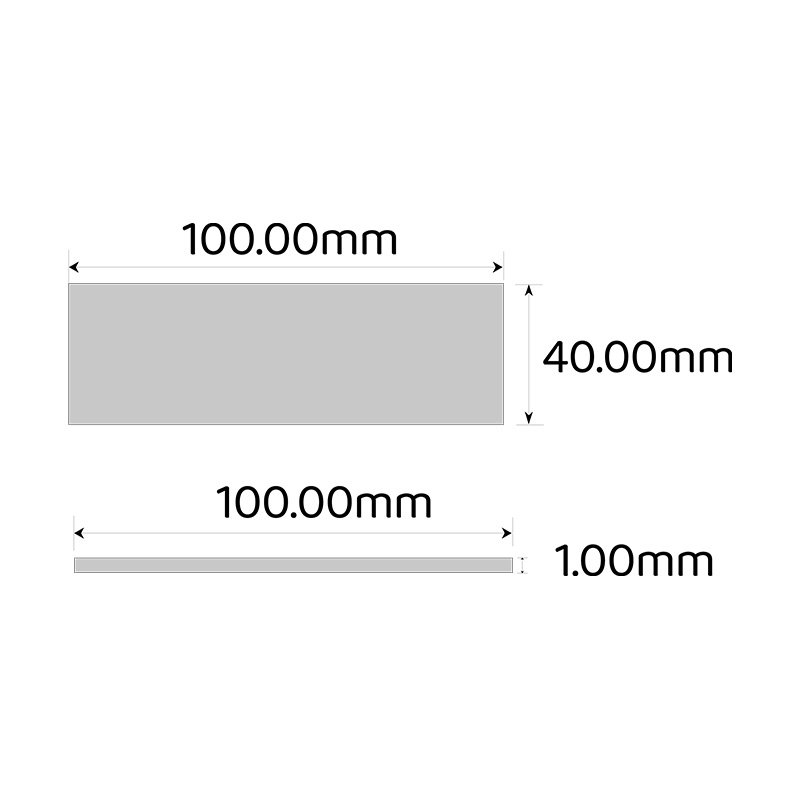

Size 100(L) x 40(W)x 1.0(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-8m, On Metal Surfaces (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
Applications
