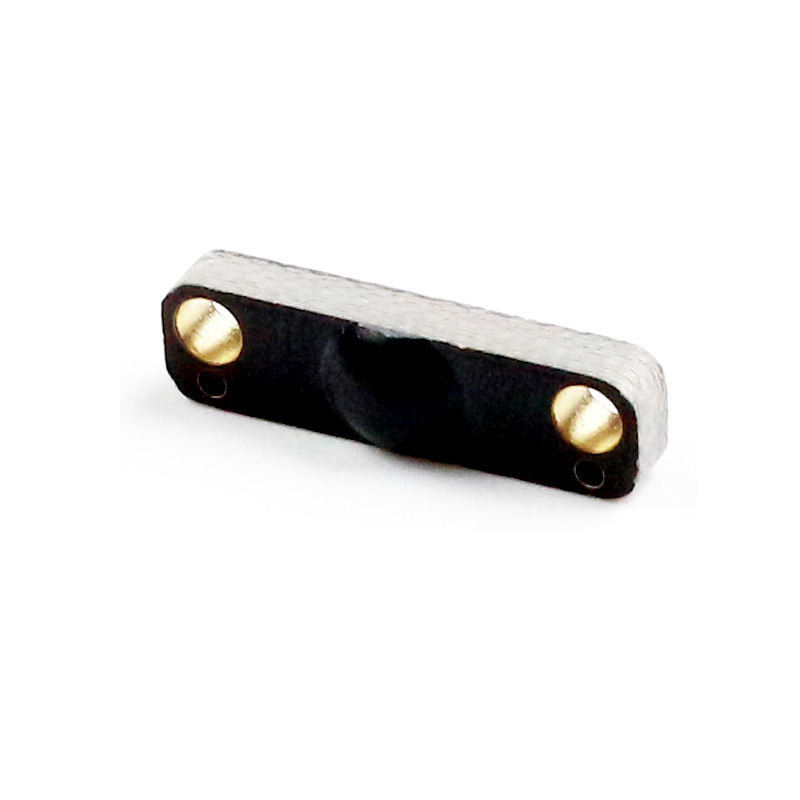

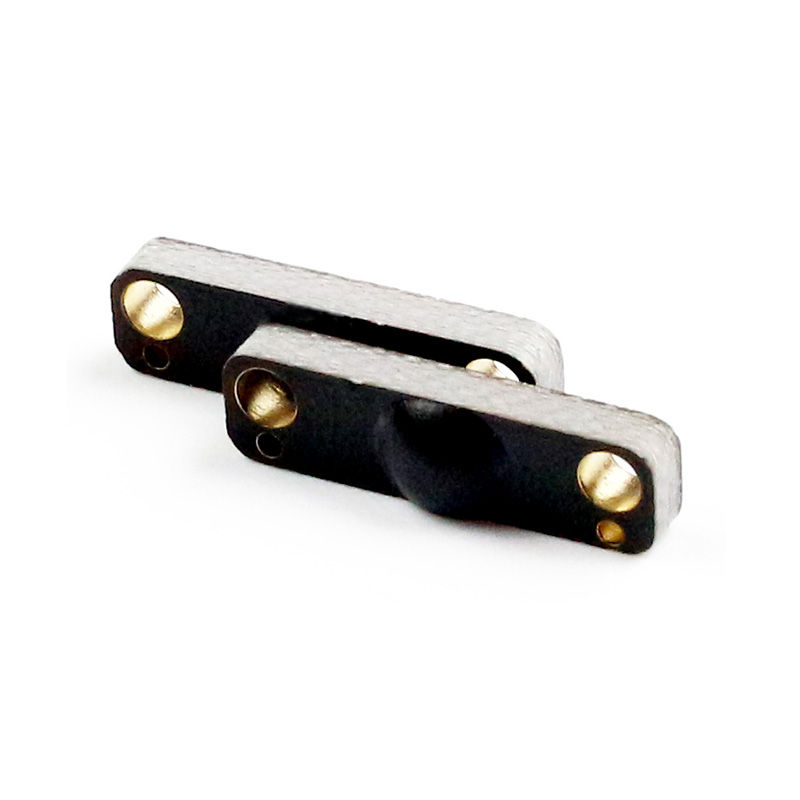

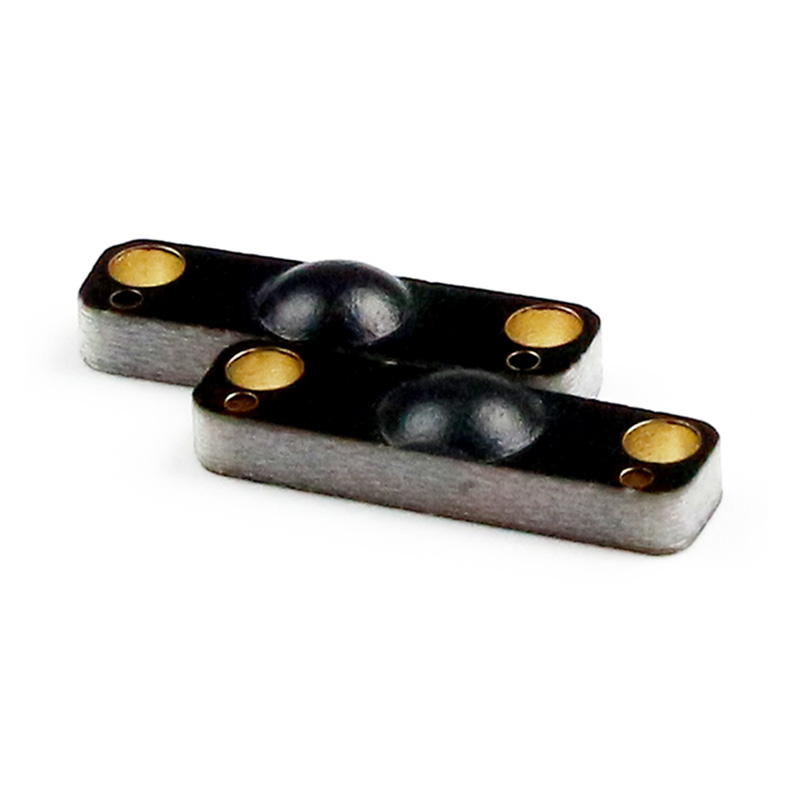

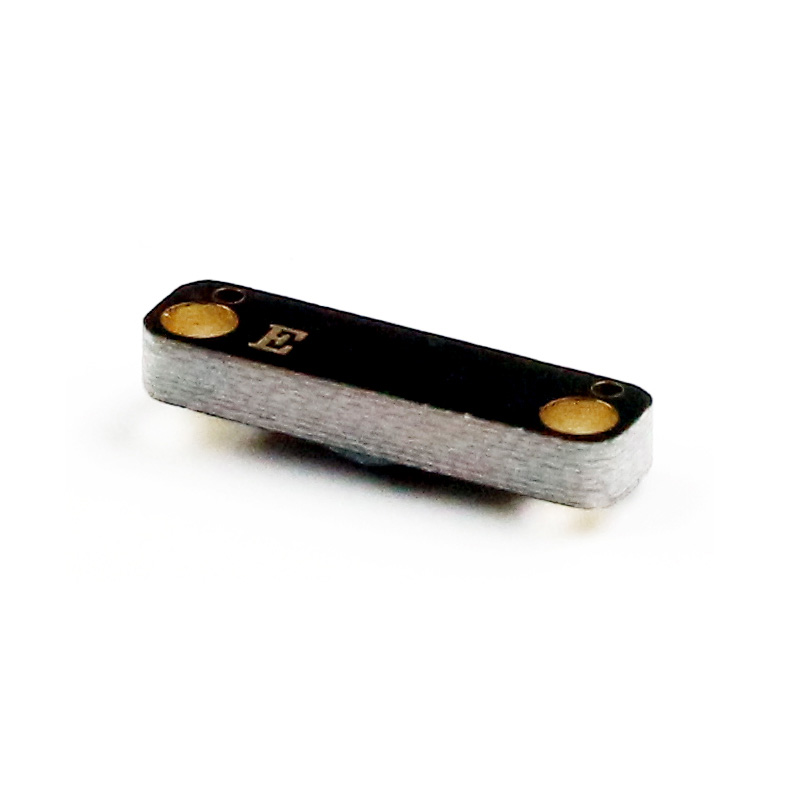

GZY-P1504
RFID PCB Anti-Metal Tool Tag
Size: 15×4×2mm. Specifically designed for metal surfaces. Utilizes UCODE 8/9/M730 chips and supports EPC Gen2 protocol. The reading distance reaches up to 2.1 meters. Features IP68 protection, resistance to high and low temperatures, and chemical corrosion. Suitable for managing small metal devices such as IT enclosures and surgical instruments.
/
Micro anti - metal RFID tag
Features
-
Rectangular Design 15x4mm -
up to 2.1 Meters -
Resistant to Alcohol and Gasoline -
Customizable Options -
Wide Operating Temperature Range -
Flexible Installation
Specifications
-
Physical Features
Model GZY-P1504 Size 15mmx4mmxT2.0mm
Material (FR4) PCB Working Temp -25~+110℃
Storage Temp -40~+85℃
Installation Methods Adhesive or embedded
Package details 500Pcs/bags
Weight 0.7g
Colour Black
-
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, Ucode 9
EPC Memory 96-128bit, TID:64bit
Read distance 0.1-2.1m (depend on reader performance)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc.
IP Rating IP68
