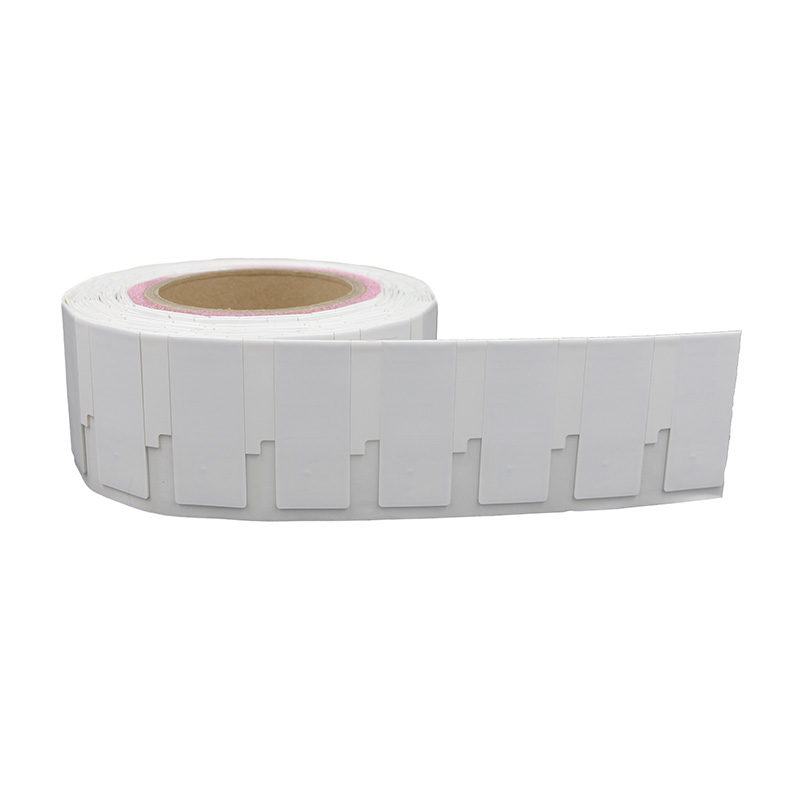

GZY-R8025
UHF RFID Label for asset tracking
The size is 80×25mm, making it a large-sized flexible label. The maximum reading distance on a metal surface is 7.0 meters. It has strong compatibility and supports multiple printing configurations. It is specially designed for scenarios such as large metal assets and industrial shelves that require long-distance and highly reliable identification.
/
Micro anti - metal RFID tag
Features
-
Large Size 80x25mm -
Metal Surface 7.0 Meters -
IP68 Rating -
Memory Expandable up to 480bit -
Ideal for Warehousing & Fixed Assets -
Adhesive
Specifications
-
Physical Features
Model GZY-R8025 Size 80(L) x 25(W)x 1.25(H)mm
Material PET/Aluminum Foil/Foam
Working Temp -40~+85℃
Storage Temp -40~+120℃
Installation Methods 3M Adhesive
Package details 500pcs Per roll/Small box,2000pcs/Carton
Weight 0.85kg/Reel
Colour White -
RFID Features
Protoccol Standard EPC CLASS1 GEN2, ISO 18000-6C
Working Frequency 865-868Mhz, 902-928Mhz(Customized)
Chip Type NXP Ucode 8, 9，Impinj M730
EPC Memory 96-128bit, TID:64bit
Read distance 1-7m, On Metal Surfaces (depend on Environmental conditions)
Re-Write >100,000times
Data Storage >10 years
-
Others Features
Application ● IT Asset Management
● Production line Management
● Medical Equipment Management
● Fixed Asset Management
optional Customization Surface laser, printing LOGO, serial number, Encoding, etc
IP Rating IP68
Support Printer Postek TX3r, SATO CL4NX, Zebra ZT410, etc.
